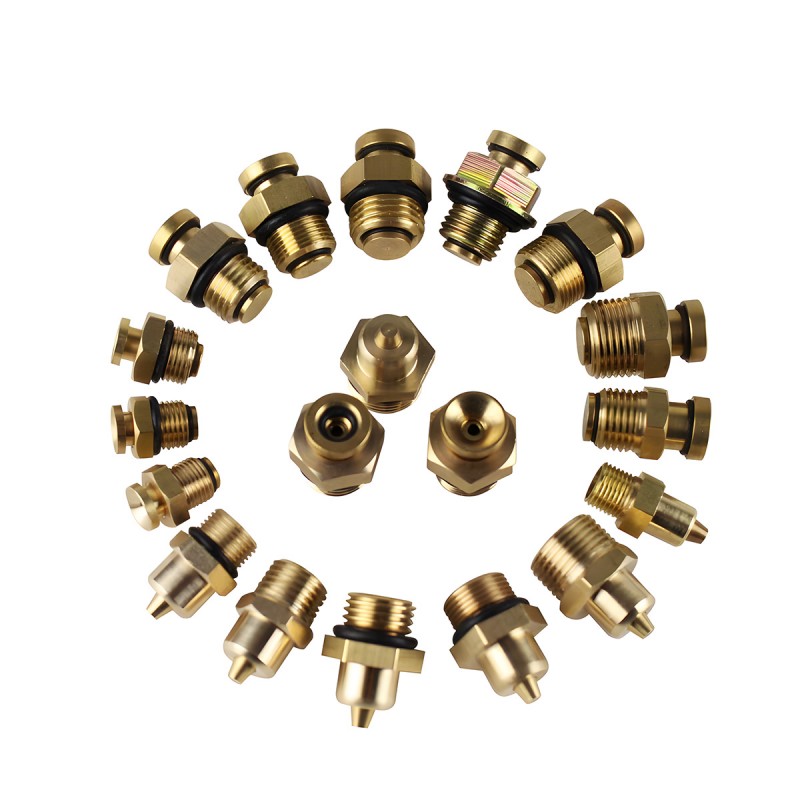

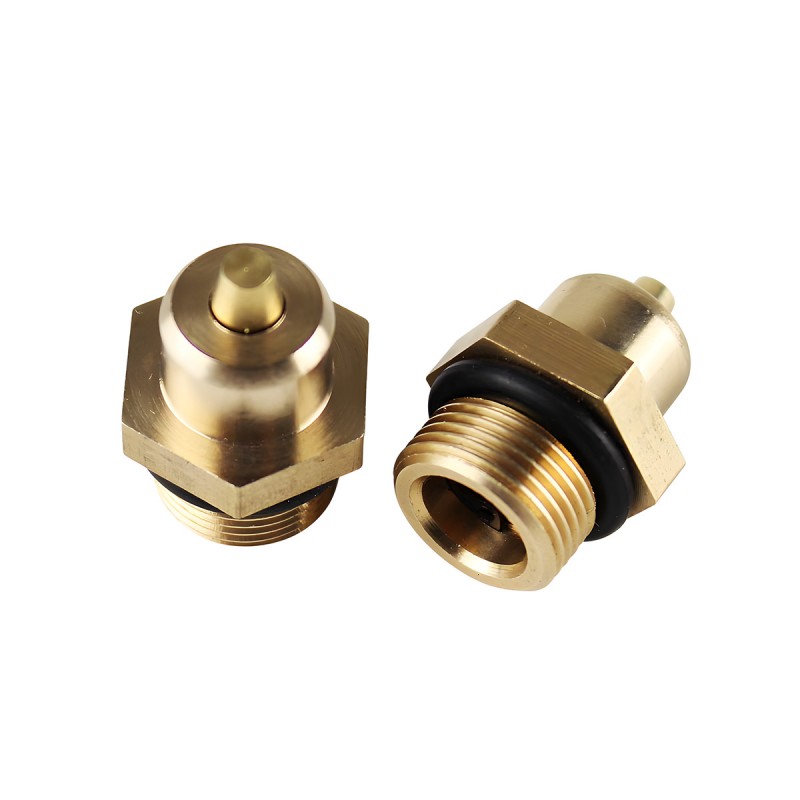

Inflatable Shaft Air Nozzle

The Inflatable Shaft Air Nozzle has good sealing performance, which can effectively prevent air leakage and ensure that the inflatable shaft remains stable in the inflated state. It adopts a quick connector form, which is convenient for connection and disassembly, and can be operated without complex tools. The design of the air nozzle makes the inflation and deflation process simple and easy. There is no need to disassemble any parts on the shaft end side to achieve quick fixation and separation of the paper tube or roll core. The design of the air nozzle of the inflatable shaft accessory supports fast inflation and deflation, which usually takes only a few seconds to complete the operation, greatly improving work efficiency.

Thread specification: M14*1.5
Thread outer diameter size: 13.8mm
Tooth pitch: 1.5mm
Interface type: quick plug-in type, easy to connect with air gun or air source

Printing equipment: such as board exposure machine, flexographic printing machine, gravure machine, trademark printing machine, etc., used to fix the roll core or paper tube.
Packaging equipment: used for winding and unwinding operations to improve packaging efficiency.
Other industrial equipment: such as paper processing, film winding, etc., where the roll core needs to be quickly fixed and released.
