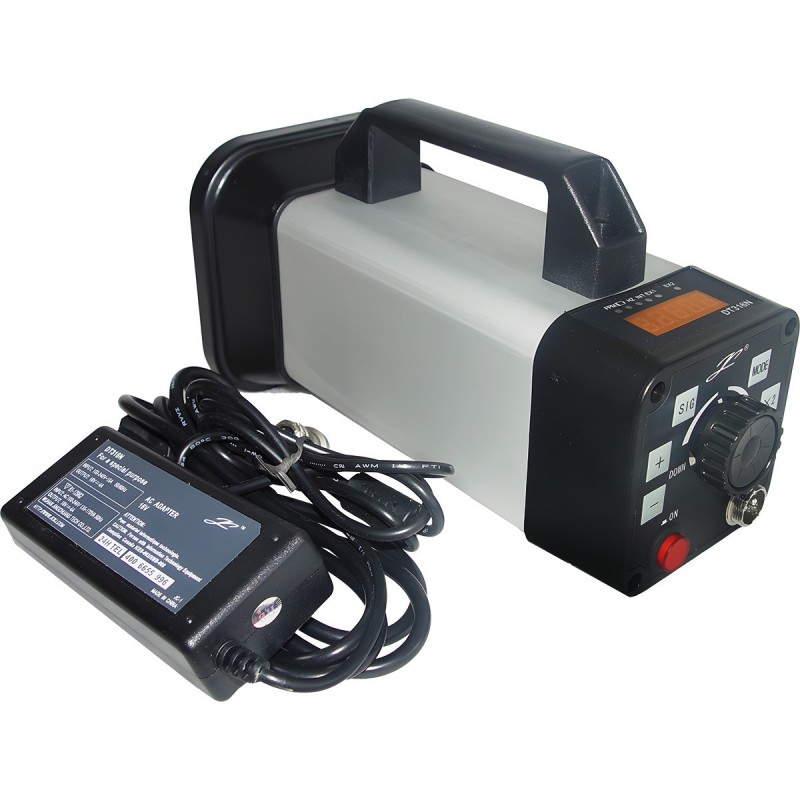

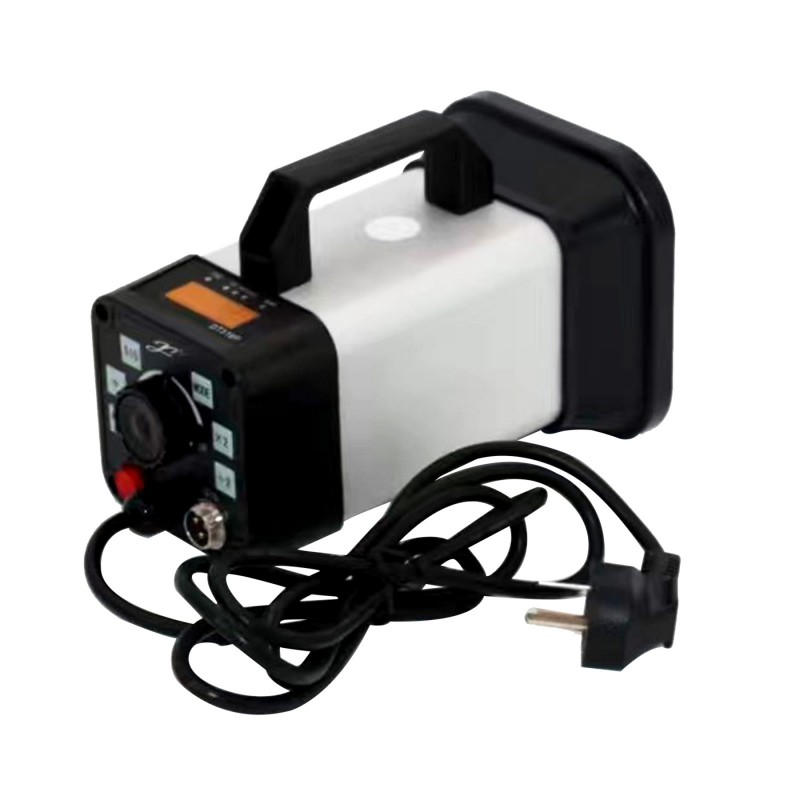

Strobe Light For Printing

In high-speed printing presses, Strobe Light For Printing can synchronize the flash frequency with the printing speed to ensure the accuracy of detection. Printing quality can be detected in real time without stopping the machine, avoiding production interruptions caused by downtime inspection, and significantly improving production efficiency. The strobe light supports adjustment from low frequency to high frequency, which can adapt to printing presses of different speeds. The lamp tube has the characteristics of long life and low energy consumption, which reduces the frequency of bulb replacement and maintenance costs.

1.kechuang Strobe Light For Printing uses imported shuttle encoder knob, which can adjust the frequency accurately and quickly
2. When the external trigger working mode is triggered, it can realize automatic tracking of the pattern
3. Double frequency, double the current working frequency, for rough adjustment
4. Half frequency, halve the current working frequency, for rough adjustment

Total power: less than 45W
Power supply: DC12V (battery pack) /2A/50HZ
Frequency range: internal trigger 1 rpm/Min~18000 rpm/Min
External trigger 1 rpm/Min~30000 rpm/Min
Ambient light illumination: less than 10000 lux
Charging time: <5H
Lamp: original German Heiman, life 10000000 times
External trigger signal range: 5V~12V pulse signal
Dimensions (mm): 235*120(82)*120(82)

Strobe Light For Printing has become an important tool for quality control and high-speed production in the modern printing industry due to its advantages of high brightness, stability, and wide frequency adjustment range. In scenarios such as high-speed printing, equipment debugging, and material testing, strobe lights can significantly improve production efficiency and printing quality operating costs.
