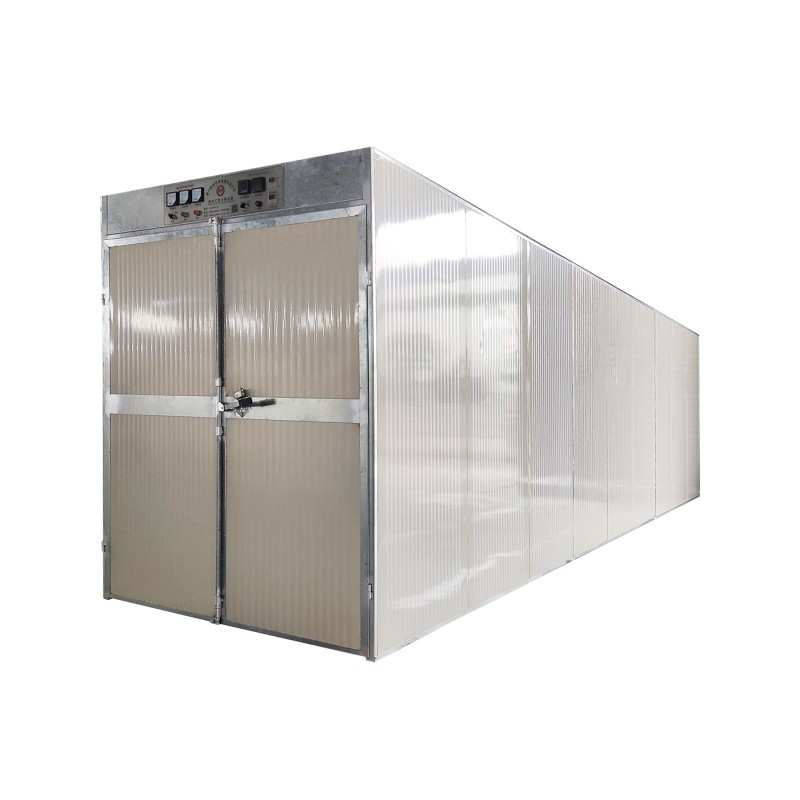

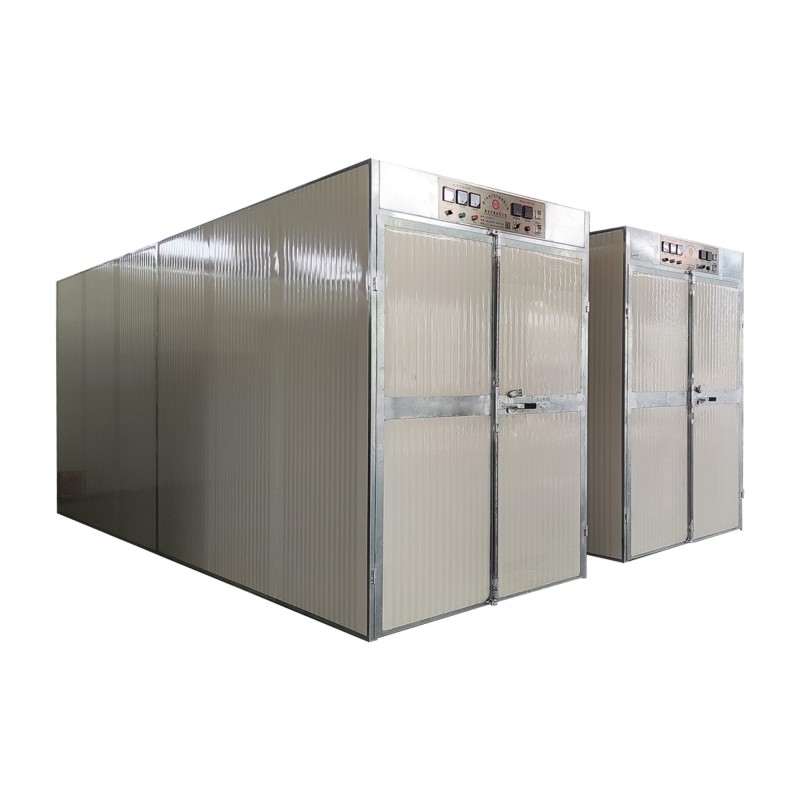

Heavy-Duty Curing Chamber

The body of the Heavy-Duty Curing Chamber is made of a solid metal frame and thick insulation materials. These materials have good insulation performance and structural strength, can withstand large weight and pressure, ensure the temperature inside the curing chamber is stable, and reduce heat loss. The sealing of the Heavy-Duty Curing Chamber is also very good to prevent outside air from entering and affecting the curing effect. Equipped with a reasonable air duct design and circulating fan. The circulating fan can blow hot air evenly to every corner of the curing chamber, so that the material can be cured in a uniform temperature environment, avoiding product quality problems caused by uneven temperature. It has complete safety protection functions, such as over-temperature protection, leakage protection, overload protection, etc. When the temperature inside the curing chamber exceeds the set safety range, leakage or overload occurs, the control system will automatically cut off the power supply and send out an alarm signal to remind the operator to deal with it in time to ensure the safety of equipment and personnel.

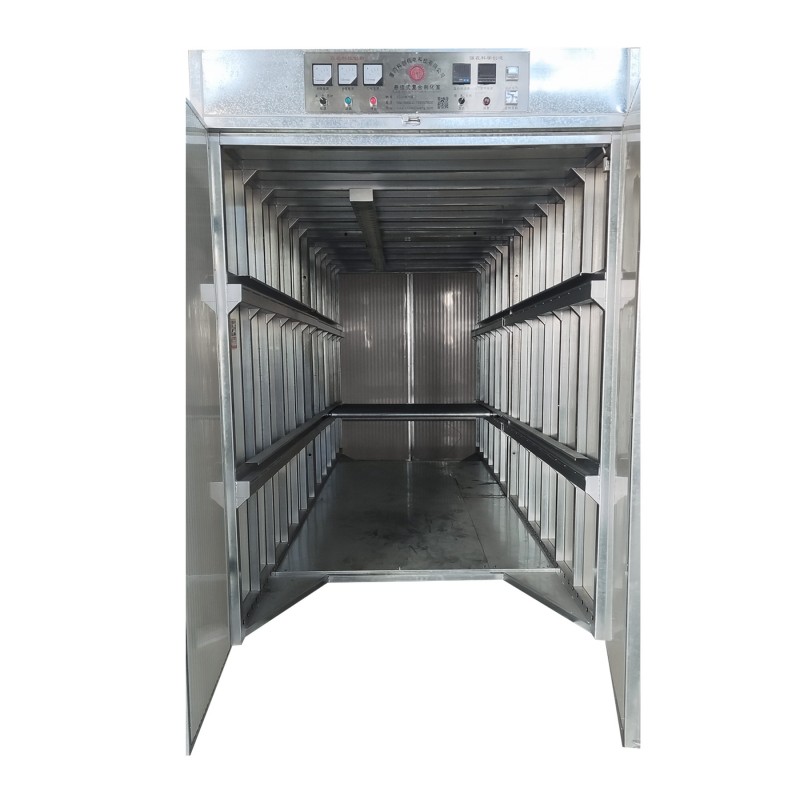

● Number of layers: two layers, C-type heavy-duty track, the lowest film roll center is 650mm away from the ground. Track spacing is 850mm.
● Use temperature: 40-80℃ adjustable, temperature error ±2℃.
● Circulating air system: 1 550W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
● Exhaust system: 1 180W exhaust fan, two sets of time control (arbitrary setting: how long to exhaust, how long to stop).
● Heating method: 1 set of electric heating, multi-tube mode (a total of 12), electric heating 9KW+9KW=18KW, divided into high and low temperatures.
● The largest film roll placed: ￠800mm, weight 400kg, width 1200mm.
● Box bracket steel: 50*50 and 50*100 galvanized pipes welded together, 480mm interval, heavy fixed mode.
● Box insulation material: 50mm rock wool color steel sandwich panel.
● Material entry and exit method: forward and backward, easy to open and close the door. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
● Electrical control: Schneider low-voltage electrical appliances, ultra-high temperature protection, timed shutdown, timed exhaust, phase loss protection, overload protection.
● Random accessories: 1. 20 threading rollers (2-inch galvanized pipes, 4 6305 bearings each) 2. 1 bottle of glass glue.
● Specifications: Appearance: length 5890*width 1500*height 2500mm, indoor: length 5700*width 1200*height 2200mm. (Customized size can be made according to customer needs)
● Total power: 19KW (380V, three-phase five-wire, using national standard cable: 3*10+2*4, must be reliably grounded).

Heavy-Duty Curing Chamber is mainly used in the production of plastic composite products. These products usually need to be cured under certain temperature and time conditions to improve their physical and chemical properties.
