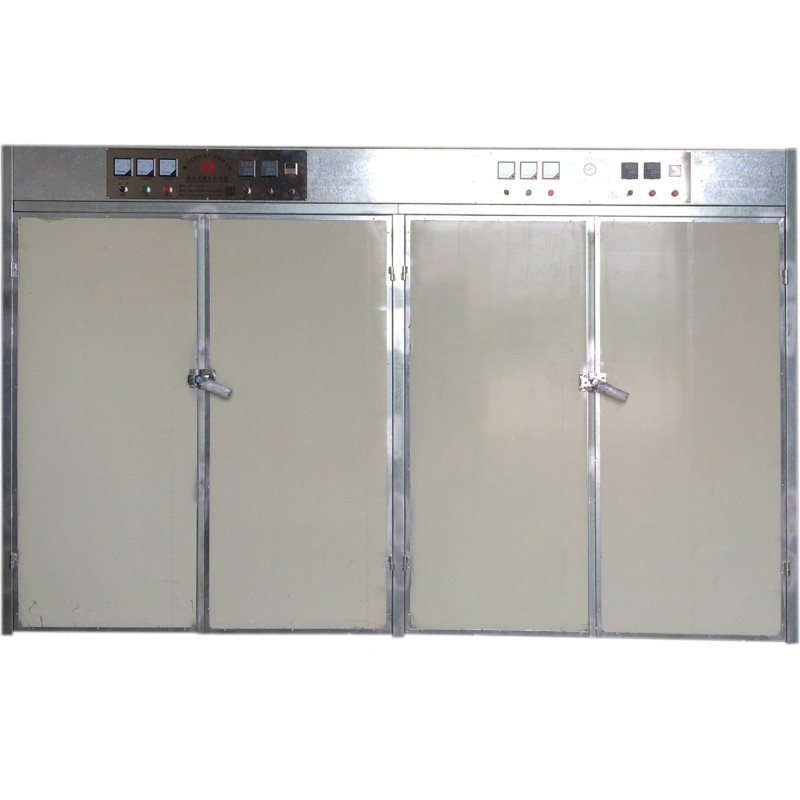

Dual-Passage Curing Chamber

Dual-Passage Curing Chamber can be customized: dual-channel single system, dual system, standard or heavy-duty, using rock wool color steel sandwich panels, which not only ensures good thermal insulation performance, reduces heat loss, but also has certain strength and stability. Dual-Passage Curing Chamber adopts a three-dimensional shelf design to make full use of space and increase material storage capacity. It is equipped with tracks and galvanized pipe threading shafts inside to facilitate the placement and transportation of materials such as film rolls. Equipped with an efficient heating device, it can quickly heat up and maintain a constant temperature, so that the temperature in the curing chamber is evenly distributed, ensuring that the material is fully cured at the set temperature. The dual-channel curing chamber has a complete safety protection system to ensure the safety of equipment and personnel, so that users can be more assured!

● Maximum film roll: ￠800mm, weight 400kg, width 1180mm.
● Specifications: Appearance: length 5890*width 2950*height 2500mm, indoor: length 5700*width 1180x2*2200mm. (Customizable according to customer needs)
● Total power: 25KW (380V, three-phase five-wire, using national standard cable: 3*16+2*10, must be reliably grounded).

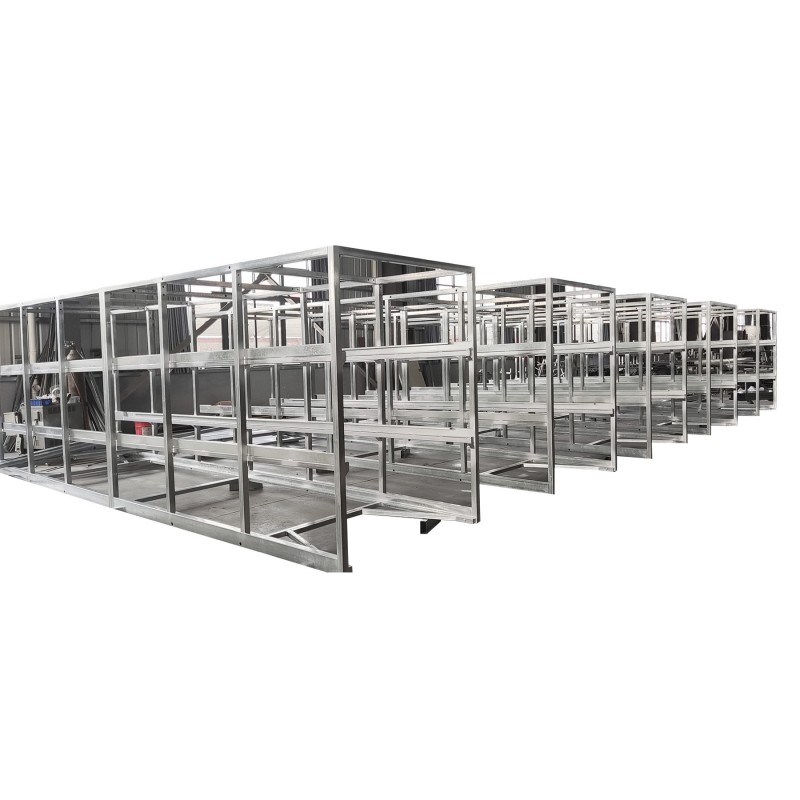

● Box support steel: 50*50 and 50*100 galvanized pipes welded together, 480mm interval, dual-channel single system heavy-duty semi-disassembly mode.
● Box insulation material: 50mm rock wool color steel sandwich panel.
● Material entry and exit method: front and back, easy to open and close the door. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
● Circulating air system: 1 1100W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
● Exhaust system: 1 180W exhaust fan, two sets of time control (arbitrary setting: how long to exhaust, how long to stop).
● Heating method: 1 set of electric heating, multi-tube mode (15 in total), electric heating 9KW+15KW=24KW, divided into high and low temperatures.
● Electrical control: Schneider low-voltage electrical appliances, ultra-high temperature protection, timed shutdown, timed exhaust, phase loss protection, overload protection.
● Random accessories: 1. 40 threading rollers (2-inch galvanized pipes, 4 6305 bearings each) 2. 1 bottle of glass glue.
● Number of layers: two layers, C-type heavy-duty track, the lowest film roll center is 650mm from the ground. Track spacing is 850mm.
● Using temperature: 40-80℃ adjustable, temperature error ±2℃.

Dual-Passage Curing Chamber is mainly used for the curing treatment of plastic composite film, food packaging film, medicinal packaging film, chemical packaging roll film, etc., so that the composite film can achieve the best composite strength and improve the quality and performance of packaging.
