Ultra-Heavy-Duty Curing Chamber

Ultra-Heavy-Duty Curing Chamber has complete safety protection functions, such as over-temperature protection, leakage protection, overload protection, and a complete alarm system. The box support is welded with sturdy galvanized pipes, and the box material is made of rock wool color steel sandwich panels, which have good thermal insulation performance and structural strength, can withstand large weight and pressure, ensure the temperature inside the curing chamber is stable, and reduce heat loss. The door of Ultra-Heavy-Duty Curing Chamber is large and sturdy to facilitate the entry and exit of heavy materials. The door has good sealing performance and is equipped with door locks and other devices to ensure that the door can be tightly closed during the curing process to maintain the stability of the environment inside the curing chamber.

● Maximum film roll: ￠700mm, weight 600kg, width 1580mm.
● Box support steel: 50*50 and 50*100 galvanized pipes welded, 480mm apart, ultra-heavy fixed.
● Box insulation material: 50mm rock wool color steel sandwich panel.

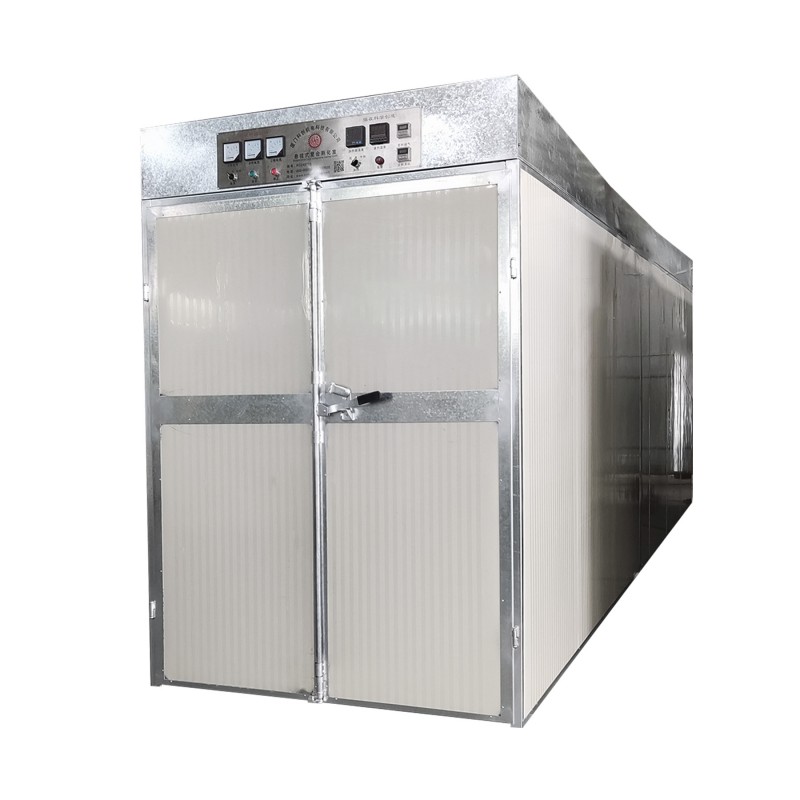

● Material in and out method: front and back, easy to open and close. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
● Circulating air system: 1 1100W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
● Exhaust system: 1 180W exhaust fan, two sets of time control (arbitrary setting: how long to exhaust, how long to stop).
● Heating method: 1 set of electric heating, multi-tube mode (a total of 15), electric heating 9KW+15KW=24KW, divided into high and low temperatures.
● Electric control: Schneider low-voltage electrical appliances, ultra-high temperature protection, timed exhaust, timed shutdown, phase loss protection, overload protection.
● Random accessories: 1. 20 threading rollers (2-inch galvanized pipes, 4 6205 bearings with steel sleeves each).

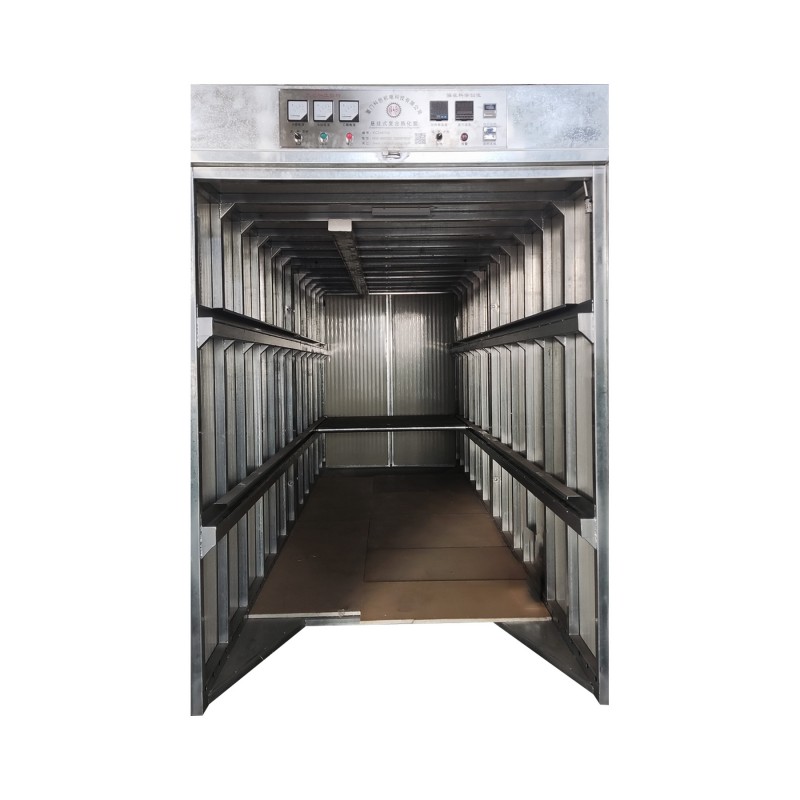

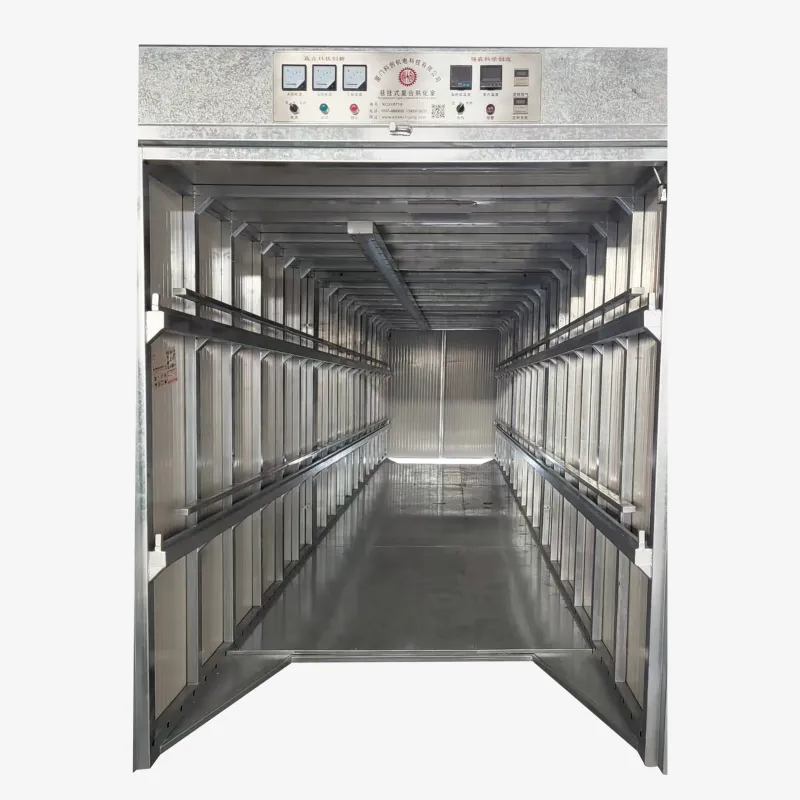

● Number of layers: three layers, ultra-heavy track, the lowest film roll center is 560mm from the ground. Track spacing is 750mm, no slope.
● Use temperature: The use temperature of Ultra-Heavy-Duty Curing Chamber can be adjusted from 40-80℃, with a temperature error of ±2℃.
● The maximum film roll placed: ￠700mm, weight 600kg, width 1580mm.
● Specifications: Appearance: length 7500*width 1900*height 3000, indoor: length 7400*width 1580*height 2700. (Size can be customized)
● Total power: 25KW (380V, three-phase five-wire, using national standard cable: 3*10+2*6, must be reliably grounded).

Ultra-heavy curing chamber is primarily used for curing plastic laminated films. It facilitates complete reaction between the main agent and curing agent within the film, enhancing bond strength and improving film performance. Widely applied in food packaging, pharmaceutical packaging, and related fields.

The chamber's high-strength rack system enables efficient handling of ultra-heavy material batches. This system provides not only physical support but also forms the foundational basis for seamless curing processes. Beyond load-bearing capacity, rack stability is equally critical. The design incorporates optimized weight distribution, anti-tipping mechanisms, and deformation control under sustained loading—ensuring enduring structural integrity. These features guarantee operator safety and material integrity throughout curing.

Designed for exceptional load capacity and long-term stability, the ultra-heavy curing chamber is ideal for processing heavy materials or demanding industrial applications. Material selection prioritizes thermal insulation, corrosion resistance, and structural strength. For specific requirements regarding temperature control, dimensions, or specialized materials, contact professional manufacturer Kechuang for tailor-made solutions.
