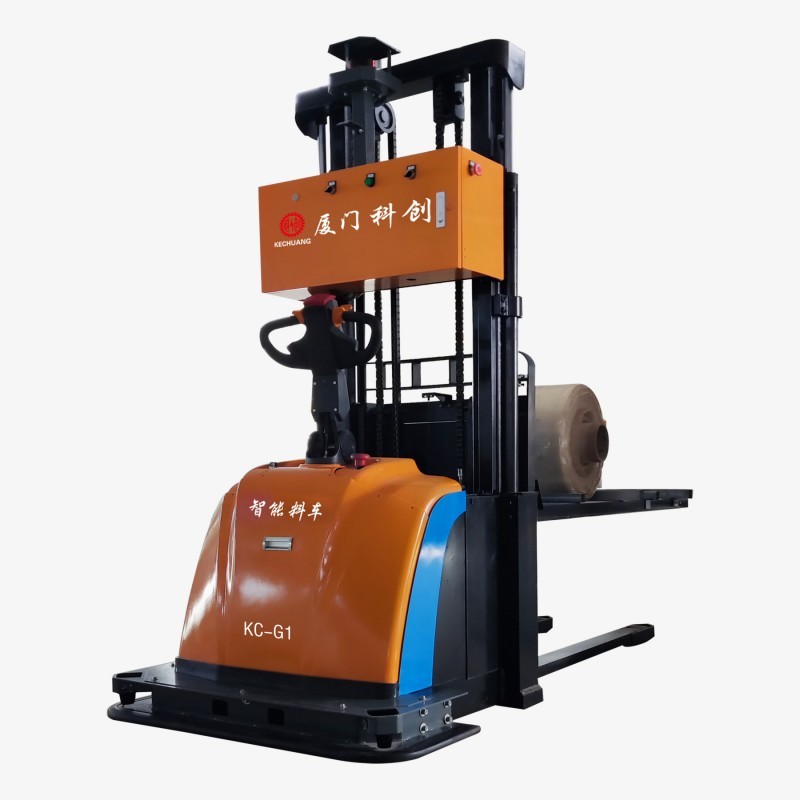

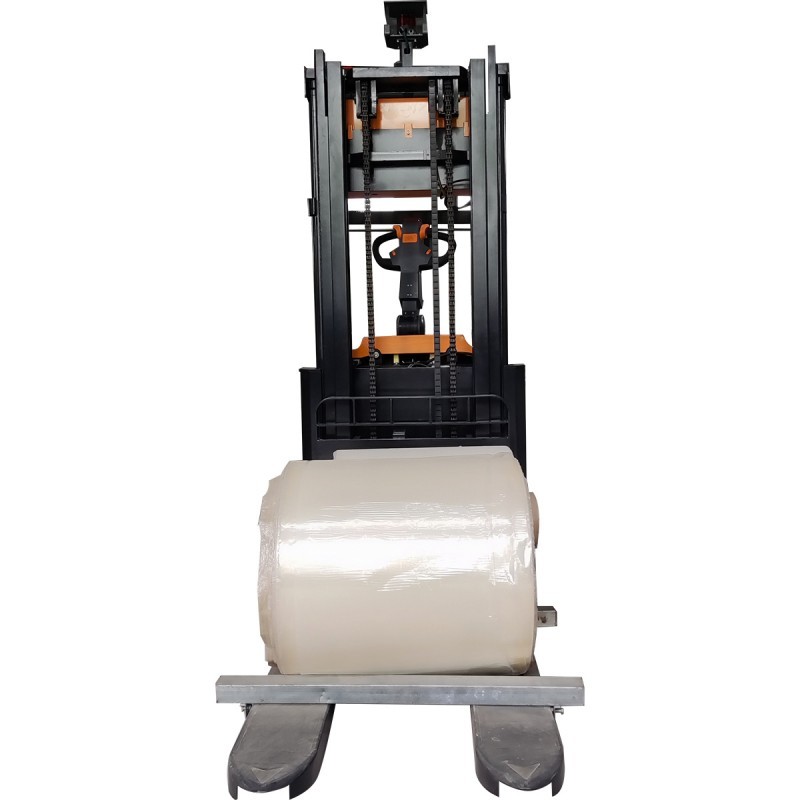

AGV Intelligent Forklift
Xiamen Kechuang Electromechanical Technology Co., Ltd.'s AGV Intelligent Forklift is an intelligent handling device that combines traditional forklift functions with modern automation technology. It can autonomously complete the loading, unloading, handling and stacking of goods without manual operation. According to the path range constraints, precise motion control is achieved to ensure safe and efficient operations.
Our AGV Intelligent Forklift is professionally designed based on the ordinary AGV intelligent car. It is safe, practical, efficient and durable.
AGV intelligent forklift combines with MES system management, and can interact intelligently with printing machines, laminating machines, curing rooms, slitting machines, warehouses, etc. to complete tasks such as handling, loading and unloading, and weighing. By constantly memorizing the operating environment, AGV intelligent forklift can identify and adapt to environmental changes, improve operating efficiency and stability, realize unmanned operation, and reduce labor costs.
AGV intelligent forklift combines with MES system management, and can interact intelligently with printing machines, laminating machines, curing rooms, slitting machines, warehouses, etc. to complete tasks such as handling, loading and unloading, and weighing. By constantly memorizing the operating environment, AGV intelligent forklift can identify and adapt to environmental changes, improve operating efficiency and stability, realize unmanned operation, and reduce labor costs.
Parameters
Dimensions L*W*H (mm): 2887*1120*2330
Rotation radius (mm): 2650 Lifting height (mm): 3000
Chassis ground clearance (mm): 40
Fork width (mm): 680
Lifting and rotation method: electric hydraulic
Weight (Kg): 1400 Rated load (Kg): 1600
Navigation method: laser navigation Contour lights: 4
Laser obstacle avoidance: left and right obstacle avoidance laser radar
Fork obstacle avoidance: fork photoelectric obstacle avoidance
Collision strip detection: rear rubber collision strip detection
Emergency stop button: left/right emergency stop button
Rated operating speed (no load) (mm/s): 1200
Stop angle accuracy (°): ± 1
Stop position accuracy (mm): ± 10
Battery type: lithium iron phosphate battery
Battery voltage: 24V
Working time under rated working conditions (h): 8
Charging time (h): 2.5 hours
Rotation radius (mm): 2650 Lifting height (mm): 3000
Chassis ground clearance (mm): 40
Fork width (mm): 680
Lifting and rotation method: electric hydraulic
Weight (Kg): 1400 Rated load (Kg): 1600
Navigation method: laser navigation Contour lights: 4
Laser obstacle avoidance: left and right obstacle avoidance laser radar
Fork obstacle avoidance: fork photoelectric obstacle avoidance
Collision strip detection: rear rubber collision strip detection
Emergency stop button: left/right emergency stop button
Rated operating speed (no load) (mm/s): 1200
Stop angle accuracy (°): ± 1
Stop position accuracy (mm): ± 10
Battery type: lithium iron phosphate battery
Battery voltage: 24V
Working time under rated working conditions (h): 8
Charging time (h): 2.5 hours
Application
kechuang AGV Intelligent Forklift has become an important tool in modern industry and logistics with its technical advantages such as intelligent navigation, unmanned driving, and strong environmental adaptability. It is widely used in manufacturing, warehousing and logistics. It not only improves operating efficiency, but also reduces labor costs and safety hazards, and promotes the development of automation and intelligence.
FAQ：
How to solve abnormal noise or vibration of equipment?
Check bearings, gears, and other components, replace worn parts, and tighten loose screws. Systematic inspection, timely replacement, and reliable fastening ensure the integrity and reliability of the mechanical parts of the equipment, ensuring stable operation of the equipment.
What are the main differences between Fully Automatic Curding Chamber and Ordinary Drying Chamber Curding Chamber?
Automation level: After the maturation time is reached, it will automatically sound an alarm and open the door. The materials will be automatically moved from the maturation room to the cooling rack for cooling, without the need for manual intervention throughout the process. Multiple centralized and remote controls can be achieved, greatly improving production efficiency; Ordinary maturation rooms are mostly manually adjusted and rely on operator experience, resulting in lower production efficiency. Accuracy and stability: The fully automatic curing room uses high-end PLC+touch screen to visually monitor the curing time and temperature of each film in real-time, and can also display the quantity and status of film roll curing and cooling; Ordinary maturation rooms require manual monitoring and recording.
How to choose a suitable maturation room?
When choosing a Drying Chamber Curding Chamber, factors such as application scenarios, technical parameters, energy consumption, intelligent functions, budget, and after-sales service should be comprehensively considered. If you have specific needs, we suggest contacting us for detailed consultation.
How do smart forklifts identify and adapt to environmental changes?
During daily operation, forklifts continuously scan their surroundings using lidar and visual cameras, converting information such as the location of equipment, aisle widths, and shelf layout into a digital map and updating it in real time. For example, if a new slitting machine is added to the workshop or the location of warehouse shelves is adjusted, the AGV automatically recognizes the environmental changes and updates the map data, eliminating the need for manual recalibration of the route. It also memorizes the precise coordinates of frequently used locations (such as the printing press inlet and the curing chamber entrance), allowing direct access to this data during subsequent operations, reducing positioning time.
Want to learn about unmanned operation solutions?
In core links of the packaging industry chain, such as printing, laminating, and slitting, the efficiency, safety, and intelligence of material handling directly impact the continuity of the production process and cost control. Based on the technology of ordinary AGV intelligent vehicles, Xiamen Kechuang's customized AGV Intelligent Forklift has achieved an upgrade from "basic handling" to "full automation" through deep integration with the MES system, adaptation to multi-device data intelligent exchange, and enhanced environmental adaptability. It provides a safe, efficient, and durable unmanned operation solution for the packaging industry.
Check bearings, gears, and other components, replace worn parts, and tighten loose screws. Systematic inspection, timely replacement, and reliable fastening ensure the integrity and reliability of the mechanical parts of the equipment, ensuring stable operation of the equipment.
What are the main differences between Fully Automatic Curding Chamber and Ordinary Drying Chamber Curding Chamber?
Automation level: After the maturation time is reached, it will automatically sound an alarm and open the door. The materials will be automatically moved from the maturation room to the cooling rack for cooling, without the need for manual intervention throughout the process. Multiple centralized and remote controls can be achieved, greatly improving production efficiency; Ordinary maturation rooms are mostly manually adjusted and rely on operator experience, resulting in lower production efficiency. Accuracy and stability: The fully automatic curing room uses high-end PLC+touch screen to visually monitor the curing time and temperature of each film in real-time, and can also display the quantity and status of film roll curing and cooling; Ordinary maturation rooms require manual monitoring and recording.
How to choose a suitable maturation room?
When choosing a Drying Chamber Curding Chamber, factors such as application scenarios, technical parameters, energy consumption, intelligent functions, budget, and after-sales service should be comprehensively considered. If you have specific needs, we suggest contacting us for detailed consultation.
How do smart forklifts identify and adapt to environmental changes?
During daily operation, forklifts continuously scan their surroundings using lidar and visual cameras, converting information such as the location of equipment, aisle widths, and shelf layout into a digital map and updating it in real time. For example, if a new slitting machine is added to the workshop or the location of warehouse shelves is adjusted, the AGV automatically recognizes the environmental changes and updates the map data, eliminating the need for manual recalibration of the route. It also memorizes the precise coordinates of frequently used locations (such as the printing press inlet and the curing chamber entrance), allowing direct access to this data during subsequent operations, reducing positioning time.
Want to learn about unmanned operation solutions?
In core links of the packaging industry chain, such as printing, laminating, and slitting, the efficiency, safety, and intelligence of material handling directly impact the continuity of the production process and cost control. Based on the technology of ordinary AGV intelligent vehicles, Xiamen Kechuang's customized AGV Intelligent Forklift has achieved an upgrade from "basic handling" to "full automation" through deep integration with the MES system, adaptation to multi-device data intelligent exchange, and enhanced environmental adaptability. It provides a safe, efficient, and durable unmanned operation solution for the packaging industry.
