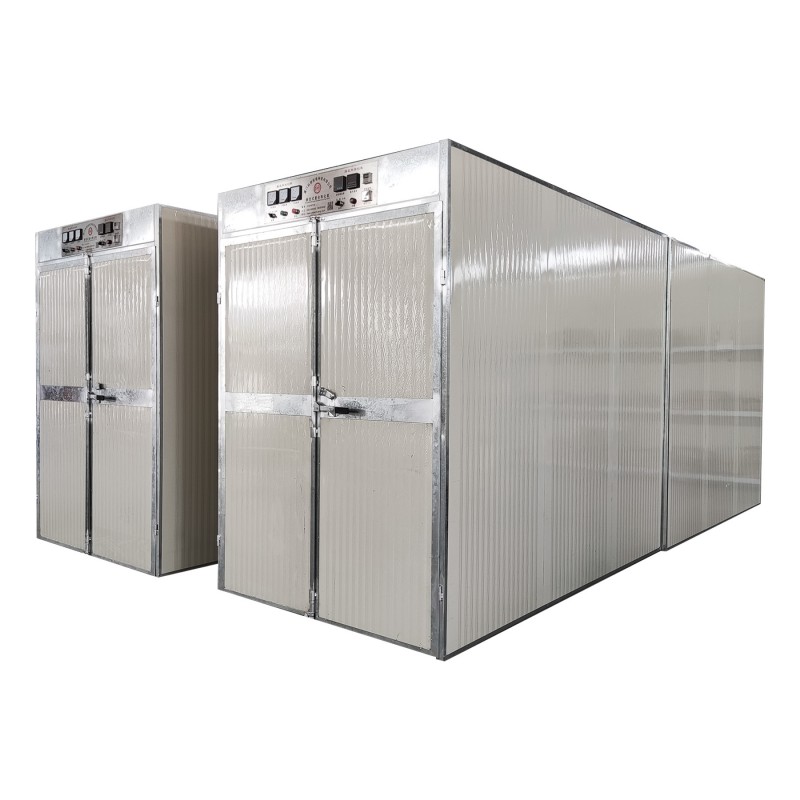

Curing Chamber With ERP
Curing Chamber With ERP seamlessly connects with the enterprise's ERP system through a network communication interface, realizing real-time interaction and sharing of production data. During the curing process, the Curing Chamber With ERP device automatically collects operating data such as temperature and time, and feeds back to the ERP system in real time, making it easier for managers to remotely monitor production progress and quality status.
1. The Curing Chamber With ERP box is made of rock wool board with the highest fireproof grade and galvanized pipe with high rustproof grade. It has the characteristics of fireproof, firm, rustproof and beautiful!

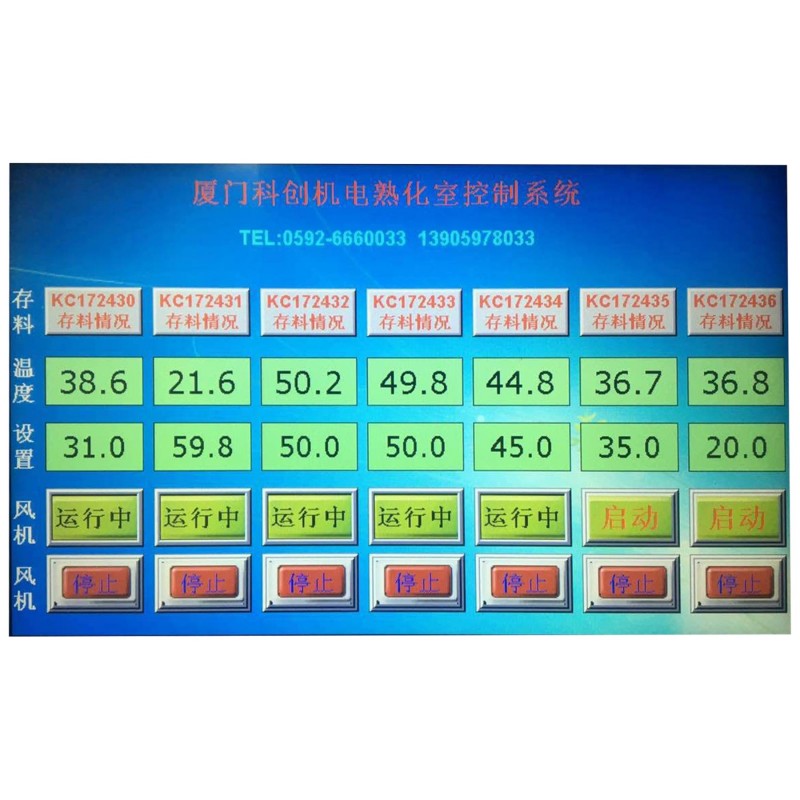

2. Electrical control: high-end PLC + touch screen control, intelligent temperature controller, to achieve a safe, stable and easy-to-operate control system. Full communication mode, to achieve multiple centralized control, reduce lines and thus reduce line failures!

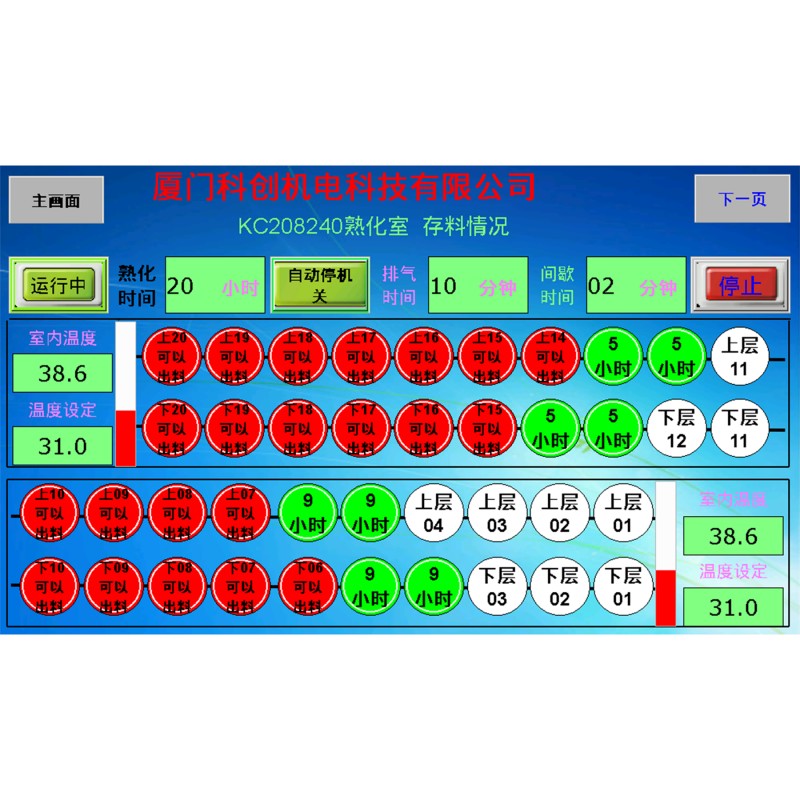

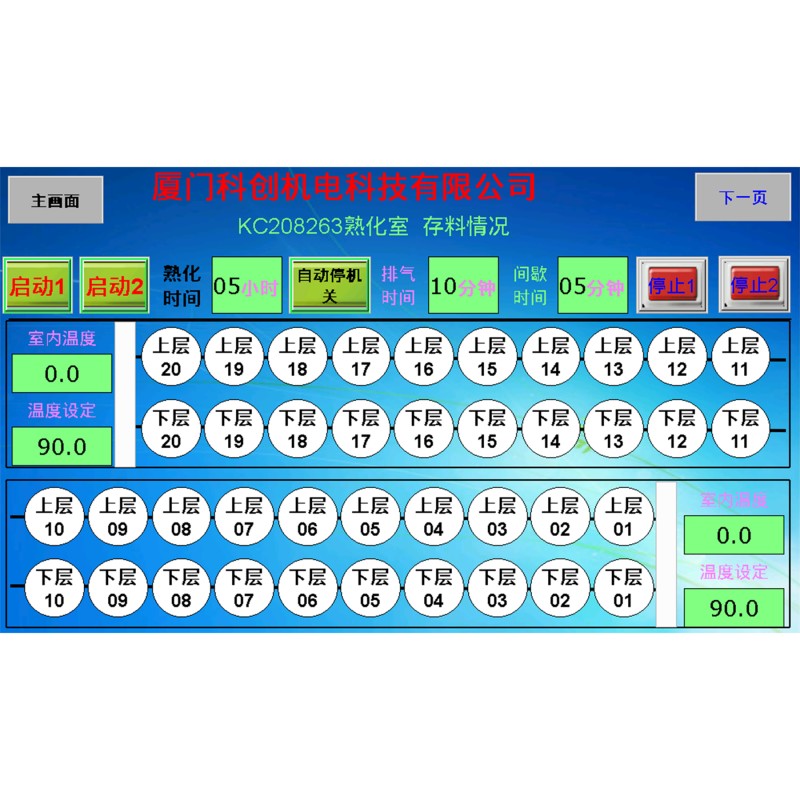

3. ERP management system, to achieve real-time statistics of feeding, discharging, storage, maturation time of each roll, intelligent reminder for discharging, and other intelligent services.
4. Intelligent cloud service: the operation status of the maturation chamber, the storage status, etc. can be shared to the office and mobile phone to realize remote control cloud service.
5. Complete alarm system: alarm system such as maturation time arrival alarm, overheating alarm, fault alarm, etc., so that users can use it more assured.
6. Complete safety protection: over-temperature protection, over-current protection, leakage protection, phase loss protection, overvoltage protection, anti-drop protection and other safety protections.
2. Electrical control: high-end PLC + touch screen control, intelligent temperature controller, to achieve a safe, stable and easy-to-operate control system. Full communication mode, to achieve multiple centralized control, reduce lines and thus reduce line failures!
3. ERP management system, to achieve real-time statistics of feeding, discharging, storage, maturation time of each roll, intelligent reminder for discharging, and other intelligent services.
4. Intelligent cloud service: the operation status of the maturation chamber, the storage status, etc. can be shared to the office and mobile phone to realize remote control cloud service.
5. Complete alarm system: alarm system such as maturation time arrival alarm, overheating alarm, fault alarm, etc., so that users can use it more assured.
6. Complete safety protection: over-temperature protection, over-current protection, leakage protection, phase loss protection, overvoltage protection, anti-drop protection and other safety protections.
Parameters
● ERP system: Delta PLC, sensor, Mean Well switch power supply, Delta touch screen.
● Circulation air system: 1 550W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
● Exhaust system: 1 180W exhaust fan, two sets of time control (arbitrary setting: how long to exhaust, how long to stop).
● Heating method: 1 set of electric heating, multi-tube mode (a total of 12 lines), electric heating 9KW+9KW=18KW, divided into high and low temperatures.
● Electrical control: Schneider low-voltage electrical appliances, ultra-high temperature protection, timed shutdown, timed exhaust, phase loss protection, overload protection.
● Box bracket steel: 50*50 and 50*100 galvanized pipes welded together, 480mm interval, with ERP heavy semi-disassembly mode.
● Box insulation material: 50mm rock wool color steel sandwich panel.
● Material in and out method: forward and backward, easy to open and close. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
● Random accessories: 1. 20 threading rollers (2-inch galvanized pipes, 4 6305 bearings each).

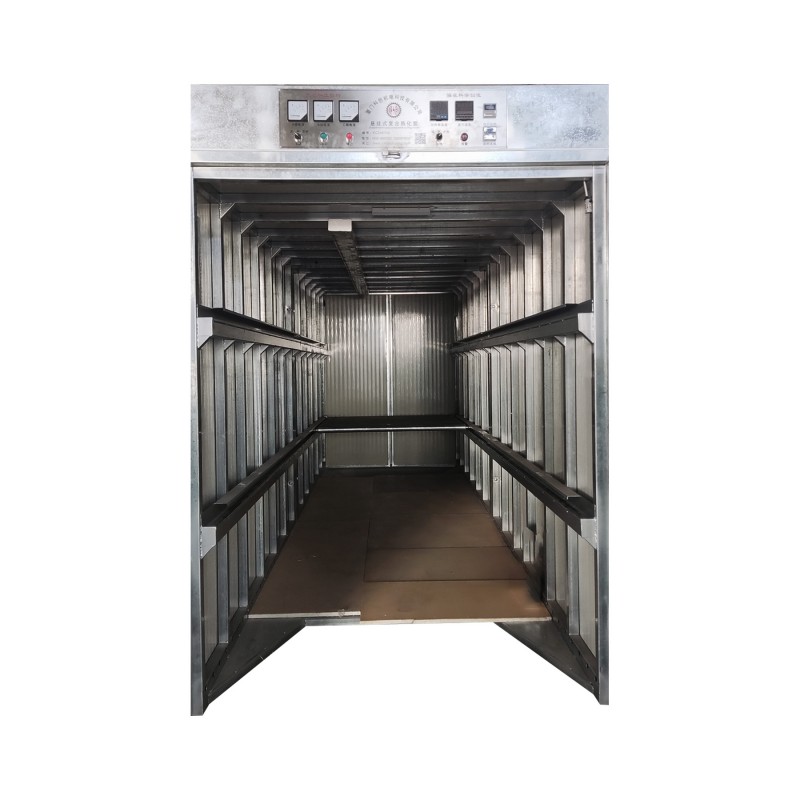

● Number of layers: two layers, C-type heavy-duty track, the lowest film roll center is 650mm from the ground. Track spacing is 850mm. Use temperature: 40-80℃ adjustable, temperature error ±2℃.
● Maximum film roll: ￠800mm, weight 400kg, width 1180mm.
● Specifications: Appearance: length 5890*width 1500*height 2500mm, indoor: length 5700*width 1180*height 2200mm. (Customizable size according to customer needs)
● Total power: 19KW (380V, three-phase five-wire, using national standard cable: 3*10+2*4, must be reliably grounded).
● Circulation air system: 1 550W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
● Exhaust system: 1 180W exhaust fan, two sets of time control (arbitrary setting: how long to exhaust, how long to stop).
● Heating method: 1 set of electric heating, multi-tube mode (a total of 12 lines), electric heating 9KW+9KW=18KW, divided into high and low temperatures.
● Electrical control: Schneider low-voltage electrical appliances, ultra-high temperature protection, timed shutdown, timed exhaust, phase loss protection, overload protection.
● Box bracket steel: 50*50 and 50*100 galvanized pipes welded together, 480mm interval, with ERP heavy semi-disassembly mode.
● Box insulation material: 50mm rock wool color steel sandwich panel.
● Material in and out method: forward and backward, easy to open and close. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
● Random accessories: 1. 20 threading rollers (2-inch galvanized pipes, 4 6305 bearings each).
● Number of layers: two layers, C-type heavy-duty track, the lowest film roll center is 650mm from the ground. Track spacing is 850mm. Use temperature: 40-80℃ adjustable, temperature error ±2℃.
● Maximum film roll: ￠800mm, weight 400kg, width 1180mm.
● Specifications: Appearance: length 5890*width 1500*height 2500mm, indoor: length 5700*width 1180*height 2200mm. (Customizable size according to customer needs)
● Total power: 19KW (380V, three-phase five-wire, using national standard cable: 3*10+2*4, must be reliably grounded).
Application
Curing Chamber With ERP is widely used in the flexible packaging printing industry. The plastic composite film is precisely controlled in temperature and time in the curing chamber to achieve ideal composite strength and barrier properties.
