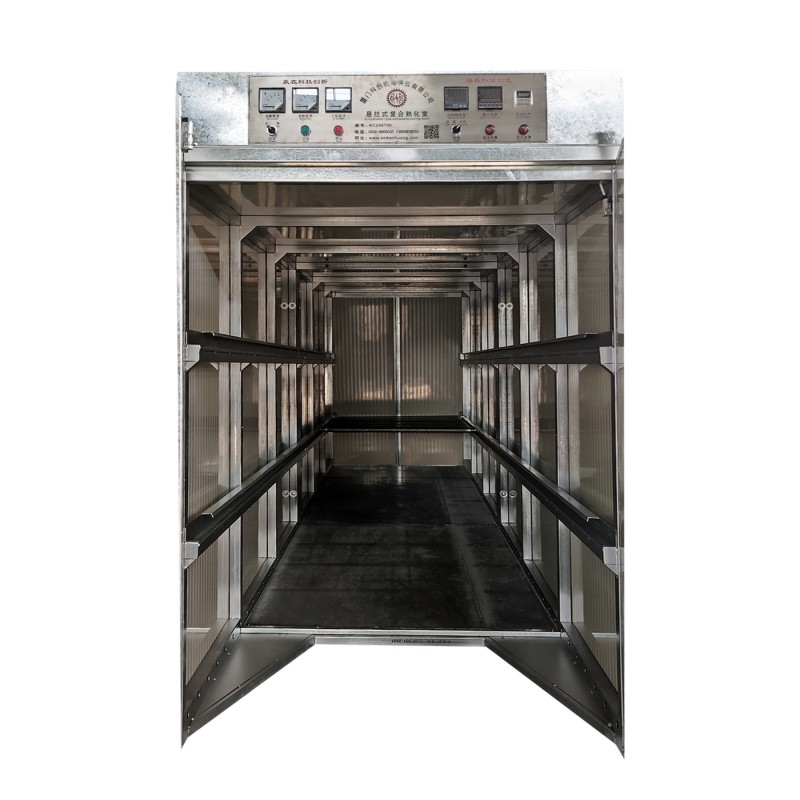

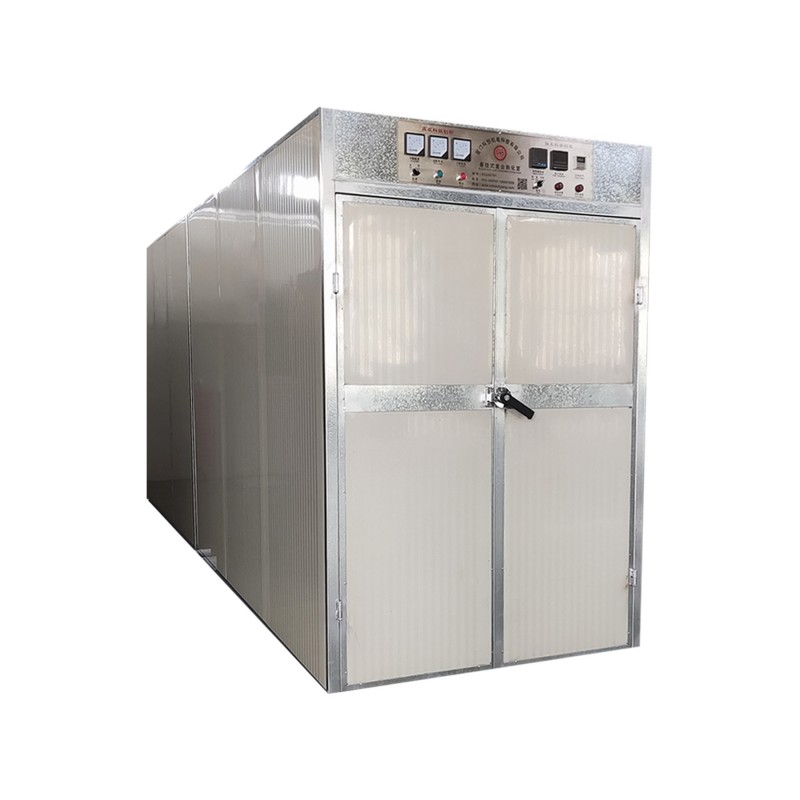

Curing Chamber With Refrigeration

The plastic composite curing chamber with refrigeration is equipped with a refrigerator, which combines the refrigeration and curing functions of the plastic composite film. The box body is made of high-quality rock wool color steel sandwich panels, which can reduce the heat exchange with the external environment during the heating or cooling process of the curing chamber and improve energy utilization efficiency. Curing Chamber With Refrigeration is equipped with an advanced temperature control system, which can adjust the operating status of refrigeration, heating, ventilation and other equipment according to the actual needs of refrigeration and curing. Perfect safety protection functions and alarm systems allow customers to use it with peace of mind!

● 1.Curing Chamber With Refrigeration with Refrigeration Machine
● 2.Electrical control: Delixi low-voltage electrical appliances, ultra-high temperature protection, timed exhaust, phase loss protection, overload protection.
● 3. Operating temperature: 10-80℃ adjustable, temperature error ±2℃.
● 4.Total power: 19KW (380V, three-phase five-wire, using national standard cable: 3*10+2*4, must be reliably grounded).
● 5. Box support steel: 50*50 and 50*100 galvanized pipes welded together, 960mm interval, with standard refrigeration fixed mode.
● 6. Box insulation material: 50mm rock wool color steel sandwich panel.

● 7. Material entry and exit method: forward and backward, easy to open and close the door. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
● 8. Circulating air system: 1 550W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
● 9. Exhaust system: 1 60W exhaust fan, two sets of time control (arbitrary setting: how long to exhaust, how long to stop).
● 10. Heating method: 1 set of electric heating, multi-tube mode (a total of 12), electric heating 9KW*2 gears = 18KW, divided into high and low temperatures.
● 11. Random accessories: 1. 20 threading rollers (1.5-inch galvanized pipes, 2 6305 bearings each) 2. 1 bottle of glass glue.
● 12. Number of layers: two layers, C-type track, the lowest film roll center is 550mm from the ground. Track spacing is 650mm.
● 13. The largest film roll can be placed: ￠600mm, weighing 200kg, and 1200mm wide.
● 14. Specifications: Appearance: length 5780*width 1500*height 2200, indoor: length 5680*width 1200*height 1900.

The plastic composite aging room with refrigeration is mainly used in the production of plastic composite products that require refrigeration. The integration of aging and refrigeration functions can save space and equipment investment costs.
