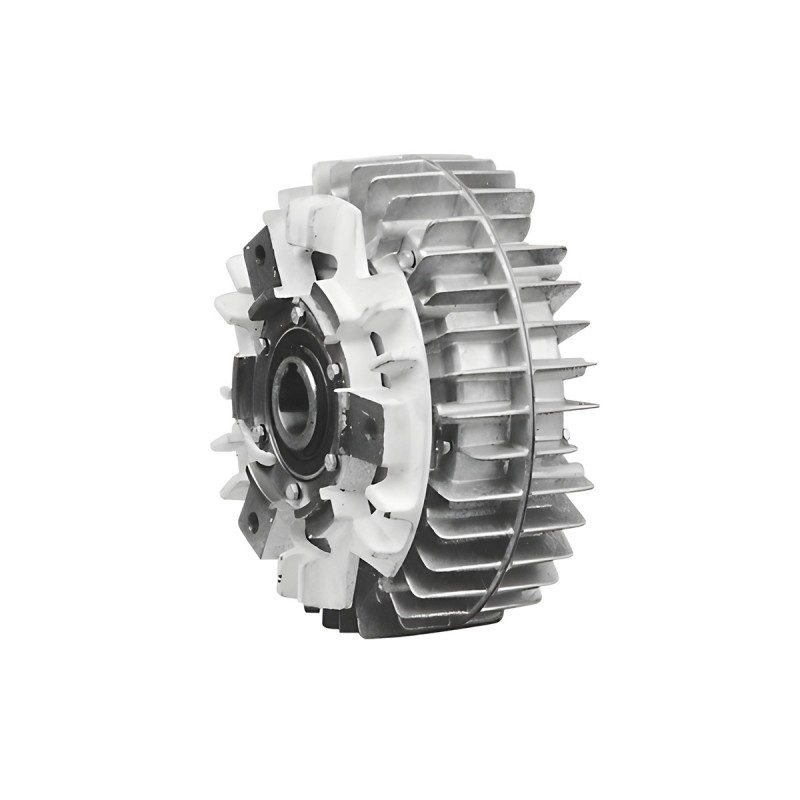

Magnetic Powder Brake
With years of experience in production Magnetic Powder Brake, the company can supply a wide range of Magnetic Powder Brake. Magnetic Powder Brake is a high-performance electromagnetic control component, no pollution, low noise, simple maintenance. FZ-K magnetic powder brake electromagnetic control does not require mechanical contact, fast action, no impact vibration. The hollow shaft design is easy to install, and the housing rotation design adapts to a variety of transmission requirements.
The torque control range of Kechuang's Magnetic Powder Brake is wide and the control accuracy is high. The output torque is linearly related to the excitation current, which can achieve high-precision torque control. When the excitation current remains unchanged, the torque transmission is stable and is not affected by slip (speed difference). The static and rotating torques are consistent, which is suitable for occasions requiring constant tension. The FZ-K magnetic powder brake has very little impact when connected or braked, and can achieve smooth start and stop without impact, and the resistance torque is very small, which will not cause unnecessary heat. It uses heat-resistant, wear-resistant, oxidation-resistant, and corrosion-resistant superalloy magnetic powder, with excellent heat dissipation performance, suitable for continuous sliding operation, and long service life. It has a fast response speed and is suitable for high-frequency start-stop or reversing occasions. The special heat dissipation structure enables it to withstand rigorous continuous sliding operation.
Specification
| model | Main technical parameters | Overall dimensions | |||||||||||||||||||
|
Nominal torque N.m |
Maximum voltage V |
Maximum current A |
Slip power Wm |
Allowable maximum speed r/min |
L | L1 | L2 | D | Dr(g7) | D₂ | D₃ | D₄ | D₅ | d(H7) | n | d₁ | d₂ | d₃ | H | b | |
| FL25K | 25 | DC-24 | 1.46 | 170 | 1500 | 123 | 33 | 74 | 196 | 90 | 80 | 127.5 | 80 | 64 | 20 |
|
6 | 6 | 5 | 22.8 | 6 |
| FL50K | 50 | 1.8 | 300 | 153 | 45.5 | 88 | 230 | 110 | 95 | 150.5 | 95 | 77 | 30 |
|
8 | 8 | 6 | 33.3 | 8 | ||
| FL100K | 100 | 2.5 | 500 | 186 | 55.5 | 104 | 280 | 125 | 110 | 182 | 110 | 95 | 35 |
|
10 | 10 | 6 | 38.3 | 10 | ||
| FL200K | 200 | 3.7 | 800 | 1000 | 240 | 81.5 | 128 | 342 | 160 | 140 | 229 | 140 | 103 | 45 |
|
10 | 10 | 8 | 48.8 | 14 | |
| FL400K | 400 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
| FZ25K | 25 | DC-24 | 0.6 | 170 | 1500 | 1035 | 5 |
|
196 | 100 | 140 |
|
|
|
20 | 3 | 10 |
|
|
22.8 | 6 |
| FZ50K | 50 | 1.1 | 300 | 116 | 5 |
|
230 | 110 | 150 |
|
|
|
30 | 3 | 10 |
|
|
33.3 | 8 | ||
| FZ100K | 100 | 1.2 | 500 | 143 | 5 |
|
280 | 110 | 150 |
|
|
|
35 | 6 | 10 |
|
|
38.3 | 10 | ||
| FZ200K | 200 | 1.4 | 800 | 1000 | 179 | 6 |
|
342 | 160 | 240 |
|
|
|
45 | 6 | 10 |
|
|
48.8 | 14 | |
| FZ400K | 400 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Application:
FZ-K Magnetic Powder Brake is widely used in scenarios that require precise speed control and positioning control, mainly including:
1. Textile machinery: used to control winding speed and tension.
2. Printing machinery: used to control paper conveying speed and tension.
3. Packaging machinery: used to control the conveying speed and tension of packaging materials.
4. Conveying machinery: used to control the speed and tension of conveyor belts.
5. Other equipment that requires precise speed control and positioning control.
1. Textile machinery: used to control winding speed and tension.
2. Printing machinery: used to control paper conveying speed and tension.
3. Packaging machinery: used to control the conveying speed and tension of packaging materials.
4. Conveying machinery: used to control the speed and tension of conveyor belts.
5. Other equipment that requires precise speed control and positioning control.
