Magnetic Powder Clutch
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Magnetic Powder Clutch. We look forward to cooperating with you. FL-K Magnetic Powder Clutch achieves smooth control of torque by precisely adjusting the current to meet high-precision requirements. It has high operating efficiency, low energy consumption, simple structure, long service life, and reduces the frequency of equipment maintenance and replacement. It is an indispensable and important component in industrial automation equipment.
The Magnetic Powder Clutch has a fast response speed and can complete the start, stop and switch operations in a short time. It is reliable in operation, simple in structure, and has a low failure rate, making it suitable for long-term continuous operation. The magnetic powder material is wear-resistant and the overall life of the equipment is long. It is easy to install and has a compact design, making it easy to integrate into existing equipment. The FL-K type magnetic powder clutch has strong adaptability and supports water cooling or air cooling to adapt to different working environments. In the event of power failure or power outage, it can maintain stable torque output to ensure equipment safety.
Specification
| model | Main technical parameters | Overall dimensions | |||||||||||||||||||
|
Nominal torque N.m |
Maximum voltage V |
Maximum current A |
Slip power Wm |
Allowable maximum speed r/min |

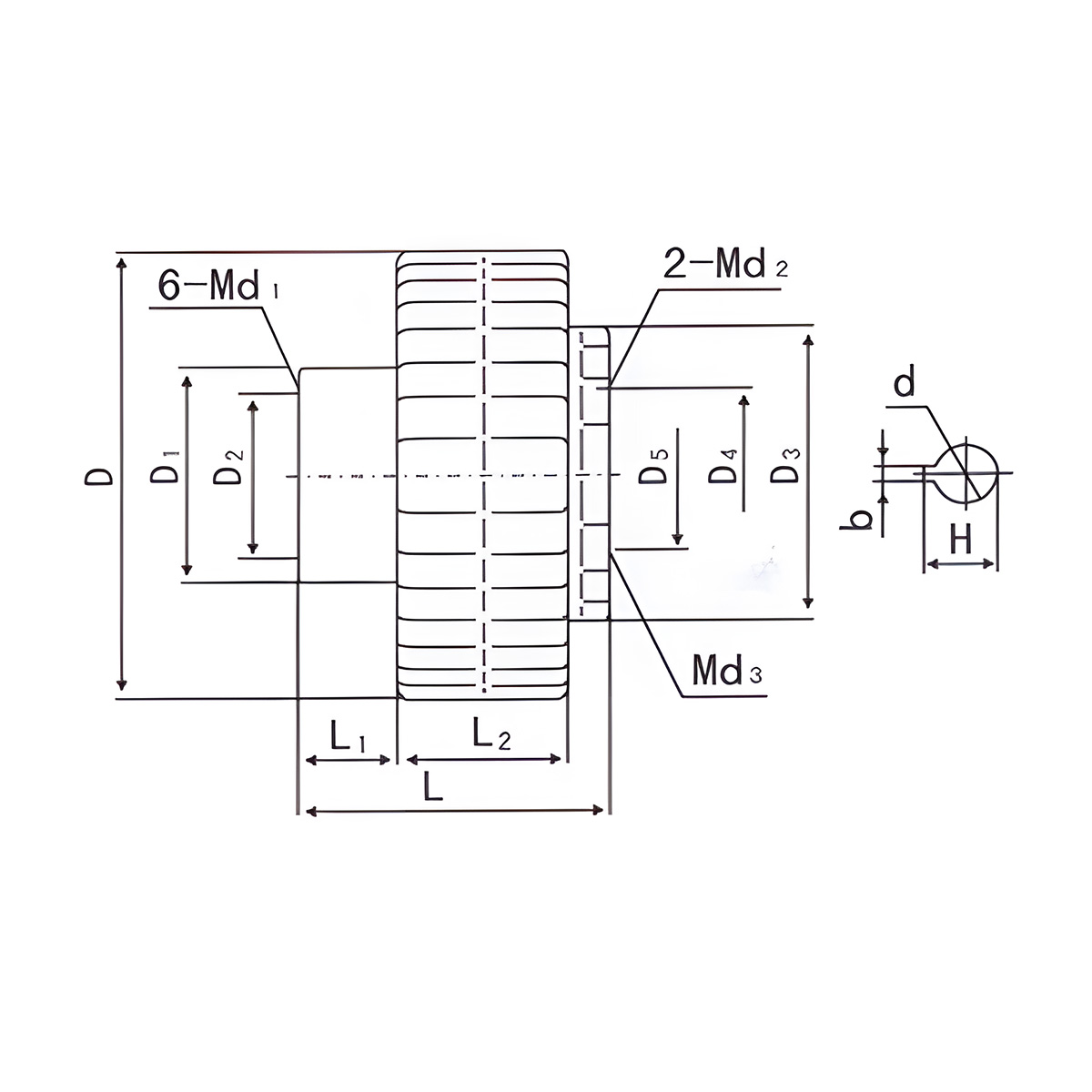

L | L1 | L2 | D | Dr(g7) | D₂ | D₃ | D₄ | D₅ | d(H7) | n | d₁ | d₂ | d₃ | H | b | |
| FL25K | 25 | DC-24 | 1.46 | 170 | 1500 | 123 | 33 | 74 | 196 | 90 | 80 | 127.5 | 80 | 64 | 20 |
|
6 | 6 | 5 | 22.8 | 6 |
| FL50K | 50 | 1.8 | 300 | 153 | 45.5 | 88 | 230 | 110 | 95 | 150.5 | 95 | 77 | 30 |
|
8 | 8 | 6 | 33.3 | 8 | ||
| FL100K | 100 | 2.5 | 500 | 186 | 55.5 | 104 | 280 | 125 | 110 | 182 | 110 | 95 | 35 |
|
10 | 10 | 6 | 38.3 | 10 | ||
| FL200K | 200 | 3.7 | 800 | 1000 | 240 | 81.5 | 128 | 342 | 160 | 140 | 229 | 140 | 103 | 45 |
|
10 | 10 | 8 | 48.8 | 14 | |
| FL400K | 400 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
| FZ25K | 25 | DC-24 | 0.6 | 170 | 1500 | 1035 | 5 |
|
196 | 100 | 140 |
|
|
|
20 | 3 | 10 |
|
|
22.8 | 6 |
| FZ50K | 50 | 1.1 | 300 | 116 | 5 |
|
230 | 110 | 150 |
|
|
|
30 | 3 | 10 |
|
|
33.3 | 8 | ||
| FZ100K | 100 | 1.2 | 500 | 143 | 5 |
|
280 | 110 | 150 |
|
|
|
35 | 6 | 10 |
|
|
38.3 | 10 | ||
| FZ200K | 200 | 1.4 | 800 | 1000 | 179 | 6 |
|
342 | 160 | 240 |
|
|
|
45 | 6 | 10 |
|
|
48.8 | 14 | |
| FZ400K | 400 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Application:
FL-K Magnetic Powder Clutch is an automation device based on electromagnetic principle, which is widely used in industrial field, especially in tension control and transmission system. It can provide reliable transmission and tension control solutions in various industrial scenarios.
Hot Tags: Magnetic Powder Clutch, Industrial Clutch System, Custom Clutch Solutions, Torque Transmission Device
