Fully Automatic Curing Chamber

Fully Automatic Curing Chamber can be customized as a heavy-duty fixed type. The box is made of rock wool board with a high fireproof grade and galvanized pipe with a high rustproof grade. High-end PLC + touch screen control, intelligent temperature control, visual real-time monitoring of the aging time and aging temperature of each material film. When the aging time is reached, it will automatically alarm and open the door, and automatically move the material from the aging chamber to the cooling rack for cooling. Fully Automatic Curing Chamber can also display the number and status of film roll aging and cooling, and can exchange data with the MES system. The full communication mode can realize multiple centralized control and remote control, and has a complete safety protection and alarm system to realize smart factories and unmanned factories.

● Pneumatic automatic door opening system: Fully Automatic Curing Chamber has pneumatic door opening and closing.
● Cooling rack: length 5890*width 1700*height 2200.
● ERP management system: Delta touch screen, Delta PLC, sensor, Xiamen Kechuang self-developed software system.

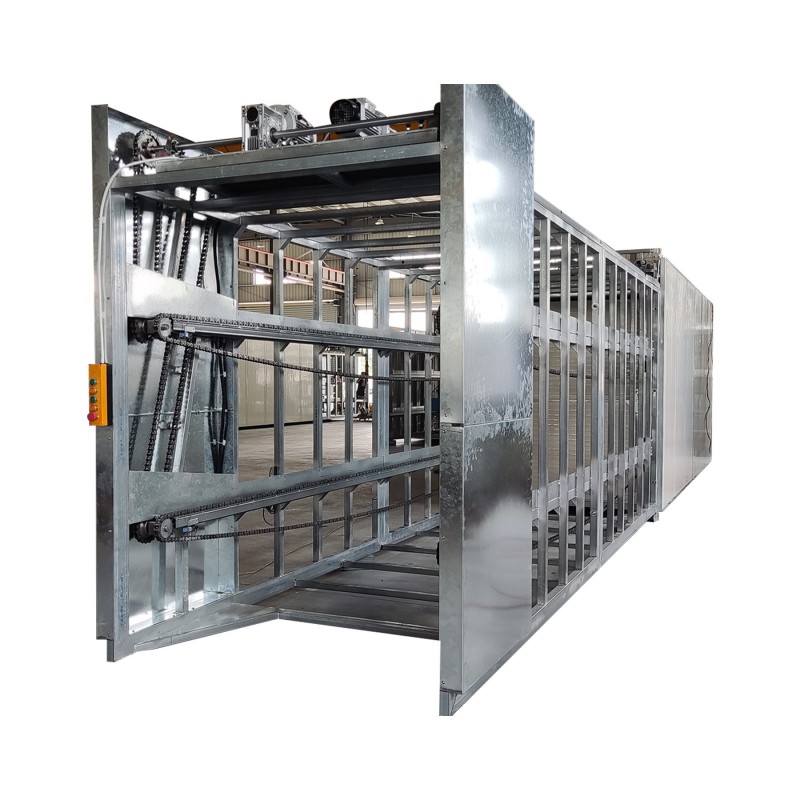

● Electric translation system: motor drive, chain drive, safety protection.
● Box support steel: 50*50 and 50*100 galvanized pipes welded together, 480mm interval, fully automatic heavy-duty fixed mode.
● Box insulation material: 50mm rock wool color steel sandwich panel.
● Material entry and exit method: front and back, easy to open and close. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
● Circulating air system: 1 550W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
● Exhaust system: 1 180W exhaust fan, two sets of time control (arbitrary setting: how long to exhaust, how long to stop).
● Heating method: 1 set of electric heating, multi-tube mode (12 lines in total), electric heating 9KW+9KW=18KW, divided into high and low temperatures.
● Electric control: Schneider low-voltage electrical appliances, ultra-high temperature protection, timed shutdown, timed exhaust, phase loss protection, overload protection.
● Random accessories: 1. 20 threading rollers (2-inch galvanized pipes) 2. 1 bottle of glass glue.

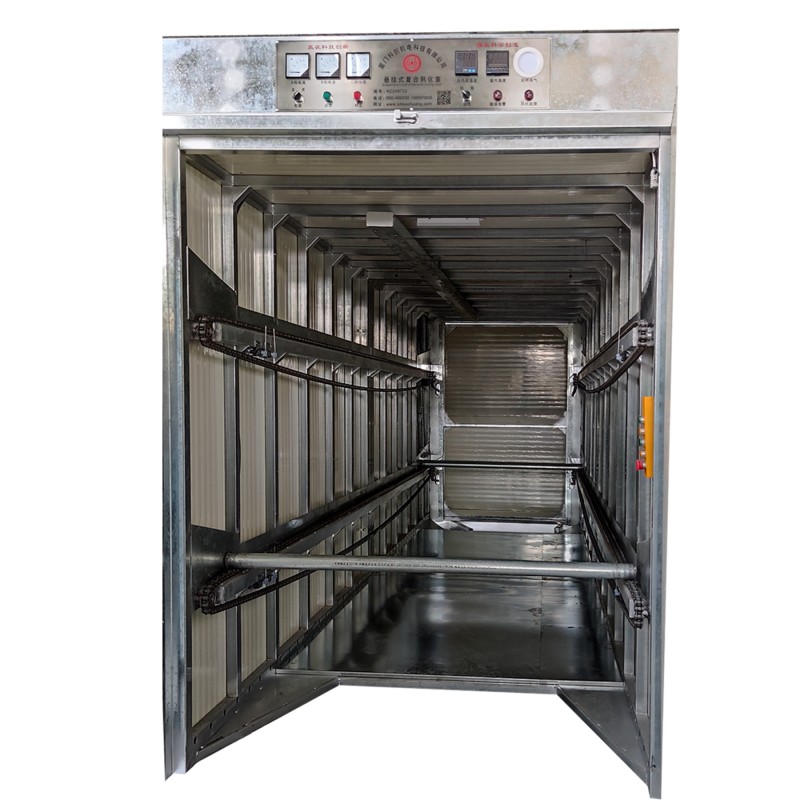

● Number of layers: two layers, C-type heavy-duty track, the lowest film roll center is 650mm from the ground. Track spacing is 850mm.
● Operating temperature: 40-80℃ adjustable, temperature error ±2℃.
● Maximum film roll: ￠800mm, weight 400kg, width 1280mm.
● Specifications: Appearance: length 5890*width 1800*height 2500, indoor: length 5700*width 1280*height 2200.
● Total power: 19KW (380V, three-phase five-wire, using national standard cable: 3*10+2*4, must be reliably grounded.

Fully Automatic Curing Chamber is widely used in plastic packaging, printing, composite and other industries. For example, in the fields of food packaging, pharmaceutical packaging, cosmetic packaging, etc., plastic composite film needs to be cured to ensure the sealing, strength and safety of the packaging.
