Double Diaphragm Pump For Printing

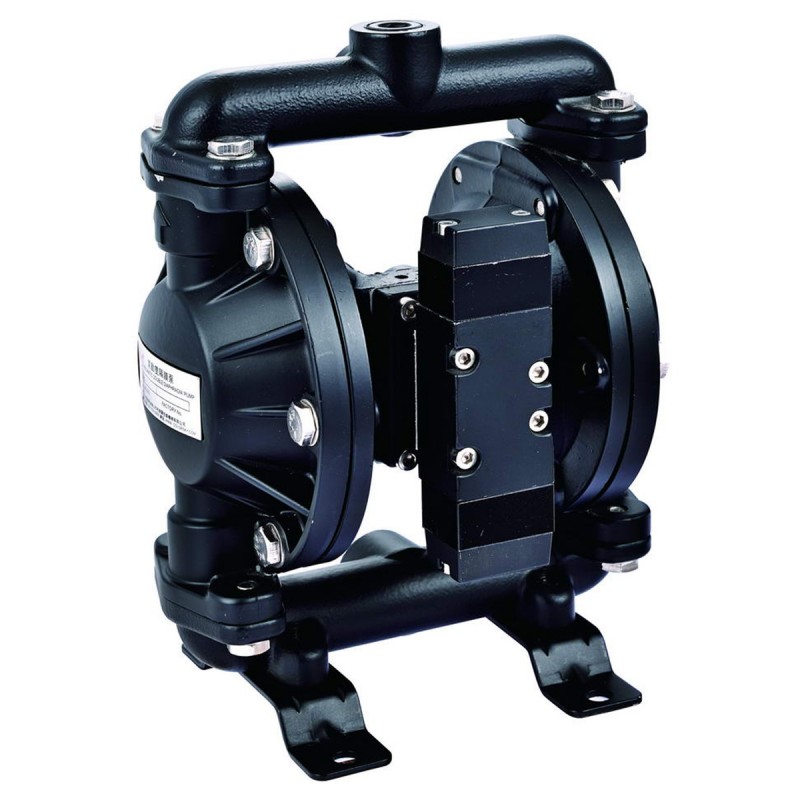

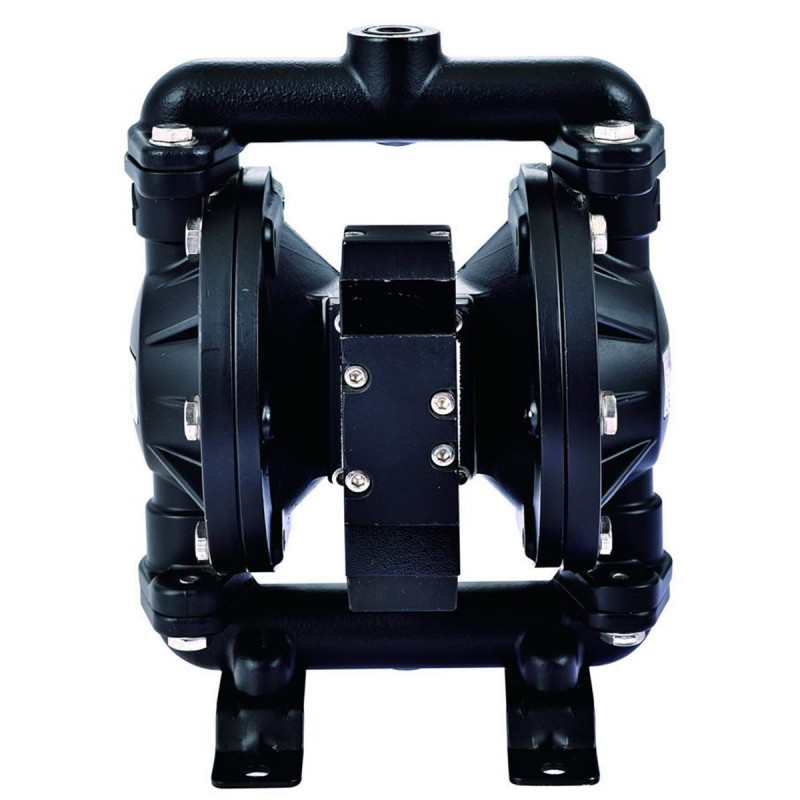

Double Diaphragm Pump For Printing is finely crafted and made of premium materials. The pump body is made of aluminum alloy with elastic mixture and Teflon diaphragm. This pneumatic double diaphragm pump is suitable for various corrosive and non-corrosive liquids. It is powered by compressed air, has no sparks, static electricity and electromagnetic interference, and is suitable for use in flammable and explosive environments. It has large flow, strong self-priming power, low noise, good applicability and safety. It can transport high-viscosity, volatile, flammable and particle-containing liquids. The built-in displacement valve core design ensures stable operation and low maintenance costs.

Product model: BML-15
Shell material: Aluminum alloy
Diaphragm material: Teflon nitrile rubber
Thread: British BSPT
Fluid inlet and outlet: 1/2"
Air interface: 1/4"
Maximum flow: 35L/min 2.1m³/h
Suction head: 6m Head: 70m
Maximum discharge pressure: 0.7Mpa
Solid particle limit: 2mm
Use air pressure range: 0.2-0.7Mpa
Net weight: 4.5kg Gross weight: 5kg
Packing size: 180*220*280mm

Mainly used in 1. Printing machine, 2. Glue laminating machine, 3. Gravure printing, 4. Flexographic printing, 5. Supply and circulation of ink and glue.
BML-10 Double Diaphragm Pump not only improves work efficiency but also reduces operating costs with its high energy efficiency and durability, providing a reliable solution for industrial applications.
