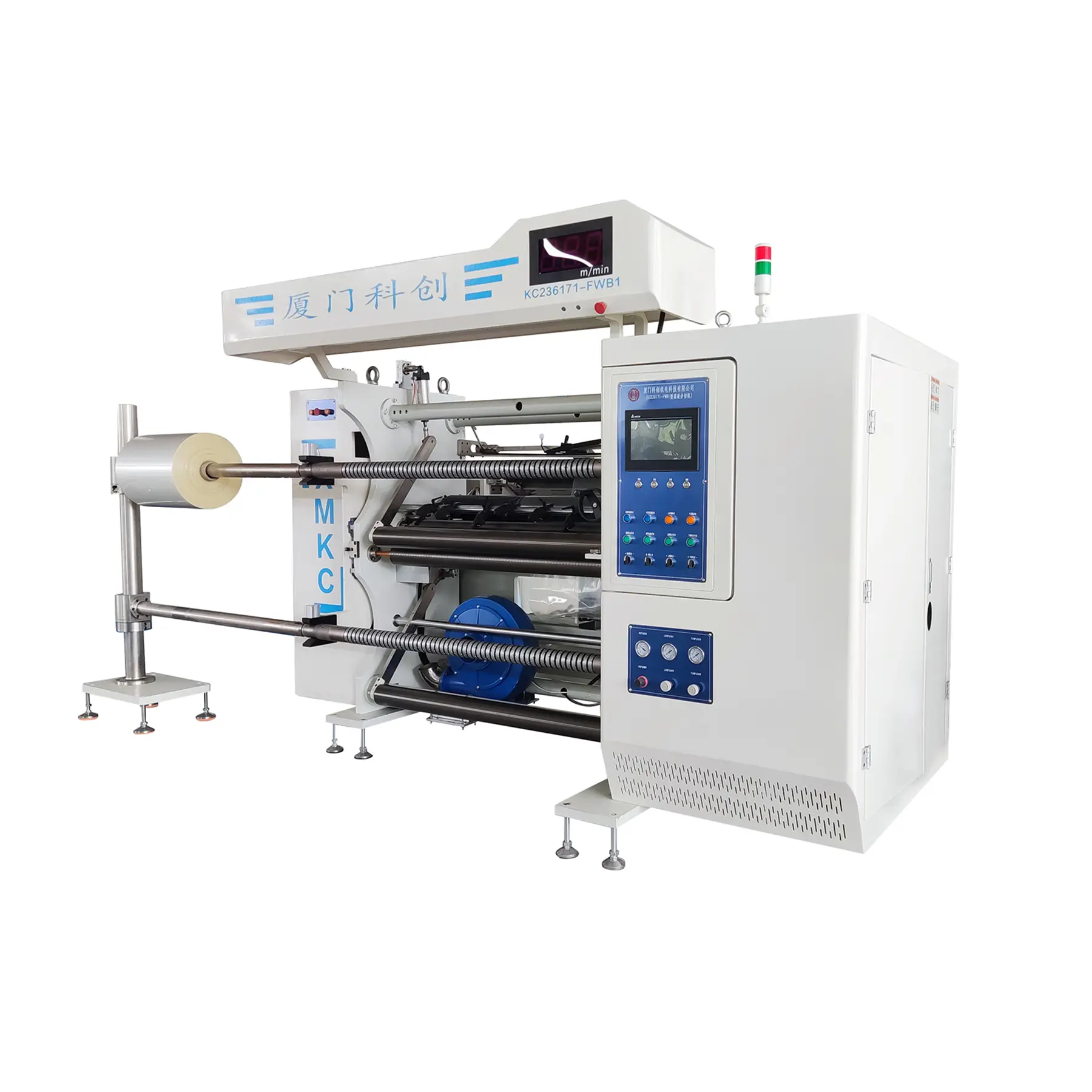

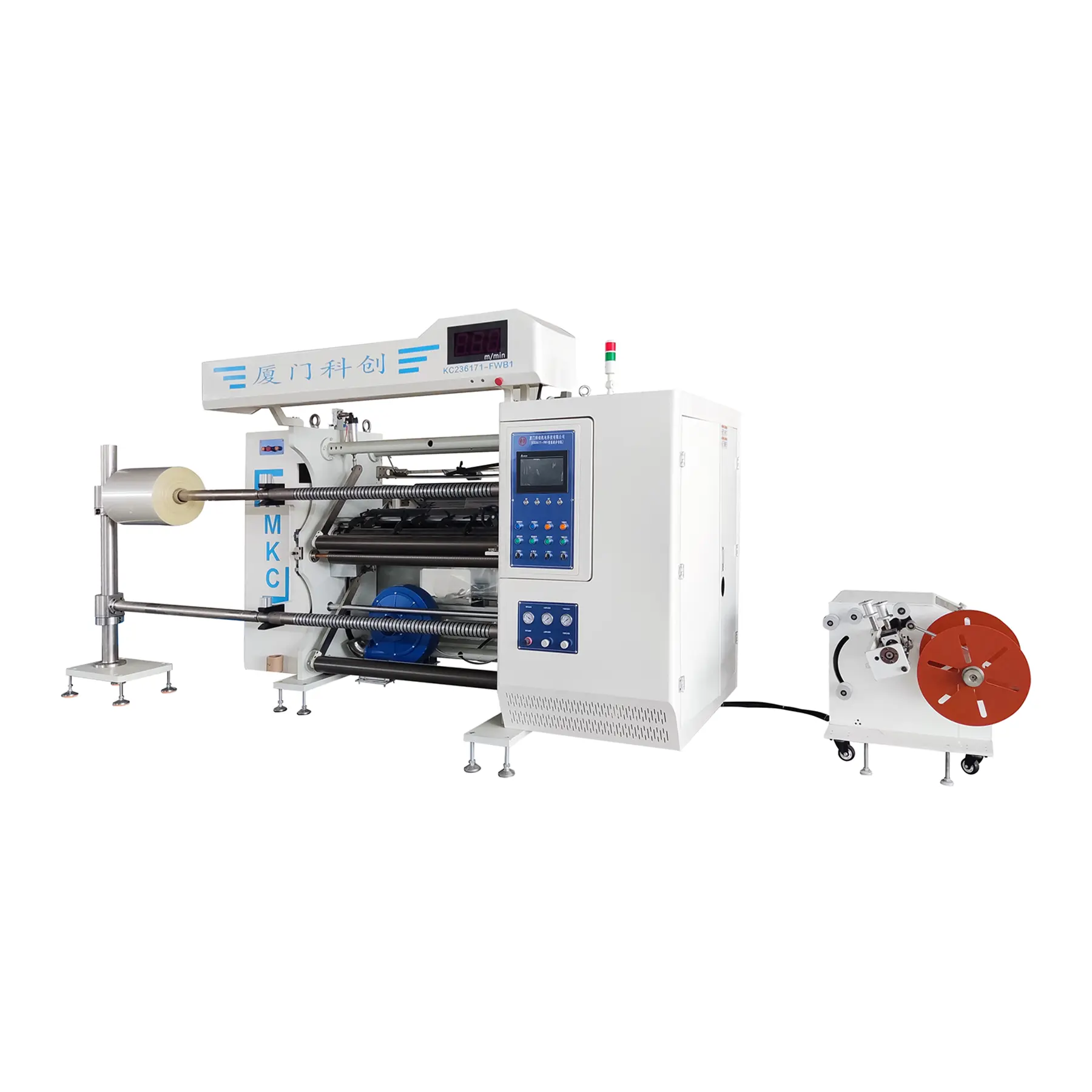

Standard Slitting Machine
The Standard Slitting Machine of Xiamen Kechuang Electromechanical Technology Co., Ltd is a humanized design based on the existing slitting problems in the packaging industry. It is a high-performance, cost-effective, fully automatic slitting machine. The standard slitting machine has significant advantages such as high degree of automation, easy operation, high production efficiency and low scrap rate.
Xiamen Kechuang Standard Slitting Machine adopts visual CCD correction system to adjust the error remotely. High-end PLC + touch screen control realizes a safe, stable and easy-to-operate control system. It can realize data exchange with ERP production management system and intelligent manufacturing MES system, and can also realize data exchange, technology sharing and parameter sharing of multiple slitting machines.
Parameters Table
| Mechanical speed | 450m/min | Slitting speed | 400m/min |
| Unwinding diameter | Ø800mm | Reel diameter | Ø500mm |
| Unwinding width | 100-1300mm | Slitting width | 30-1300mm |
| Unwinding paper core inner diameter | 3-inch, 6-inch universal | Reel core inner diameter | 3 inches |
| Correction method | Follow edge/line | Reel shaft | Pneumatic differential axis |
| Unwinding tension | Constant tension control | Reel tension control | Taper tension control |
| Total power | 13Kw | Power supply voltage | 380V (three-phase five-wire) |
| Machine size | L3230mm*W2300mm*H2150mm | Machine weight | About 5T |
Function
Standard Slitting Machine only needs to operate: start, stop, accelerate, decelerate, and the four constructions can be produced normally!
Full communication mode: three-motor touch screen machine linkage system, realize bus control, and the communication mode reduces line failures.
Unwinding unit: adopts air-top shaftless mode, hydraulic lifting, extremely convenient and fast loading, closed-loop constant tension system.
Rewinding unit: servo motor independent control, pneumatic slip shaft, tension taper control, making the tension more stable and slitting more neat.
Film pressing roller pressure mode: overcome the weight of the film pressing roller, realize small tension slitting, ultra-thin material slitting.
Perfect alarm system: air pressure loss alarm, fault alarm, unwinding small roll diameter alarm, meter arrival alarm, rewinding roll diameter alarm, deviation correction alarm and other alarm systems, so that users can use it with confidence.
Perfect safety protection: overcurrent protection, overvoltage protection, overload protection, anti-pinch protection and other safety protections.
Full communication mode: three-motor touch screen machine linkage system, realize bus control, and the communication mode reduces line failures.
Unwinding unit: adopts air-top shaftless mode, hydraulic lifting, extremely convenient and fast loading, closed-loop constant tension system.
Rewinding unit: servo motor independent control, pneumatic slip shaft, tension taper control, making the tension more stable and slitting more neat.
Film pressing roller pressure mode: overcome the weight of the film pressing roller, realize small tension slitting, ultra-thin material slitting.
Perfect alarm system: air pressure loss alarm, fault alarm, unwinding small roll diameter alarm, meter arrival alarm, rewinding roll diameter alarm, deviation correction alarm and other alarm systems, so that users can use it with confidence.
Perfect safety protection: overcurrent protection, overvoltage protection, overload protection, anti-pinch protection and other safety protections.
Application
Standard Slitting Machine slitting plastic films for the production of various packaging bags, cling film, stretch film, etc. For example, it slitting wide polyethylene films into small rolls of film suitable for packaging food, daily necessities, etc.
Operation process:
Equipment inspection: Check the status of the equipment to ensure that the temperature, humidity, and ventilation system are normal.
Parameter setting: Set the temperature, humidity, and curing time based on the type of material we are using.
Material placement: Place materials on adjustable shelves or track carts to avoid stacking and squeezing.
Operation monitoring: After starting the Drying Chamber Curding Chamber, monitor temperature, humidity, and time changes to ensure the normal operation of the equipment.
Maturation completed: After reaching the set time, remove the material and turn off the equipment.
By following the above steps, the efficient operation of the Dual Passage Curding Chamber can be ensured while meeting the maturation requirements of different materials. If you have further needs or questions, please feel free to consult us at any time.
Our Sci Tech Innovation team will provide one-on-one service for you.
Parameter setting: Set the temperature, humidity, and curing time based on the type of material we are using.
Material placement: Place materials on adjustable shelves or track carts to avoid stacking and squeezing.
Operation monitoring: After starting the Drying Chamber Curding Chamber, monitor temperature, humidity, and time changes to ensure the normal operation of the equipment.
Maturation completed: After reaching the set time, remove the material and turn off the equipment.
By following the above steps, the efficient operation of the Dual Passage Curding Chamber can be ensured while meeting the maturation requirements of different materials. If you have further needs or questions, please feel free to consult us at any time.
Our Sci Tech Innovation team will provide one-on-one service for you.
FAQ：
Q: How to choose the right Slitting Machine?
A: After clarifying your production needs, including the specific material type and the required cutting size and accuracy. Among them, the quality and durability of the blade are the basis for ensuring continuous and stable production. High-quality blades can not only ensure better cutting effects, but also need to consider the degree of automation of the equipment according to actual needs. Whether automatic feeding or automatic counting functions are required to choose a suitable Standard Slitting Machine.
A: Before adjusting the cutting parameters of the slitting machine, make sure that the equipment is completely stopped and the power is disconnected. Carefully check the condition of the blade to confirm whether it is cracked, deformed or worn. Adjust the cutting thickness according to the material characteristics. Adjust the angle and position of the blade by rotating the screw on the blade to ensure that the blade is parallel to the cutting table and the gap is appropriate. During the entire adjustment process, safety is always the first priority, and always pay attention to avoid touching the blade area with your hands. After the adjustment is completed, conduct a trial run to observe the cutting effect. If the effect is not ideal, further fine-tune the relevant parameters.
Q: What are the causes and solutions for abnormal noise in the slitting machine?
A: Check whether the blade of the equipment is loose or worn, pay attention to whether there are loose parts inside the equipment, and confirm whether the equipment lacks lubrication.
Solution: Tighten loose parts, replace worn blades, and lubricate moving parts regularly
Hot Tags: standard slitting machine, entry-level cutting equipment, 200m/min speed, SME solution
