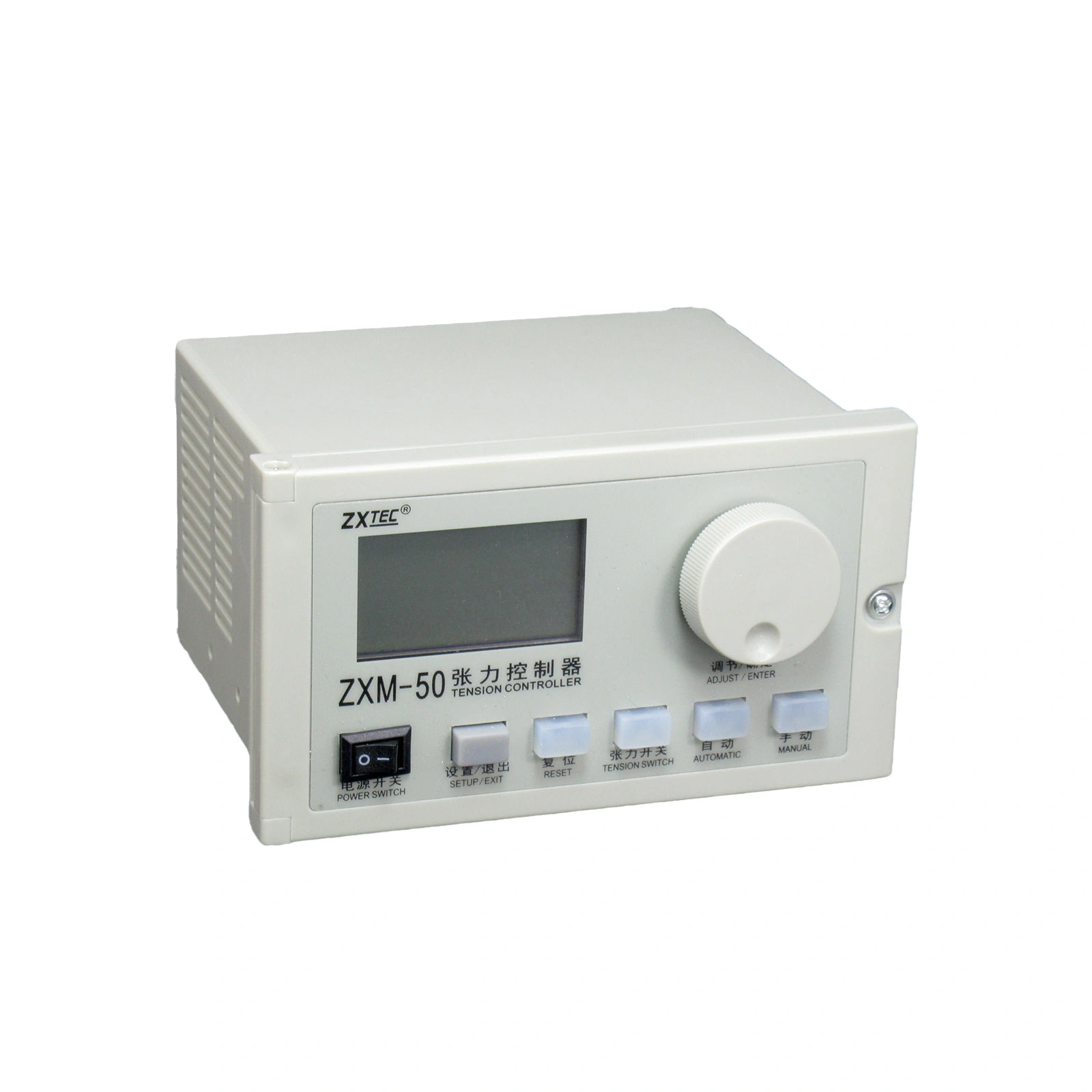

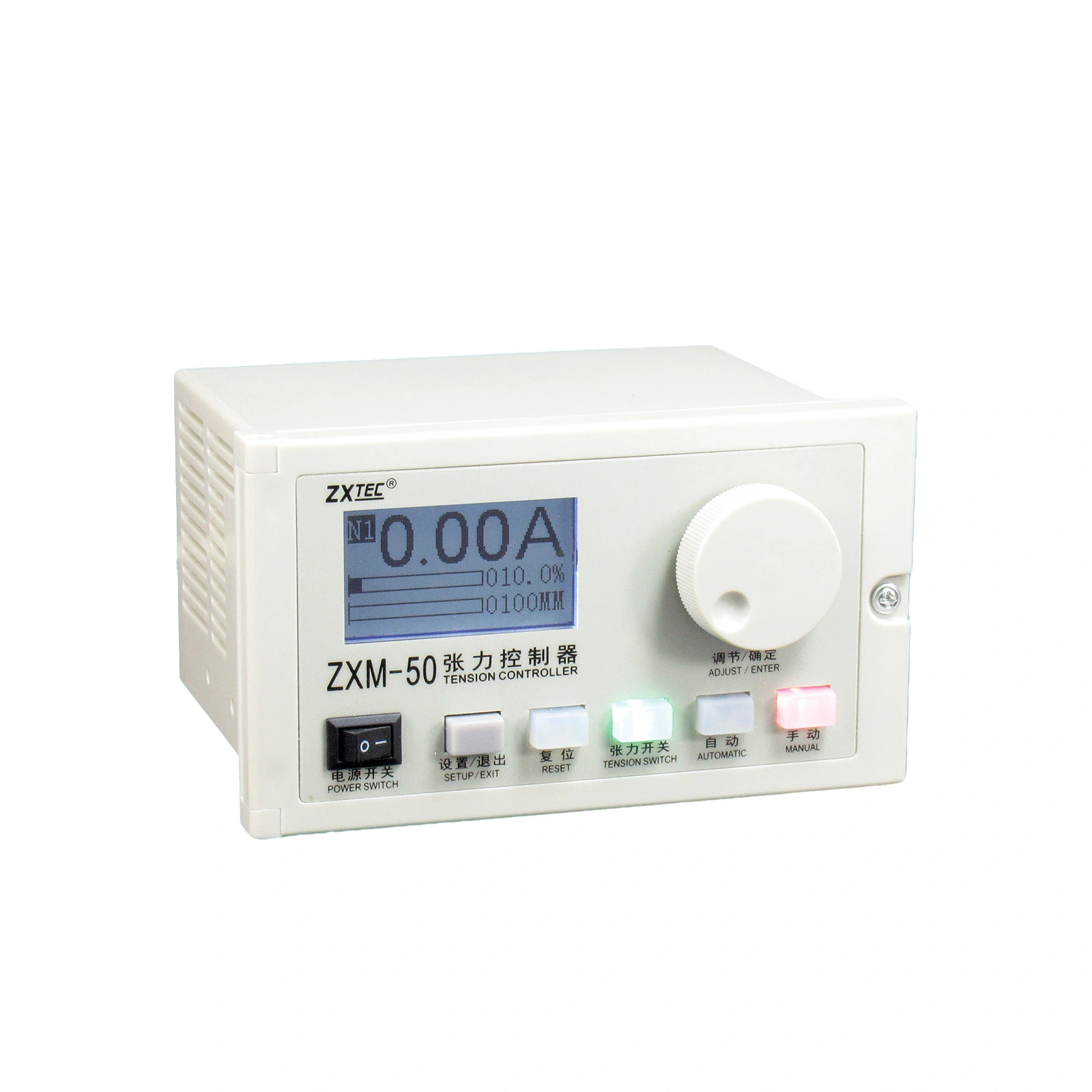

ZXM-50 All-purpose Taper Tension Controller

ZXM-50 All-purpose Taper Tension Controller is a high-precision taper controller with intelligent calculation of winding diameter. Its principle is that the controller detects the speed of the traction reference shaft and the coil shaft at the same time, and calculates the winding diameter of the material on the current coil shaft according to the speed difference between the two shafts and the preset traction reference roller diameter, thereby realizing taper tension control. This taper tension controller is not suitable for mechanical transmission structures with large speed fluctuations or intermittent operation.

1. Improve winding quality: ZXM-50 All-purpose Taper Tension Controller can automatically adjust the tension according to the change of the coil diameter, so that the tension distribution of the inner and outer layers of the coil during the winding process is more reasonable, effectively avoiding the quality problems of the coil such as wrinkles, deformation, and loose winding, and improving the overall quality and appearance of the product.

2. Adapt to a variety of materials and processes: By adjusting the taper parameters, it can adapt to the processing of coils of different materials (such as soft materials, hard materials) and different winding speeds. For different production processes, such as high-speed winding and low-speed winding, it can also provide appropriate tension control, with strong adaptability.

3. Precise control: Compared with some simple tension control methods, ZXM-50 All-purpose Taper Tension Controller uses advanced detection and control technology to control tension more accurately, especially in production processes with high tension accuracy requirements (such as high-end film manufacturing, precision electronic material processing, etc.).
