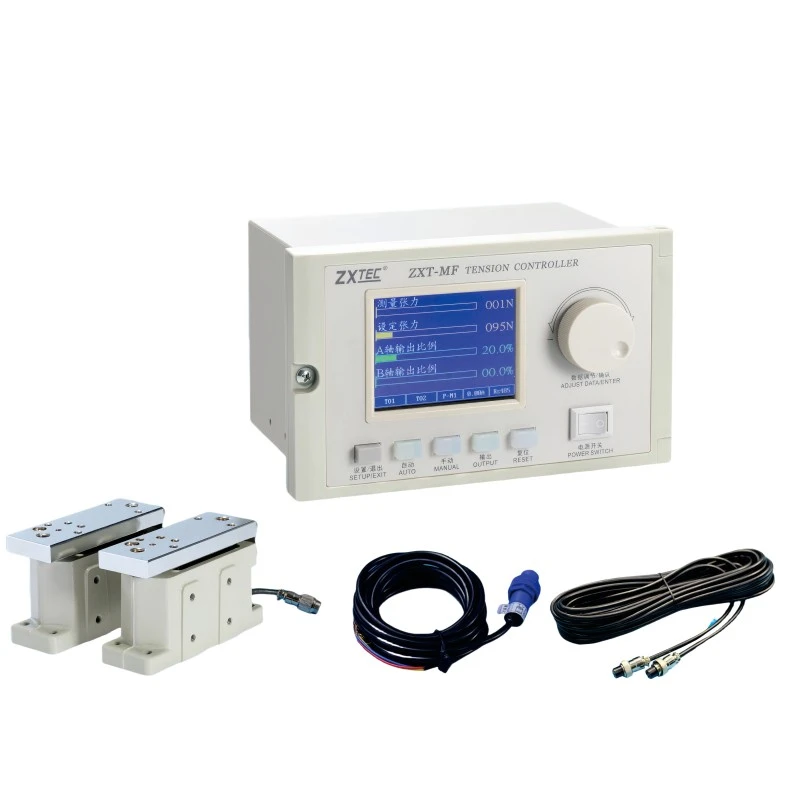

Automatic Constant Tension Controller
The following is the introduction of high quality Automatic Constant Tension Controller, hoping to help you better understand ZXT-MF Automatic Constant Tension Controller. Welcome new and old customers to continue to cooperate with us to create a better future!
Automatic Constant Tension Controller is a multifunctional tension controller. Its internal program integrates the functions of automatic constant tension control with tension detector feedback, taper tension control and synchronous tension control. Users can choose to use it according to different application occasions. The tension controller uses a 32-bit ARM processor, which can greatly improve the working speed and stability. The display uses a high-resolution 3.2-inch color LCD touch screen, which makes the display more intuitive and the operation more convenient. The computer board uses patch components to make the controller have strong anti-interference ability and small size. ZXT-MF automatic constant tension control can be widely used in various mechanical equipment for precise measurement and control of tension.
Features:
★ Color LCD touch screen
★ Chinese or English display
★ Convenient parameter setting
★ With double-station shaft exchange output function
★ With Modbus 485 communication interface
★ Chinese or English display
★ Convenient parameter setting
★ With double-station shaft exchange output function
★ With Modbus 485 communication interface
Parameters Table
| Main output mode | DC 0-2A constant current output (adaptive load impedance 8-12Ω) |
| Signal output interface | 2-way DC 0-5V (MAX 10MA) output proportional analog signal output 1-way DC 0-5V (MAX 10MA) tension measurement analog signal output 2-way switch signal output |
| Signal input interface | 3A 2-way tension detector signal input2-way DC 0-5V analog signal input4-way switch signal input |
| Communication function | RS-485 can realize tension controller and PLC communication |
| Panel size | 180×110×112(mm)(width×height×depth) |
| Installation size | 163×102×97(mm)(width×height×depth) |
| Power supply | AC 180-245V 50/60Hz |
Hot Tags: Automatic Constant Tension Controller, closed-loop control system, ±1% stability, servo motor compatible
