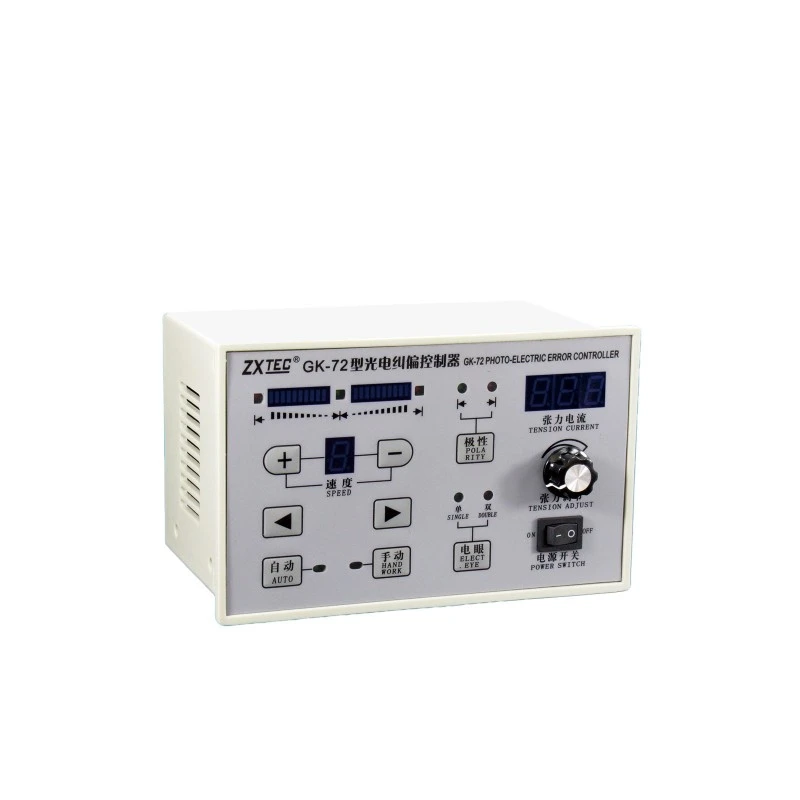

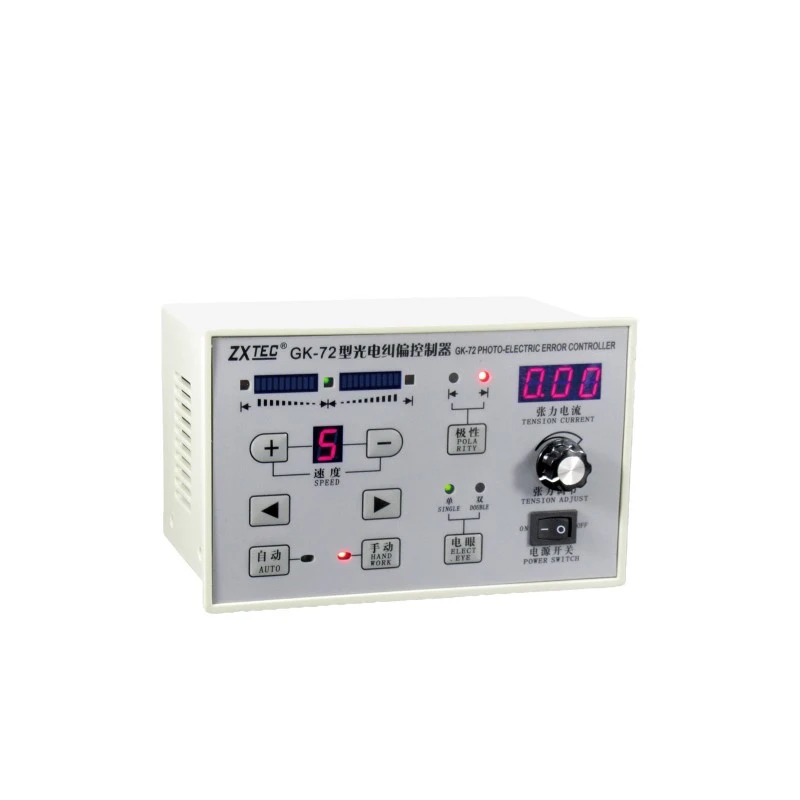

GK-72 Automatic Photoelectric Correction Controller
Xiamen Kechuang Electromechanical Technology Co., Ltd as the professional manufacture, we would like to provide you GK-72 Automatic Photoelectric Correction Controller. And we will offer you the best after-sale service and timely delivery. With competitive prices and reliable delivery services, we are expecting become your long-term partner in China.
The core of GK-72 Automatic Photoelectric Correction Controller adopts the most advanced single-chip microcomputer for centralized control, so that it can choose single electric eye and double electric eye for correction work. The single electric eye has added the function of adjusting the correction response speed, which can effectively reduce the vibration and noise caused by correction. The automatic photoelectric correction controller can perform correction control on materials such as paper and film after cooperating with the photoelectric eye and correction actuator, and can be widely used in mechanical equipment such as slitting machines and printing machines.
Features:
★ Built-in intelligent single-chip control
★ Adjustable correction response speed
★ Single-eye or double-eye correction available
★ Customizable line and edge following
★ External control interface available
★ Adjustable correction response speed
★ Single-eye or double-eye correction available
★ Customizable line and edge following
★ External control interface available
Parameters Table
| Item | GK-72 Automatic Photoelectric Correction Controller |
| Response time | 1MS-50MS (adjustable) |
| Correction accuracy | Depending on the photoelectric eye |
| Output power | 3A |
| Detection method | Edge detection/line following |
| Correction method | Single photoelectric eye/double photoelectric eye |
| External interface | Manual/automatic; left/right |
| Tension output | 0-3A constant current output |
| Accessories (optional) | Photoelectric eye, synchronous motor, ball screw |
| Dimensions | 190×120×125(mm)(width×height×depth) |
| Installation dimensions | 183×112×125(mm)(width×height×depth) |
| Operating voltage | AC220V±15% 50Hz |
Hot Tags: GK-72 Automatic Photoelectric Correction Controller, printing registration device
