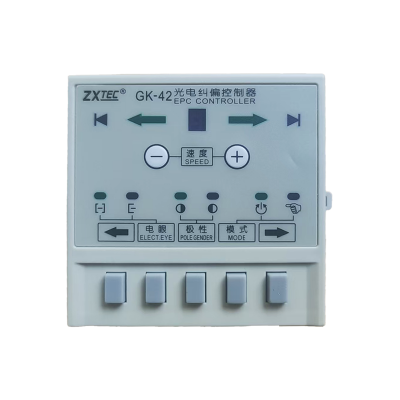

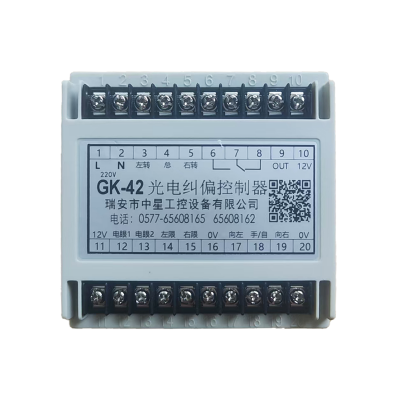

GK-42 Switch Type Digital Correction Controller

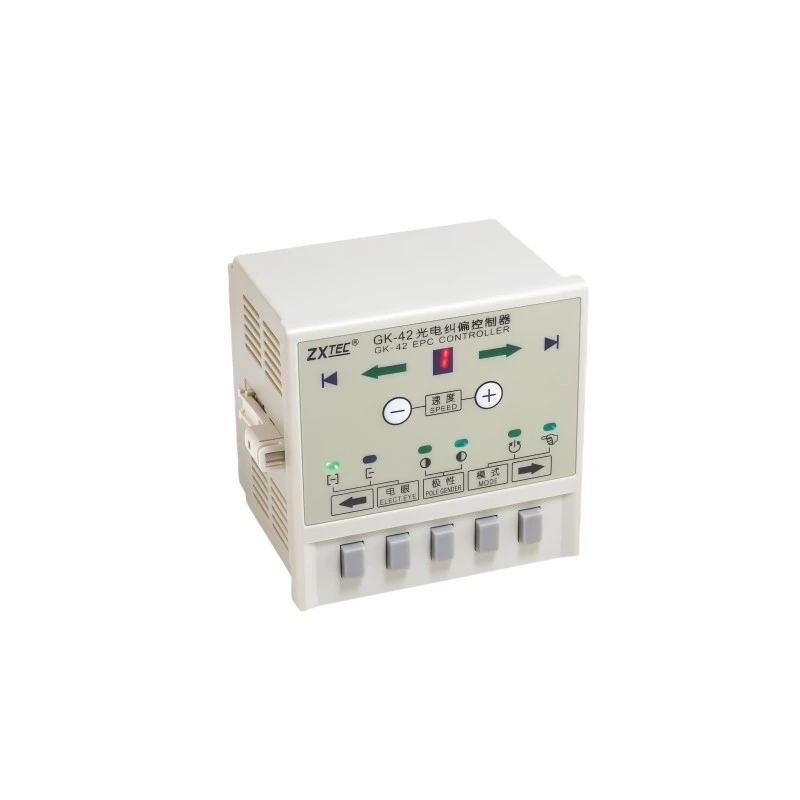

Kechuang's GK-42 Photoelectric Correction Controller is a high-precision automatic web guiding device designed for coil material processing production lines. The installation and commissioning process is simple and convenient, with excellent versatility and adaptability, enabling rapid integration with various automated coil material production lines such as printing, laminating, slitting, and bag-making. The equipment monitors the running status of coil materials in real time, promptly correcting material deviation issues to ensure smooth material transport, effectively reducing material waste, and improving finished product quality.
The GK-42 Photoelectric Correction Controller has a compact size and convenient installation. It provides correction control for various web materials including paper, plastic film, non-woven fabric, woven fabric, and metal foil. Based on the different printed patterns of the correction material, users can select between edge detection and line detection modes, with flexible configuration for single or dual photoelectric eye detection. The controller is equipped with a permanent magnet low-speed synchronous motor as the actuator. Depending on user requirements, either ball screws or standard screws can be selected to establish a precise proportional relationship between the correction drive stroke and the coil deviation.
Features:
★ Built-in intelligent microcontroller control
★ Adjustable correction delay settings
★ Single or dual photoelectric eye correction options
★ Customizable line-following and edge-following modes
★ External control interface provided
Parameters Table
| Name | GK-42 Switch Type Digital Correction Controller |
| Response time | 1MS-50MS (adjustable) |
| Correction accuracy | Depending on the photoelectric eye |
| Output power | 50-500W |
| Detection method | Edge detection/line following |
| Correction method | Single photoelectric eye |
| External interface | Manual/automatic; left/right |
| Tension output | 0-3A constant current output |
| Accessories (optional) | Photoelectric eye, synchronous motor, ball screw |
| Dimensions | 96×96×100(mm)(width×height×depth) |
| Installation dimensions | 92×92×90(mm)(width×height×depth) |
| Operating voltage | AC220V±15% 50Hz |
Key Features:
1. The GK-42 series supports both edge-following and line-following correction modes. Users can select the appropriate correction method based on different material properties, ensuring accurate and efficient correction.
2. The controller offers single or dual electric eye detection options to meet diverse inspection needs, offering strong adaptability.
3. Utilizing micro-touch switches and single-chip intelligent control technology, it features automatic detection, tracking, and correction functions, ensuring stable operation at high-speed transmission and improving production efficiency.
4. Designed to be compatible with various analog output devices, including photoelectric sensors, this system enhances overall system performance.
2. The controller offers single or dual electric eye detection options to meet diverse inspection needs, offering strong adaptability.
3. Utilizing micro-touch switches and single-chip intelligent control technology, it features automatic detection, tracking, and correction functions, ensuring stable operation at high-speed transmission and improving production efficiency.
4. Designed to be compatible with various analog output devices, including photoelectric sensors, this system enhances overall system performance.
Main Functions:
The GK-42 series supports both edge-following and line-following correction modes. Users can select the appropriate correction method based on different material characteristics, ensuring precise and efficient correction results.
1. The GK-42 Switch Type Digital Correction Controller supports two correction modes: edge correction and line correction. Users can choose the appropriate correction method based on the characteristics of different materials to ensure precise and efficient correction results.
2. The controller offers options for single or dual eye detection to meet various detection requirements and has strong adaptability.
3. Utilizing microswitches and single-chip microcomputer intelligent control technology, it features automatic detection, automatic tracking, and automatic correction functions, enabling stable operation in high-speed transmission and enhancing production efficiency.
4. The design is compatible with various analog output photoelectric sensors and other equipment to improve the overall performance of the system.
