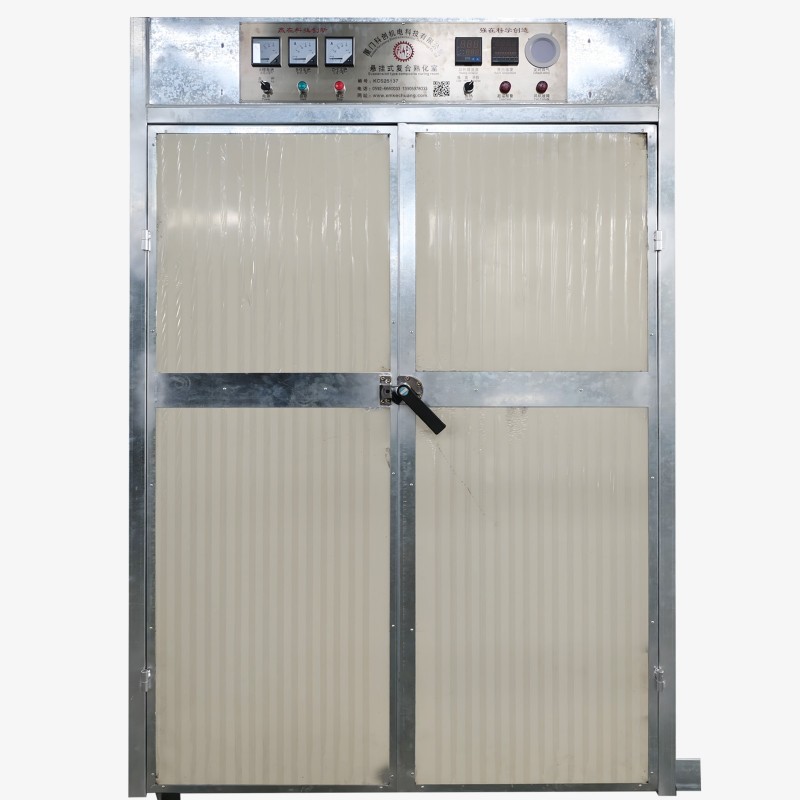

Standard Curing Chamber with ERP

The Standard Curing Chamber with ERP not only eliminates tedious manual operations in the composite film curing room's loading, unloading, and storage processes, significantly improving production efficiency, but also provides strong assurance for product quality through accurate data statistics and intelligent alerts. This intelligent, interconnected, innovative design empowers the entire production process, achieving closed-loop management from data collection, dynamic monitoring, and decision-making optimization. It not only shifts the composite film curing process from "experience-driven" to "data-driven," but also becomes a crucial step in the company's pursuit of intelligent manufacturing.

As a critical step in product quality, the performance of the composite film curing control system directly determines production efficiency and product stability. Leveraging intelligent temperature control technology and a fully connected model, the Standard Curing Chamber with ERP offers a novel control system that integrates safety, stable operation, convenient operation, and centralized management, completely breaking free from the wiring and management limitations of traditional equipment.
What are the advantages of the Standard Curing Room with ERP?

1. Reduced Labor Costs: By replacing traditional manual record-keeping, timekeeping, and inventorying tasks, it reduces labor input and prevents quality losses caused by human error.
2. Improved Product Quality Stability: Through precise time control and process parameter monitoring, each roll of composite film is cured more uniformly, improving quality acceptance rates.
3. Optimized Production Collaboration: Data transparency throughout the entire process allows for sharing curing chamber operating status and inventory status to the office and mobile devices, enabling remote cloud control. This enables managers to more precisely allocate resources and coordinate processes, shortening production cycles.
4. Comprehensive Safety Features: Over-temperature protection, over-current protection, leakage protection, timed shutdown, timed exhaust, phase loss protection, overvoltage protection, and anti-drop protection.

Cabinet Support Steel: 50*50 and 50*100 galvanized pipes welded together, with 480mm spacing, featuring ERP heavy-duty semi-disassembly mode.
Cabinet Insulation: 50mm rock wool color-coated steel sandwich panels.

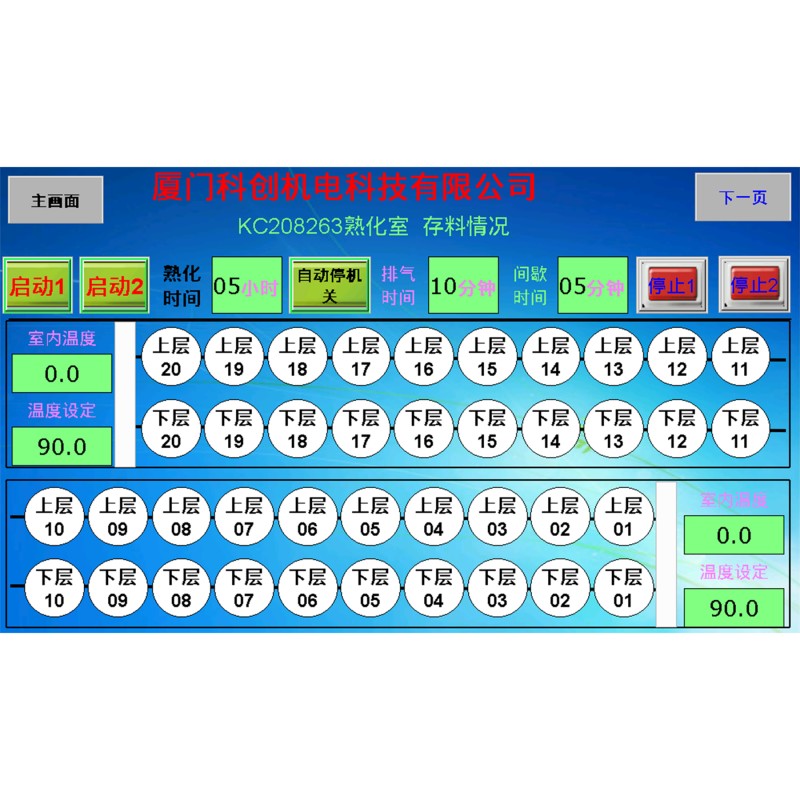

Electrical Controls: Schneider low-voltage electrical appliances with over-temperature protection, timed shutdown, timed exhaust, phase loss protection, and overload protection. ERP system: Delta PLC, sensors, Mean Well switching power supply, Delta touch screen.
Circulating air system: One 550W centrifugal fan with downward exhaust, upward exhaust, and return air. The heating system is located on the top of the cabinet.
Exhaust system: One 180W exhaust fan with two timers (configurable: exhaust time and stop time).
Heating: One electric heating system, multi-tube mode (12 lines total), 9kW + 9kW = 18kW, with high and low temperature options.
Material loading and unloading: Front-to-back loading, easy to open and close. Door frame: Galvanized sheet 2.0. Color-coated steel sandwich panel door.
Supplied accessories: 1. 20 feeding rollers (2-inch galvanized pipe, four 6305 bearings per roller).
Number of layers: Two layers, C-shaped heavy-duty tracks, with the lowest film roll center 650mm above the ground. Track spacing is 850mm. Operating Temperature: Adjustable from 40°C to 80°C, with a ±2°C tolerance.

Maximum film roll capacity: Ø800mm, weighing 400kg, and 1180mm wide.

Specifications: External dimensions: 5890mm long, 1500mm wide, and 2500mm high; indoor dimensions: 5700mm long, 1180mm wide, and 2200mm high. (Custom dimensions available upon request.)
Total Power: 19kW (380V, three-phase, five-wire, using national standard cable: 3x10mm + 2x4mm; must be reliably grounded).
