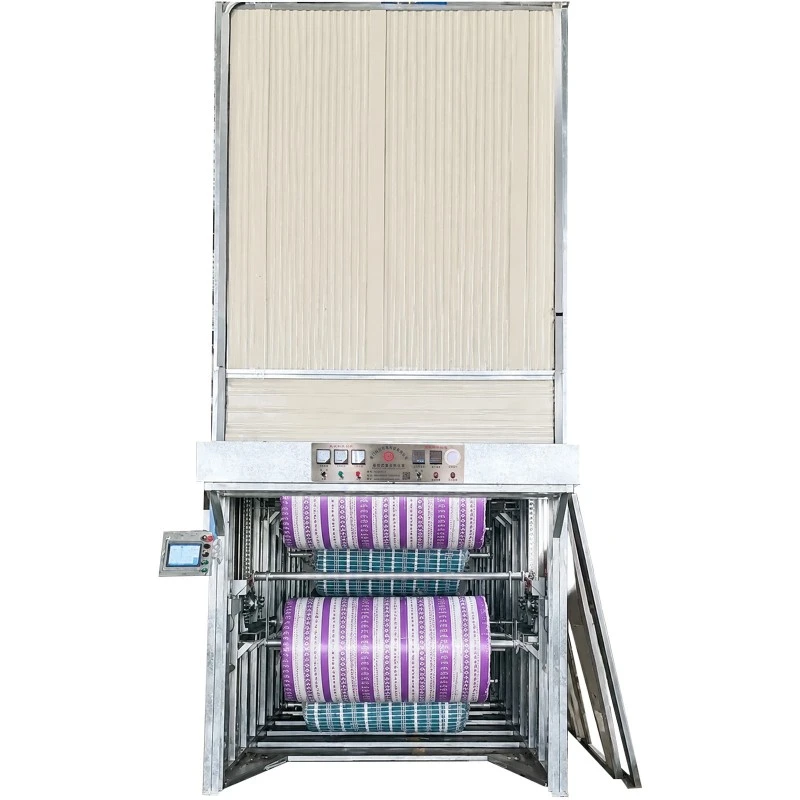

Circular Curing Room

Kechuang manufactures the Circular Curing Room with a unique circulating feeding design and single-door operation, providing a simple, convenient, and reliable material handling experience for modern industrial production. The power system adopts an integrated combination structure of a motor, reducer, and chain, delivering smooth transmission, strong load-bearing capacity, and exceptional durability to ensure a stable, jam-free material handling process throughout.

The intelligent control module is equipped with a Delta PLC programmable controller and a 10-inch high-definition touch screen. The operation interface is clean and intuitive, with precise and flexible parameter adjustments. Operations such as equipment debugging, process setting, and operational monitoring can be completed quickly. The curing process requires no manual intervention, achieving fully automatic and precise control of the curing process to ensure uniform and stable curing results, providing solid equipment support for standardized, intelligent, and efficient enterprise production.

Technical Specifications

• Loop Control System: Delta PLC + 10-inch Touch Screen

• Circulation System: Motor + Reducer + Chain

• Circulation Air System: One 3000W centrifugal fan (bottom air outlet, top air extraction, return air flow)

• Exhaust System: One 180W exhaust fan, two sets of time controls (freely adjustable: exhaust duration and pause duration)

• Operating Temperature: 40 to 80°C adjustable, temperature error ±2°C

• Electrical Control: Schneider low-voltage electrical components, ultra-high temperature protection, timed shutdown, timed exhaust, phase failure protection, overload protection

• Max Roll Capacity: Diameter ≤ 800 mm, weight ≤ 400 kg, width ≤ 1500 mm

• Heating Method: 1 set of electric heating, multi-tube mode (36 tubes in total), 27KW + 27KW = 54KW, divided into high and low temperature zones

• Body Support Steel: Welded with 50 × 50 mm and 50 × 100 mm galvanized pipes, spaced at 480 mm, heavy-duty loop curing room mode

• Body Insulation Material: 50 mm rock wool color steel sandwich panel

• Number of Tiers: 5 tiers

• Total Power: 60KW (380V, three-phase five-wire)

• Cables: National standard 3 × 32 + 2 × 16 meters, must be reliably grounded

• Door Panels: Color steel sandwich panels

• Door Frame: Made of 2.0 mm galvanized plate

• Material Entry/Exit Method: Single door, convenient opening and closing, motorized lifting door

• Dimensions:

￮ Exterior: Length 9000 × Width 2100 × Height 5700 mm

￮ Interior: Length 8800 × Width 1500 × Height 5500 mm
(Sizes can also be customized according to customer requirements)

• Random Accessories:

￮ 48 material feeding rollers (2inch galvanized pipe, 4 pieces of 6305 bearings per roller)

￮ 1 bottle of glass glue

Application Fields

With the advantages of strong compatibility, high adaptability, and stable performance, the Kechuang Circular Curing Room is widely applied in industries requiring roll material curing, solidification, and setting processing. Core application fields include:

• Flexible Packaging Films: Suitable for the curing and solidification of plastic films such as food packaging films and daily chemical packaging films. It accelerates the cross-linking reaction of adhesives, enhances film bond strength, eliminates delamination and bubbling issues between packaging layers, and meets high-quality production standards for food and daily chemical packaging.

• Functional Films: Adapted for the curing and setting of functional films such as BOPA films and PET/PE composite films. It optimizes film physical properties, enhances solvent and aging resistance, and ensures stability during functional film usage.

• Tapes & Adhesives: Used for the curing and solidification of various adhesive tapes and self-adhesive rolls. It promotes uniform curing of the adhesive layer, enhances colloidal adhesion and stability, and prevents glue shedding, residual glue, and uneven stickiness during use, perfectly fitting the large-scale production of industrial and civilian adhesive products.

Key Advantages

Innovative Structural Design: A Substantial Leap in Space Utilization

Breaking through the shortcomings of traditional planar layout curing equipment, it adopts a multi-layer vertical structure. The spatial layout is scientific and compact, minimizing the equipment's footprint while maximizing internal storage capacity. Under the same factory floor space, the storage capacity far exceeds traditional equipment, effectively revitalizing spatial resources and helping enterprises optimize factory layout and expand production capacity.

Flexible Material Access: Adaptable to All Types of Roll Processing

Eliminating the fixed placement and access restrictions of traditional equipment, the system supports the free access of any roll material without sequence or specification limits. It accommodates roll materials of different sizes, materials, and weights for curing treatment. Convenient and efficient with no need for tedious material arrangement, it significantly saves loading, unloading, and scheduling time, boosting production turnover efficiency for both high-mix/low-volume and large-scale manufacturing modes.

Why Choose Us?

Founded in 2012, Xiamen Kechuang Electromechanical Co., Ltd. operates an integrated system consisting of Xiamen R&D and sales, alongside our production base—Fujian Jiasu Electromechanical Technology Co., Ltd.—located in Nanjing, Zhangzhou.

We specialize in the R&D, customization, production, and global after-sales service of complete sets of flexible packaging and printing equipment. Our core products include Intelligent Composite Curing Rooms, Solventless Laminators, High-Speed Slitters, Coating Machines, AGV Smart Transfer Carts, as well as matching tension/guiding automatic control systems and various printing and packaging consumables.

Upholding the philosophy of "Winning through technological innovation, strengthening through scientific creation," we offer non-standard custom equipment according to customer processes. We provide one-stop services including equipment scheme design, manufacturing, on-site installation and debugging, and maintenance. With import and export qualifications, our products are exported to many countries overseas.

FAQ

What brand of electrical components does this curing room use, and how is their performance?
It uses Schneider low-voltage electrical components, which offer stable electrical performance, long service life, and a low failure rate, laying a solid foundation for the long-term stable operation of the equipment. At the same time, it is equipped with an all-around safety protection system, integrating multiple safety mechanisms such as ultra-high temperature protection, phase failure protection, and overload protection. It can monitor the operating status of the equipment in real-time to avoid failures and safety hazards in a timely manner. The equipment also supports smart programming for timed exhaust and timed shutdown, allowing running parameters to be customized according to production needs. This high degree of automation ensures precise process execution while greatly enhancing operational safety and convenience.

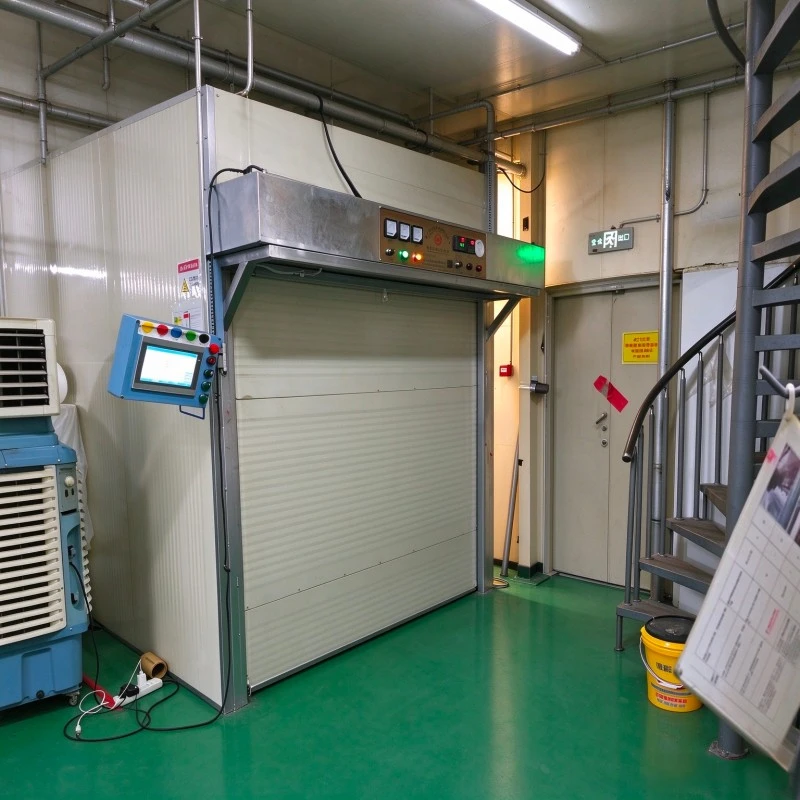

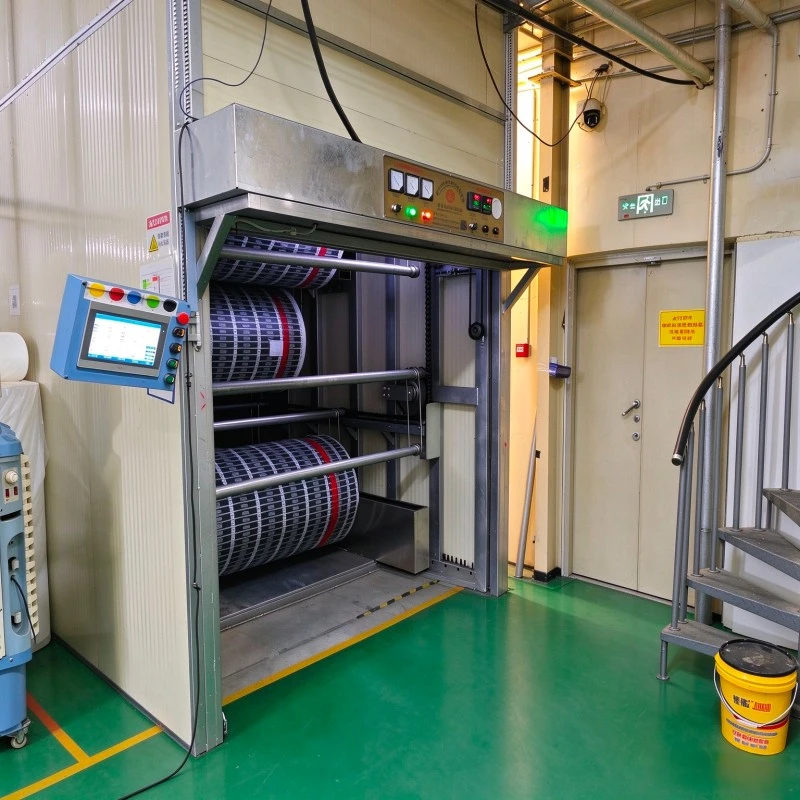

Note: Below are installation photos of the Circular Curing Room at the customer's workshop, fully tested and ready for operation.
