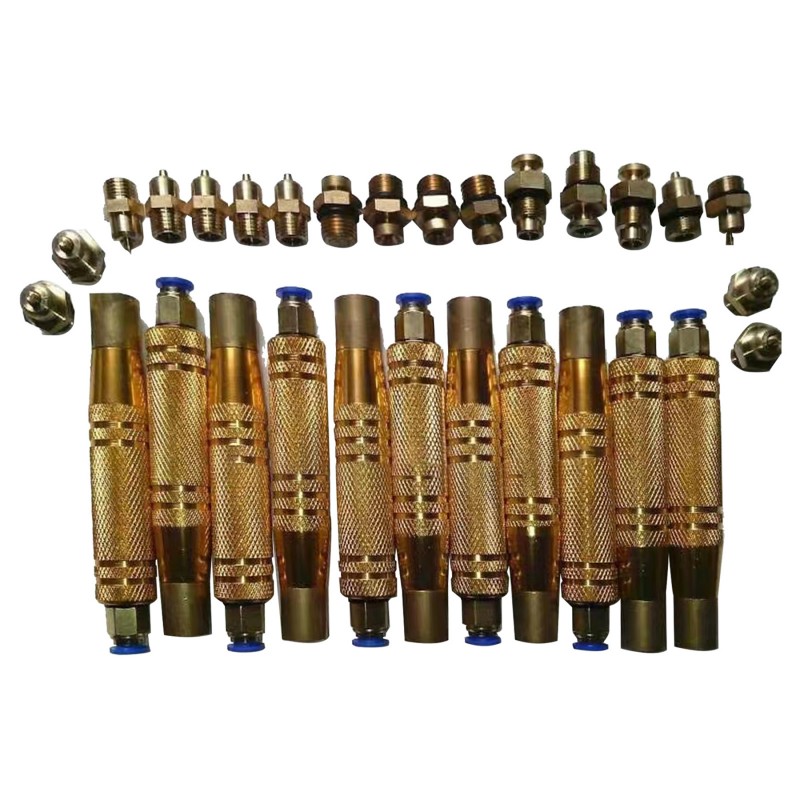

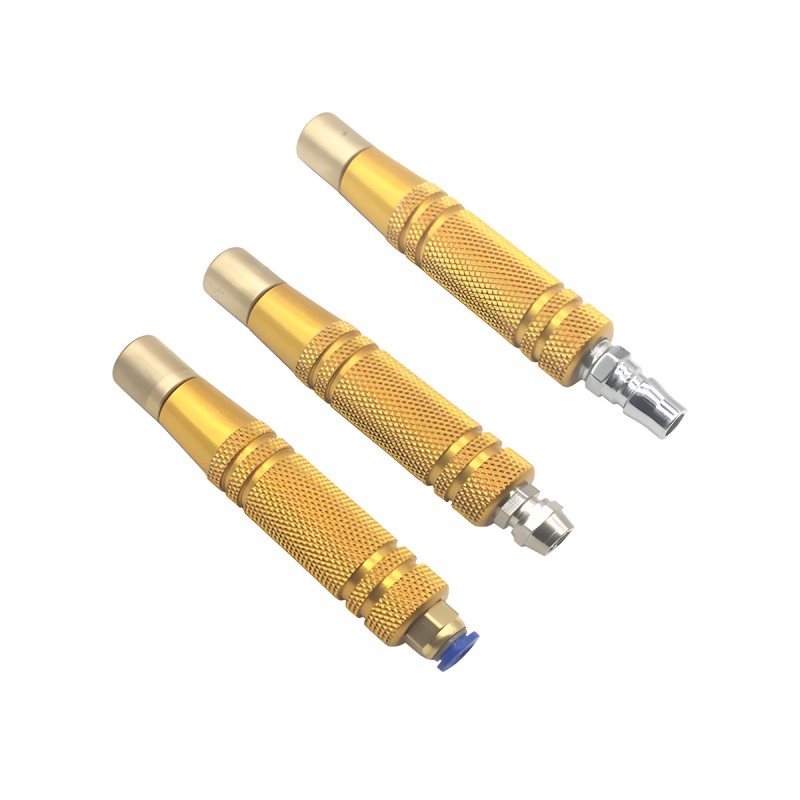

Air Shaft Accessories Air Gun

When inflating, the air gun is connected to the air nozzle of the air shaft, and the air bag of the air shaft is inflated to expand, thereby fixing and supporting items such as coils. After processing, the air gun of the air shaft accessories can be used to release the gas in the air shaft to shrink the air bag, which is convenient for removing the processed coil from the air shaft, or replacing coils of different specifications.
The inflation speed of the Air Shaft Accessories Air Gun is very fast, and the air shaft can be inflated to the required air pressure in a short time, which improves work efficiency and reduces the standby time of the equipment. During the inflation and deflation process, the high-quality air gun of the air shaft accessories can ensure good sealing, prevent gas leakage, and ensure that the air shaft can stably maintain the required air pressure, thereby ensuring the fixing effect of the coil.
The air gun of the air shaft accessories is simple in design and easy to operate. You only need to align the inflation nozzle of the air gun with the air nozzle of the air shaft, press the inflation or deflation button, and you can easily complete the inflation and deflation operations. You can master the use method without complicated training.

Gun head diameter: Φ8mm, Φ14mm, etc., which must match the specifications of the air nozzle of the air shaft
Applicable air source pressure: 0.5-0.8MPa, adjusted according to the specific requirements of the air shaft
Material: Pure copper inflation head
Connection method: plug-in type

Air guns for air shaft accessories are widely used in industrial scenarios that require winding, slitting or fixing materials. The main application areas are: printing industry, papermaking industry, packaging industry, etc. For example, the printing industry is used in offset printing, flexographic printing, gravure printing and other printing equipment to quickly inflate and deflate air shafts to facilitate the installation and removal of plate cylinders, impression cylinders and printing material rolls. In label printing, the air gun for air shaft accessories is used in conjunction with the air shaft to accurately position and fix the label material roll to ensure the registration accuracy and quality of label printing.
