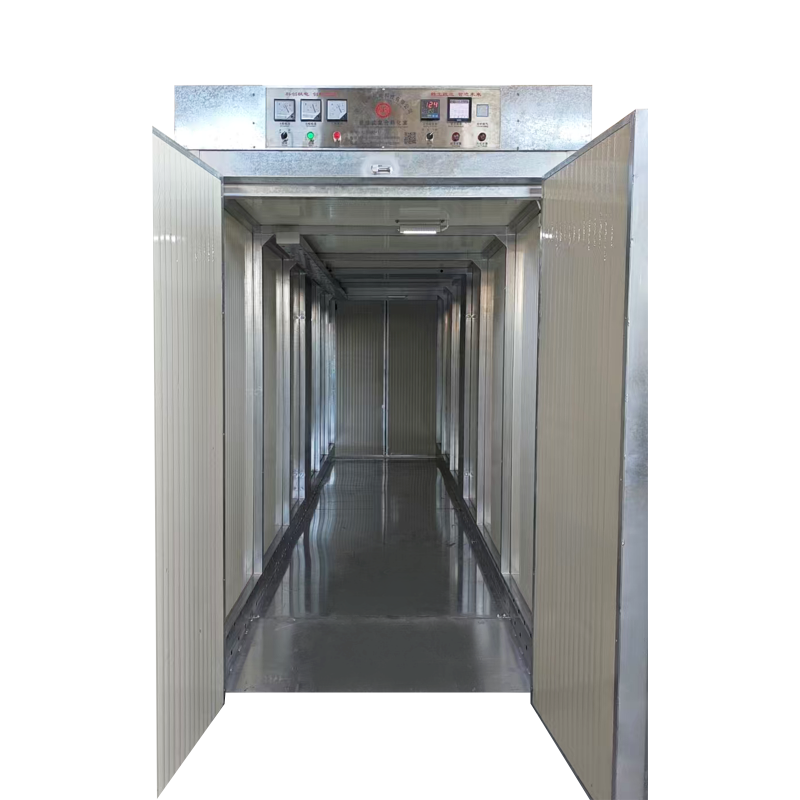

Standard High-Temperature Curing Chamber

Details

The Standard High-Temperature Curing Chamber provides a stable and controllable working environment for products requiring high-temperature heat treatment, and is a mature and reliable high-temperature curing equipment in the industry. The equipment offers a wide and flexible temperature control range, adjustable from 40°C to 150°C, covering various process requirements including low-temperature static curing, medium-temperature curing and setting, and high-temperature drying and ripening, adapting to the curing production standards of most industrial products. It effectively addresses industry pain points such as large temperature deviations, uneven heating, and poor adaptability, providing a stable and reliable production environment for the curing and ripening processes of various products.

What are the advantages of this curing chamber?

1. Precise and stable temperature control

The intelligent control system allows temperature adjustment from 40-150°C with minimal tolerance (±2°C). It dynamically and precisely regulates heating power to match real-time heat loss in the chamber, rapidly compensating for temperature differentials and eliminating the temperature fluctuations and instability commonly seen in traditional equipment during the constant-temperature phase.

2. Uniform heat distribution

Equipped with a 2200W centrifugal fan, the system features air out from the bottom, air return from the top, and recirculated airflow. The internal heat circulation is uniform, with minimal temperature differences across all areas of the chamber, achieving balanced heating throughout. This ensures that every batch of products receives consistent ripening and curing treatment, guaranteeing uniformity and standardization of curing results from the hardware perspective.

3. Energy-efficient insulation

The 50mm rock wool color steel sandwich panels provide excellent thermal insulation, significantly reducing heat loss and lowering energy consumption. This design not only maintains stable internal temperatures but also contributes to long-term cost savings on electricity and operational expenses.

4. Comprehensive safety protection

The curing chamber is equipped with multiple safety features, including over-temperature protection, overload protection, leakage protection, and phase-loss protection. These systems automatically cut off power and trigger alarms in case of abnormal conditions, ensuring safe and reliable operation at all times.

5. Sturdy and durable construction

The frame is constructed from 50×50mm and 50×100mm galvanized steel pipes with precision welding, providing excellent load-bearing capacity and structural rigidity. The robust design resists deformation under long-term heavy use, ensuring a long service life with minimal maintenance.

6. User-friendly operation and flexible customization

The intelligent control system features a clear and intuitive interface, allowing operators to easily set parameters, monitor real-time conditions, and program timed shutdown. In addition, the chamber dimensions, number of layers, temperature range, and rail configurations can all be customized according to specific production requirements, making it suitable for a wide variety of industrial applications.

Parameters

Comparison Between Standard Model and Heavy-Duty Model

Recent Shipment at a Glance

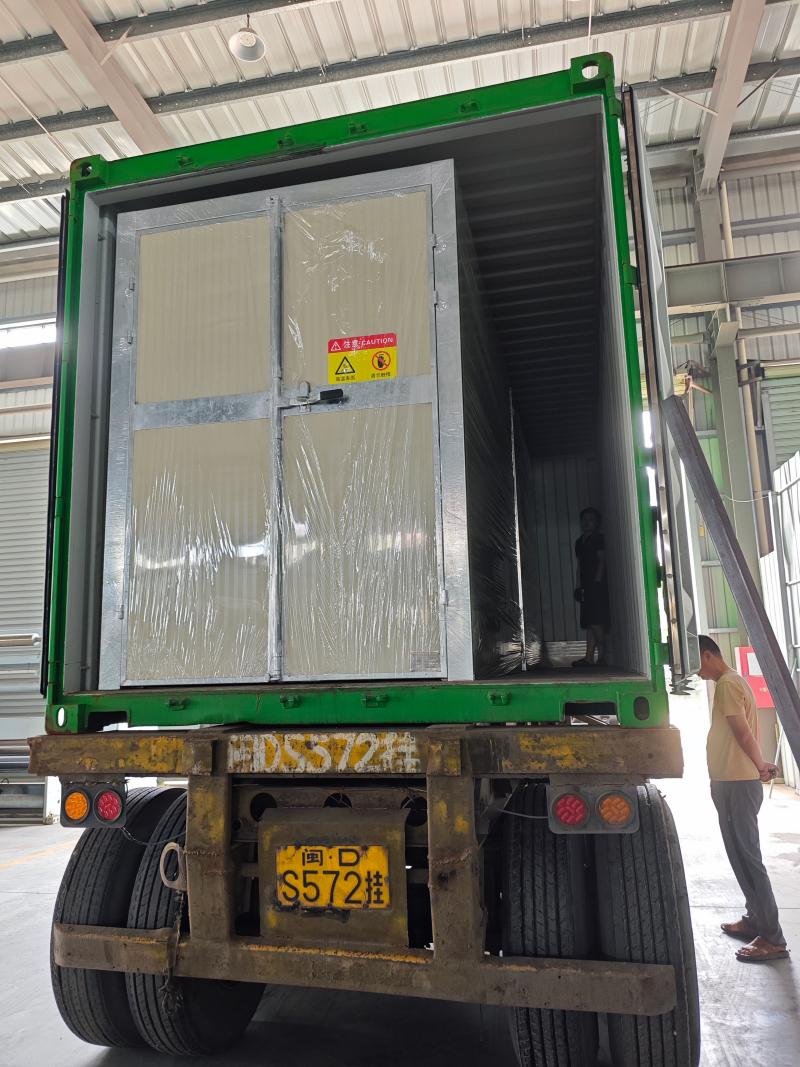

Kechuang is a professional manufacturer of ripening and curing equipment, with products selling well both domestically and internationally. We can customize different types and functions of curing chambers according to customer requirements. Recently, a customer from Vietnam visited our factory and, after careful inspection, customized this Standard High-Temperature Curing Chamber. It has been successfully shipped on the date agreed upon by both parties in the contract.
