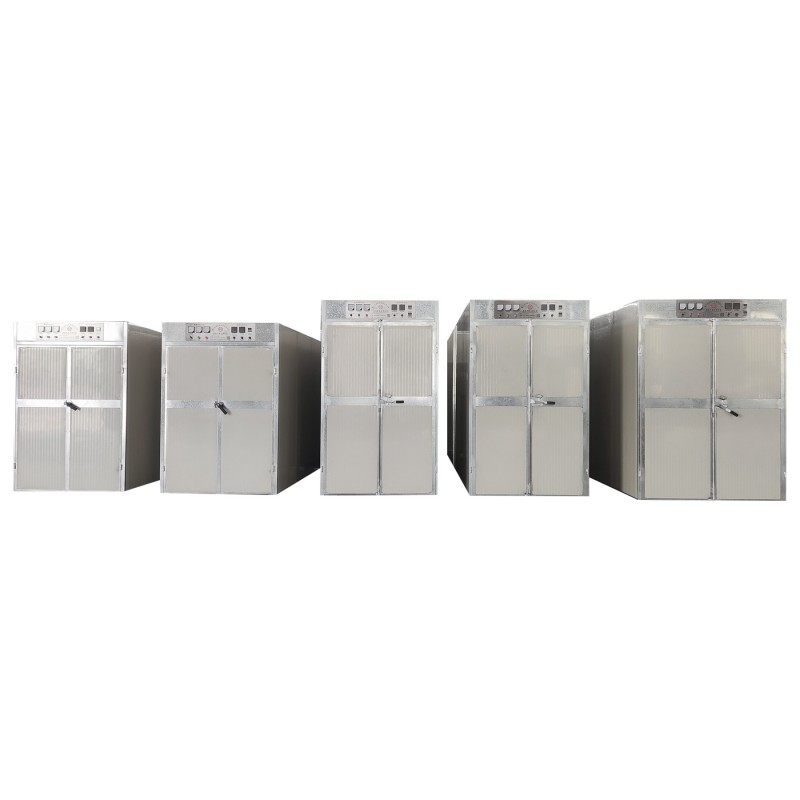

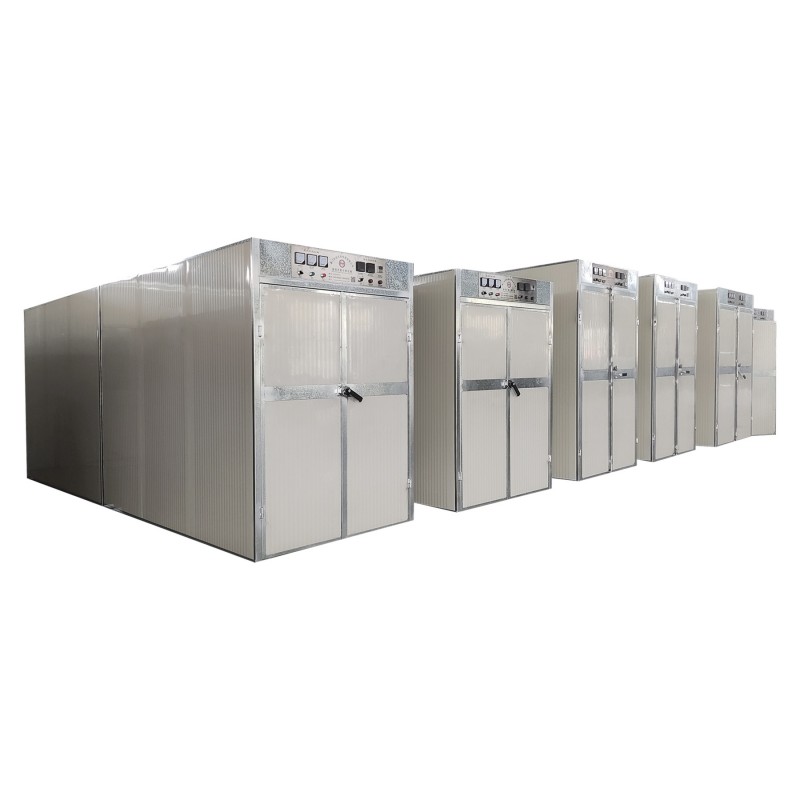

High-Temperature Curing Chamber
High-Temperature Curing Chamber has an adjustable temperature range of 40-150℃. It can accurately control the heating power according to the set temperature value, so that the temperature in the curing chamber remains stable and the heating is uniform, meeting the strict requirements of different products on the curing temperature.
Xiamen Kechuang Electromechanical Technology Co., Ltd. was established in 2012. It is a high-tech comprehensive company integrating R&D, production, sales and service. Our high-temperature plastic composite curing chamber box adopts high-quality, 100mm thick rock wool color steel sandwich panel, which can reduce heat loss and maintain stable indoor temperature during the heating process of the curing chamber.
The operation control and safety monitoring devices of High-Temperature Curing Chamber are complete and complete, the heating process is fully automatically controlled, the timed shutdown is fast, the operation is simple and the installation is convenient. There are also safety devices such as alarm system, leakage protection, fan overload protection, over-temperature protection, etc. to ensure the safe operation of the equipment. The product specifications and configuration parameters of High-Temperature Curing Chamber can be customized according to user needs, including the size, temperature range, load capacity, etc. of the curing chamber to adapt to different production scales and product requirements.
The operation control and safety monitoring devices of High-Temperature Curing Chamber are complete and complete, the heating process is fully automatically controlled, the timed shutdown is fast, the operation is simple and the installation is convenient. There are also safety devices such as alarm system, leakage protection, fan overload protection, over-temperature protection, etc. to ensure the safe operation of the equipment. The product specifications and configuration parameters of High-Temperature Curing Chamber can be customized according to user needs, including the size, temperature range, load capacity, etc. of the curing chamber to adapt to different production scales and product requirements.
Parameters
1. Operating temperature: 40-150℃ adjustable, temperature error ±2℃.
2. Maximum film roll: ￠500mm, weight 200kg, width 1200mm.
3. Specifications: Appearance: length 1800*width 1800*height 1800, indoor: length 1500*width 1500*height 1500.
4. Total power: 37KW (380V, three-phase five-wire, using national standard cable: 3*16+2*6, must be reliably grounded).
5. Number of layers: two layers, C-type track, the lowest film roll center is 450mm from the ground. Track spacing 500mm.
6. Box support steel: 50*50 and 50*100 galvanized pipes welded together, 480mm interval, high temperature fixed mode.
7. Box insulation material: 100mm rock wool color steel sandwich panel.
8. Material entry and exit method: front and back, easy to open and close. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
9. Circulating air system: 1 2200W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
10. Heating method: 1 set of electric heating, multi-tube mode (24 in total), electric heating 18KW*2 gears = 36KW, divided into high and low temperatures.
11. Electrical control: Delixi low-voltage electrical appliances, ultra-high temperature protection, timed shutdown, phase loss protection, overload protection.
12. Random accessories: 1. 8 threading rollers (2-inch galvanized pipes, 4 6305 bearings each) 2. 1 bottle of glass glue.
2. Maximum film roll: ￠500mm, weight 200kg, width 1200mm.
3. Specifications: Appearance: length 1800*width 1800*height 1800, indoor: length 1500*width 1500*height 1500.
4. Total power: 37KW (380V, three-phase five-wire, using national standard cable: 3*16+2*6, must be reliably grounded).
5. Number of layers: two layers, C-type track, the lowest film roll center is 450mm from the ground. Track spacing 500mm.
6. Box support steel: 50*50 and 50*100 galvanized pipes welded together, 480mm interval, high temperature fixed mode.
7. Box insulation material: 100mm rock wool color steel sandwich panel.
8. Material entry and exit method: front and back, easy to open and close. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
9. Circulating air system: 1 2200W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
10. Heating method: 1 set of electric heating, multi-tube mode (24 in total), electric heating 18KW*2 gears = 36KW, divided into high and low temperatures.
11. Electrical control: Delixi low-voltage electrical appliances, ultra-high temperature protection, timed shutdown, phase loss protection, overload protection.
12. Random accessories: 1. 8 threading rollers (2-inch galvanized pipes, 4 6305 bearings each) 2. 1 bottle of glass glue.
Application
Used for the aging treatment of plastic composite films, such as food packaging, pharmaceutical packaging, cosmetic packaging and other fields. Through aging, the strength, barrier properties and water resistance of the composite film are improved to ensure the quality and shelf life of the packaged products.
