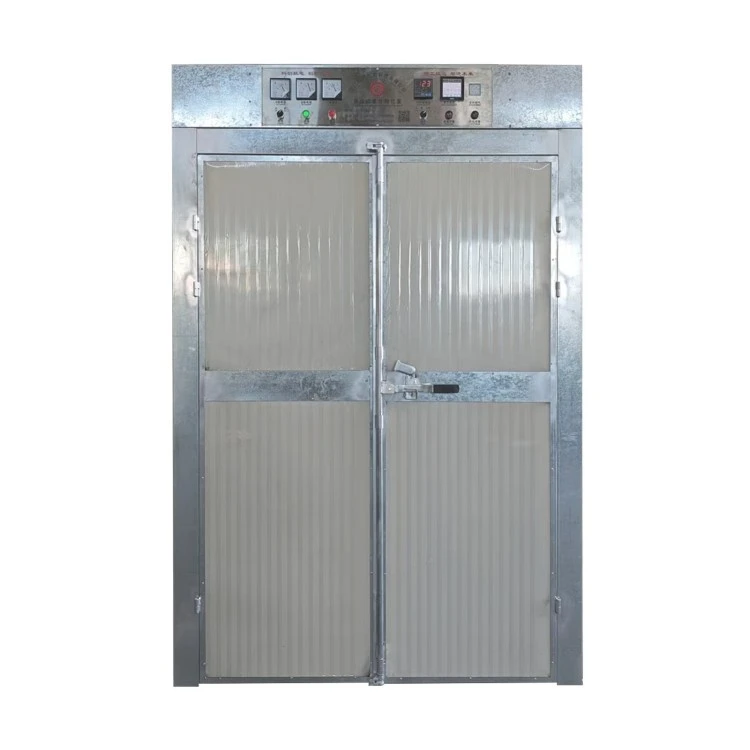

Heavy Duty High Temperature Curing Room

Kechuang Heavy Duty High Temperature Curing Room is equipped with a precise temperature control system that automatically adjusts heating power according to preset parameters. Through real-time closed-loop temperature control, the equipment maintains a stable internal temperature and reduces quality issues caused by temperature fluctuations.
The internal air circulation design ensures uniform heat distribution throughout the curing chamber. Hot air flows efficiently inside the chamber, reducing temperature differences between different areas and helping each batch of materials receive consistent curing conditions.
Designed for different curing process requirements, the temperature parameters can be flexibly adjusted according to specific material characteristics. The equipment is suitable for curing processes involving roll materials, composite materials, and other industrial products requiring stable high-temperature treatment.

Stable Temperature Control for Consistent Curing Quality

The curing quality of industrial materials is highly dependent on temperature stability.
Kechuang Heavy Duty High Temperature Curing Room integrates:
•Automatic heating power adjustment
•Closed-loop temperature monitoring
•High and low temperature control modes
•Uniform hot air circulation system
These functions help maintain stable curing conditions and reduce product defects caused by uneven heating or temperature deviation.

Heavy Duty Structure for Large Material Loads

The equipment adopts a reinforced steel frame structure designed for heavy-duty industrial applications.
Key structural features include:
•50×50mm and 50×100mm galvanized pipe welded frame
•480mm structural spacing
•Two-layer storage design
•C-type heavy-duty track system
The curing room supports large film rolls with a maximum diameter of 800mm and weight up to 400kg, providing reliable support for large-volume production operations.

Efficient Air Circulation and Heating System

The heating system is installed at the top of the curing chamber to improve heat distribution efficiency.
The circulation system includes:
•2200W centrifugal fan
•Bottom air supply
•Top air extraction
•Return air circulation design
This airflow structure helps maintain uniform temperature distribution and improves curing stability.
The electric heating system adopts a multi-tube heating design:
•12 heating tubes
•Total heating capacity: 36KW
•Two-stage heating control: 18KW × 2
•High and low temperature modes

Technical Specifications

Industrial Applications

Kechuang Heavy Duty High Temperature Curing Room is suitable for industrial curing applications including:
•Composite material curing
•Roll material processing
•Film material curing
•Large-batch product maturation processes
•High-temperature industrial treatment processes
The equipment is designed for factories requiring stable temperature control, heavy-load capacity, and continuous production capability.

Standard Export Packaging Protection

To reduce the risk of damage during long-distance transportation, loading, and unloading, Kechuang follows standardized packaging procedures for curing room equipment.

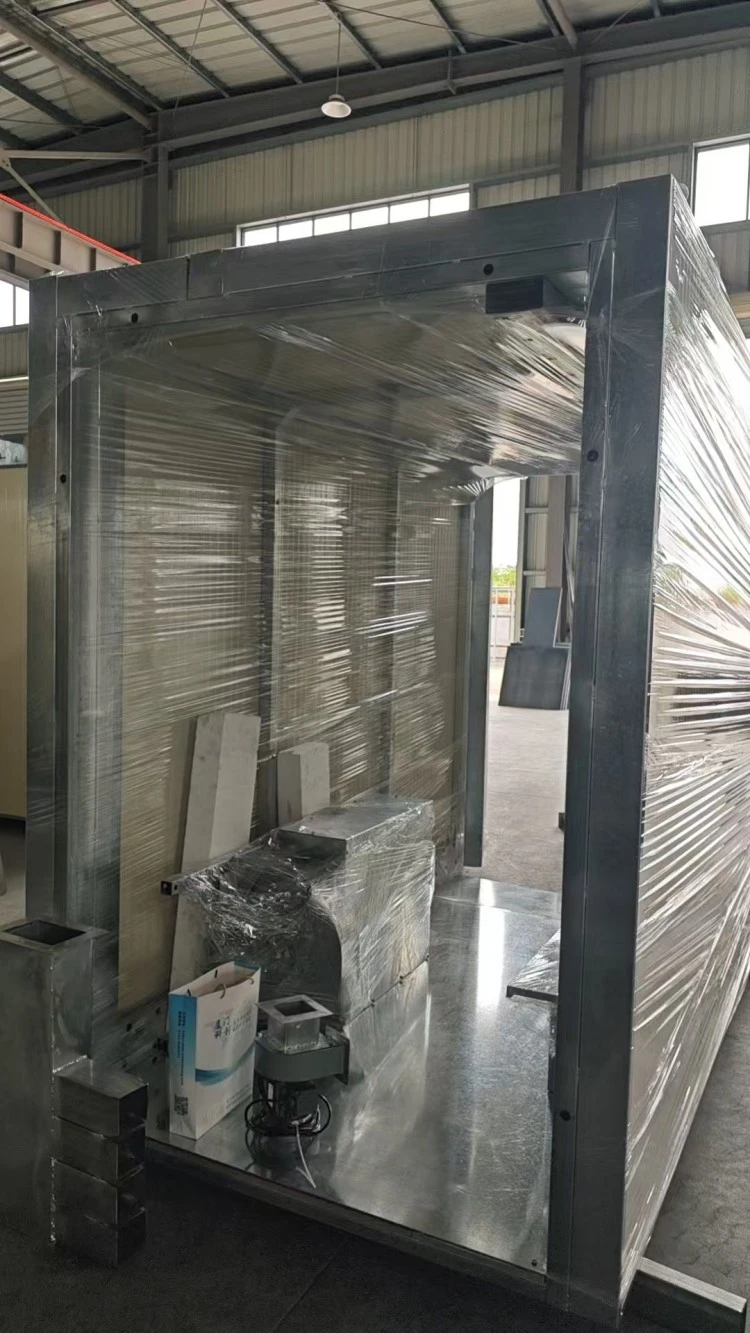

The complete machine is wrapped with thickened wear-resistant PE film through multiple layers of protection. The packaging tightly covers the equipment surface to reduce dust contamination, scratches, and friction damage during transportation.

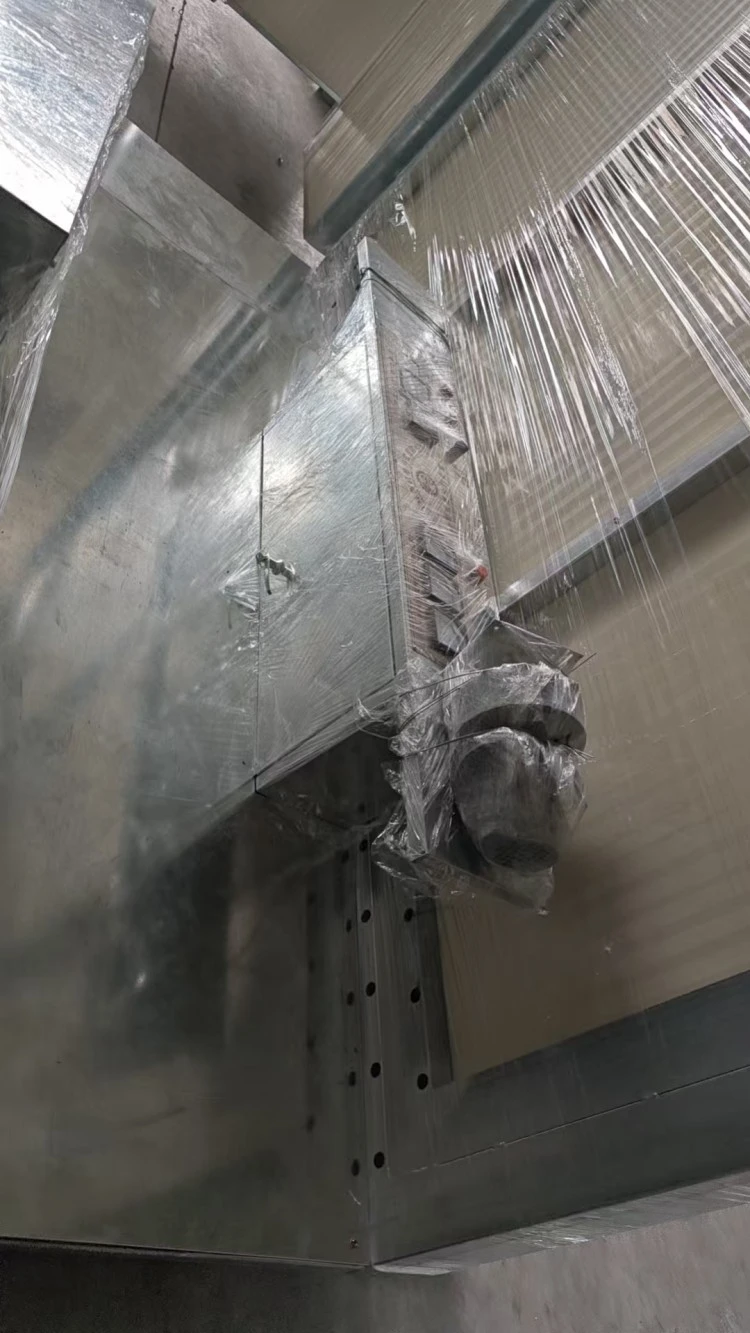

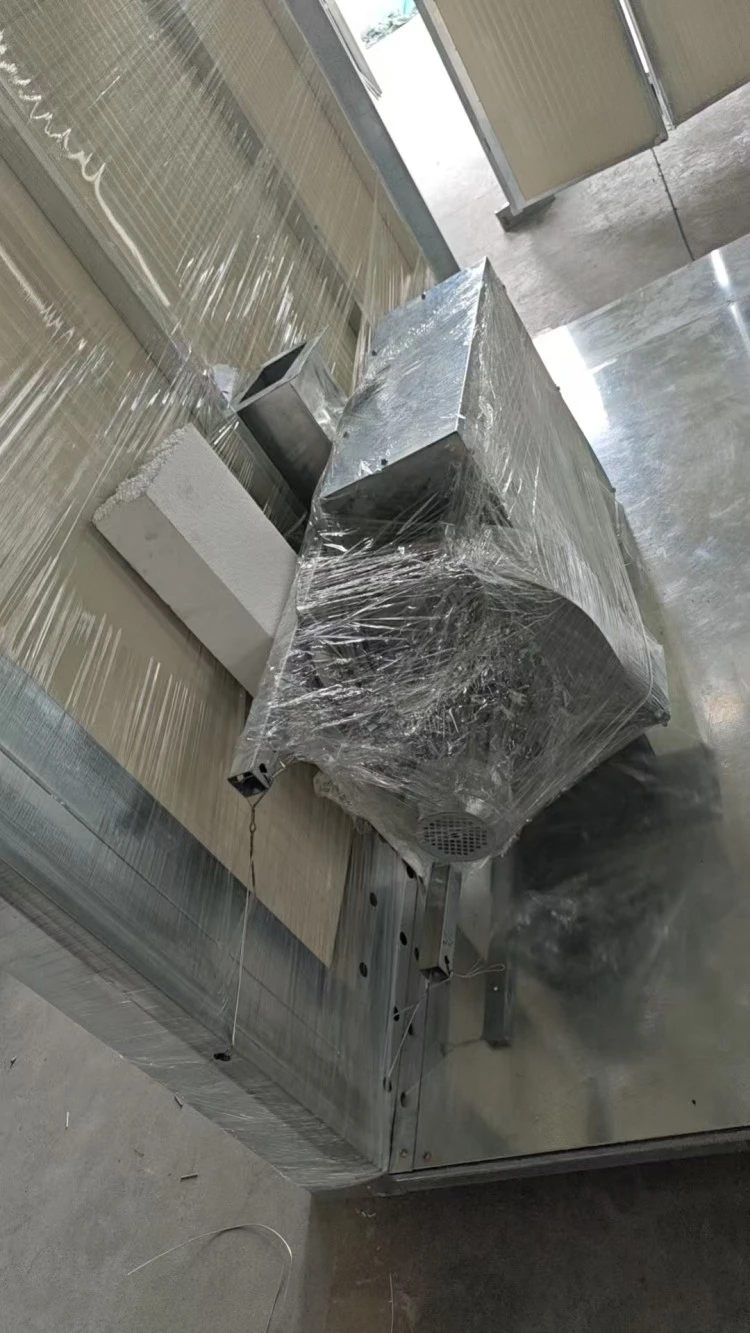

For key components including:
•Electrical control cabinet
•Heating system
•Fans
•Other precision components
Kechuang provides additional independent protective packaging to strengthen protection for sensitive parts.
The multi-layer packaging structure helps absorb transportation vibration and impact, ensuring the equipment arrives at the customer's site in proper condition.

Professional After-Sales Technical Support

Kechuang provides professional technical support through an experienced service team.
The after-sales service includes:
•Equipment installation guidance
•Operation training support
•Process parameter adjustment assistance
•Technical consultation
•Troubleshooting support
Through one-to-one online technical guidance, Kechuang helps customers solve equipment operation problems efficiently and provides continuous support throughout the equipment service cycle.

FAQ

1.What temperature range can the Heavy Duty High Temperature Curing Room operate at?
The Heavy Duty High Temperature Curing Room supports adjustable temperatures from 40℃ to 150℃, with temperature accuracy controlled within ±2℃.
2.What size of material rolls can this curing room accommodate?
The equipment can support film rolls with a maximum diameter of 800mm, weight of 400kg, and width of 1200mm.
3.How does the curing room maintain temperature uniformity?
The equipment uses a centrifugal fan circulation system with bottom air supply, top air extraction, and return air circulation to improve heat distribution and reduce internal temperature differences.
4.Can the curing room dimensions be customized?
Yes. Kechuang can customize the equipment dimensions according to customer workshop layout and production requirements.
5.What safety features are included in the heating and control system?
The electrical control system includes over-temperature protection, timed shutdown, timed exhaust, phase-loss protection, and overload protection to improve operational safety.
