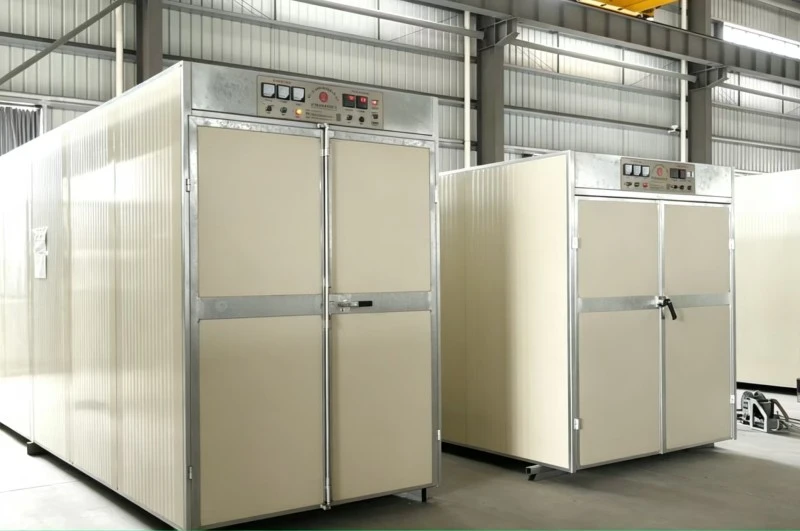

Heavy-Duty Curing Room with Motorized Rail Transfer System

Designed to replace high-risk manual loading in traditional film aging chambers, Kechuang provides high-performance semi-automated curing solutions engineered for modern flexible packaging workshops. The Heavy-Duty Curing Room with Motorized Rail Transfer System is powered by a specialized electric gear reducer and rigid chain transmission, automatically translating heavy film rolls—weighing up to 400 kg per roll—from entry to exit without operator intervention inside the heated room.
Its dual-tier heavy-duty rail configuration maximizes internal volumetric space while preventing rail sagging or structural deformation. Equipped with Schneider low-voltage protection, multi-tube electric heating array, and customizable dual-stage timing controls, this curing room ensures consistent, high-yield adhesive cross-linking while significantly reducing workplace labor intensity and operational hazards.

Key Features & Highlights

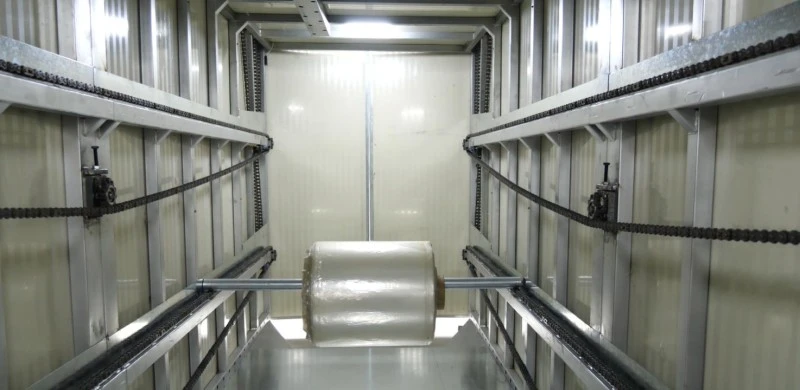

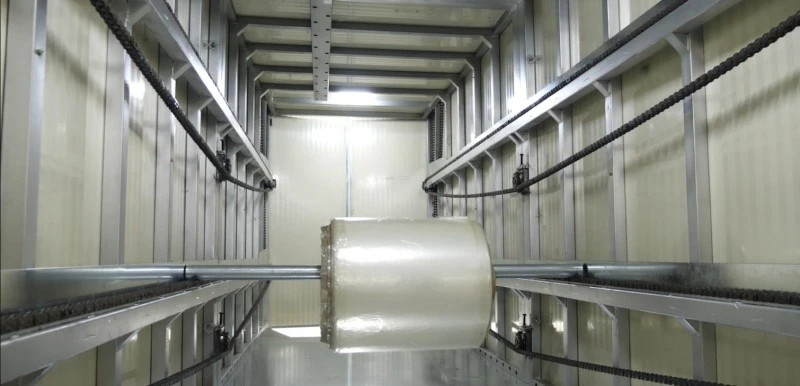

Motorized Semi-Automated Transfer System

Driven by an electric gear reducer paired with heavy-duty chain drive mechanisms. Ensures smooth power delivery, heavy load endurance, and low noise levels. Automatically transfers heavy materials from entry to exit without manual handling, completely eliminating manual safety hazards, high labor intensity, and material retrieval difficulties inside high-temperature chambers.

Integrated Safety Protection

Features anti-jamming, anti-deviation, and high-stability protection mechanisms to guarantee long-term operational durability and continuous production safety.

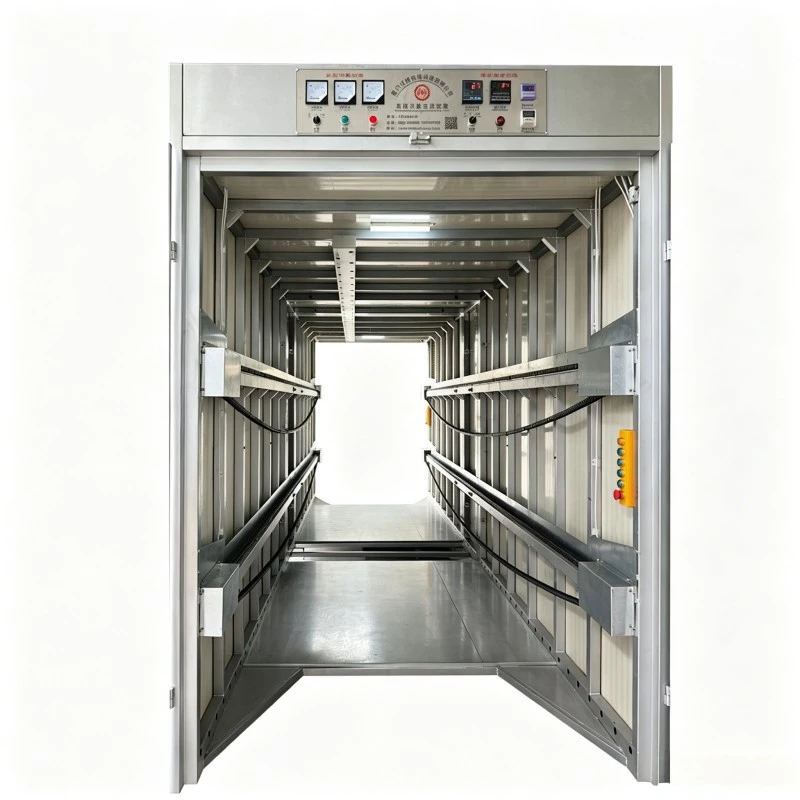

High-Capacity Dual-Tier Structure

Built with heavy-duty chain-type guide rails designed for superior load-bearing capacity and anti-deformation performance. The optimized dual-tier storage maximizes internal volume, enabling large-batch film aging/curing in a single cycle.

Ergonomic & Space-Optimized Layout

Precision-engineered for real-world plant workflows. The lowest roll center height is set at 650 mm from ground level, with an 850 mm rail spacing—facilitating seamless loading/unloading of heavy film rolls, preventing spatial waste, and maximizing operational efficiency.

Technical Specifications

Included Accessories

•20× Material Loading Rollers (2-inch galvanized pipe with anti-drop retaining rings)
•1× Bottle of Industrial Glass Silicone Sealant

Competitive Advantage (Vs. Standard Curing Rooms)

Feature / Aspect	Heavy-Duty Curing Room with Motorized Rail Transfer System	Standard Conventional Curing Room
Operation & Handling	Motorized Automation: Equipped with a specialized electric gear reducer & chain drive. Material transfers automatically from entry to exit. Zero manual lifting/shifting inside the chamber, drastically cutting labor costs, reducing human errors, and ensuring continuous high-efficiency workflow.	Manual / High Labor: Lacks motorized transfer capability. Static structure forces operators to manually push/pull heavy materials in and out of the hot chamber. Highly labor-intensive, time-consuming, prone to material damage/bumping, and poses safety risks to workers.
Structural Load Capacity	Heavy-Duty Chain Rails: Rigid, high-strength chain rail system engineered for heavy loads. Ensures stable, wobble-free operation with exceptional pressure and deformation resistance. Maintains long-term precision and reliability under continuous industrial use.	Light/Medium Duty: Uses basic standard rails with limited load capacity. Prone to overloading, rail sagging, or deformation under heavy film rolls. Leads to system jamming, misalignment, material damage, frequent downtime, and high repair costs.

Frequently Asked Questions (FAQ)

Q1: Can the dimensions and layer configuration of the curing room be customized for our specific workshop layout?

A: Yes. While our standard unit features an external dimension of 5890 × 1500 × 2500 mm with a 2-tier heavy-duty rail setup, Kechuang provides full OEM/ODM customization services for the Heavy-Duty Curing Room with Motorized Rail Transfer System. We can adjust the overall chamber dimensions, door placement (e.g., straight-through or front-loading), rail spacing, and loading capacities to match your workshop ceiling height, film roll diameters, and daily throughput requirements.

Q2: How does the motorized rail transfer system prevent film roll misalignment or jamming during operation?

A: The transfer mechanism in the Heavy-Duty Curing Room with Motorized Rail Transfer System is powered by an electric gear reducer combined with precision heavy-duty chain drive tracks, engineered specifically for high-load applications up to 400 kg per roll. It incorporates built-in anti-jamming, anti-deviation, and overload safety protection devices. The guided rail structure ensures smooth, linear movement from input to output, maintaining precise alignment throughout the heating and curing cycle.

Q3: What safety and temperature control features are built into the curing chamber?

A: Safety and process precision are prioritized through Schneider low-voltage electrical controls. Key safety features include over-temperature automatic cut-off, phase-loss protection, and motor overload protection. For process control, the room uses an 18 kW dual-stage heating system (9 kW + 9 kW) allowing high/low-temperature zoning, paired with a 180W exhaust fan governed by dual programmable digital timers for flexible ventilation scheduling.
