General purpose batch curing oven
General purpose batch curing oven choose xiamen kechuang! Our customized products with High quality and affordable price are deeply loved by both new and old customers.

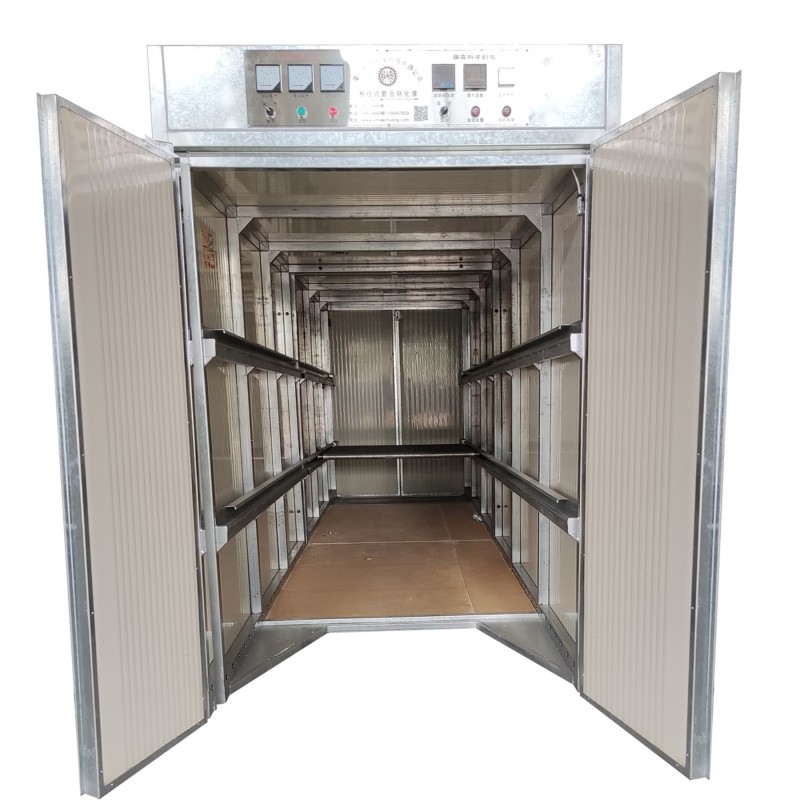

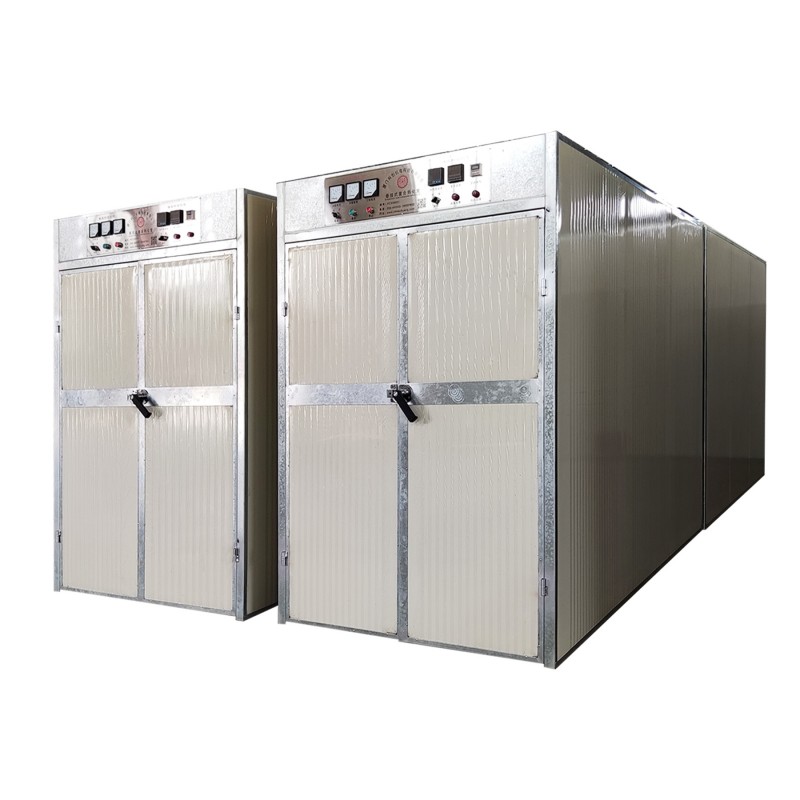

This is the best-selling high-quality general purpose batch curing oven of our kechuang electromechanical. It is specially designed for flexible packaging factories, label factories, and self-adhesive factories of BOPP, CPP, PE, PA, PET, NY curing of hot melt adhesives and polyurethane adhesives. The effective volume is 18 cubic meters. It can hold approximately 2000 to 3,000 kilograms of material at a time (calculated based on 25μm film rolls). Within 48 hours, the glue cross-linking is also complete.
Parameters
| Parameter | Specification |
|---|---|
| Number of Placement Layers | 2 layers |
| Max Film Roll (Standard) | ⌀600mm, 200kg weight, 1200mm width |
| Max Film Roll (Heavy-Duty) | ⌀800mm, 400kg weight, 1200mm width |
| Total Power | 19KW, 380V, 3-phase 5-wire system |
| Power Cable | National standard 3×10+2×4, must be reliably grounded |
| Heating Method | 1 set of electric heating, multi-tube mode (12 tubes in total), 9KW+9KW=18KW, with high/low temperature zones. Heating system placed on top of the chamber. |
| Operating Temperature | 40–80°C (adjustable), temperature tolerance ±2°C |
| Air Circulation System | 1 unit of 550W centrifugal fan, bottom air supply, top exhaust, return air recirculation |
| Chamber Insulation Material | 50mm rock wool color steel sandwich panel |
| Door Frame | Made of 2.0mm galvanized steel sheet |
| Door Panels | Color steel sandwich panels |
| Material Handling Direction | Front-in, rear-out; convenient door opening and closing operation |
| Guide Rails | C-type rails |
| Dimensions | Customizable sizes according to customer requirements |
Delivery date
For such customized production equipment, delivery time is often a concern for customers. Through standardized module design, optimized production process and advance stocking of key components, we are able to control the delivery time of general purpose batch curing oven at a competitive level in the industry. For customized requirements, we will also communicate closely with you, provide accurate production plans, and ensure that the equipment can be delivered on time without affecting your production arrangements.
Company qualification
We are Xiamen Kechuang Electromechanical Technology Co., LTD., a manufacturer officially registered in Xiamen, China, Specializing in the research, development, production and sales of printing and packaging equipment. We have a complete production management system and quality control process, and can provide relevant qualification documents such as factory certificates of conformity, user manuals and testing standards and data, for our products to ensure the compliance and reliability of our products.
Applicable scenarios
General purpose batch curing oven is mainly used for adhesive products that require Curing, such as flexible packaging composite film, photovoltaic EVA/POE encapsulation glue, honeycomb glue, electronic protective film, automotive interior film, advertising printing materials, label self-adhesive, medical film, etc.
Shipment

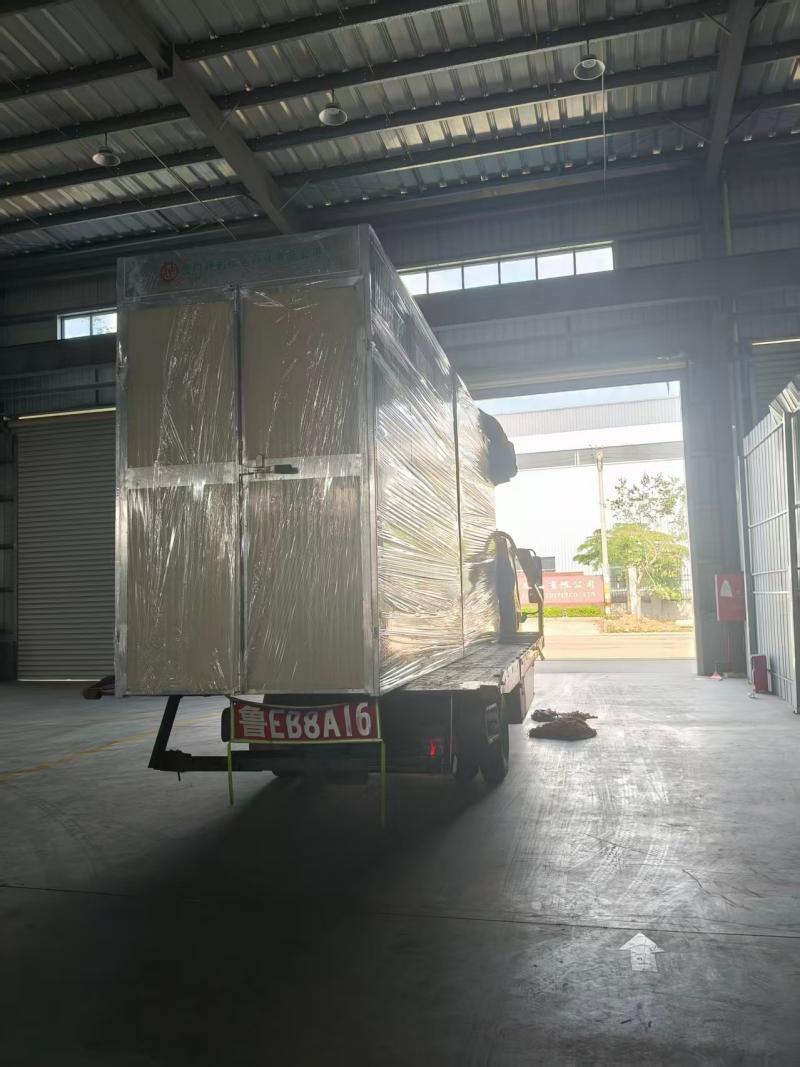

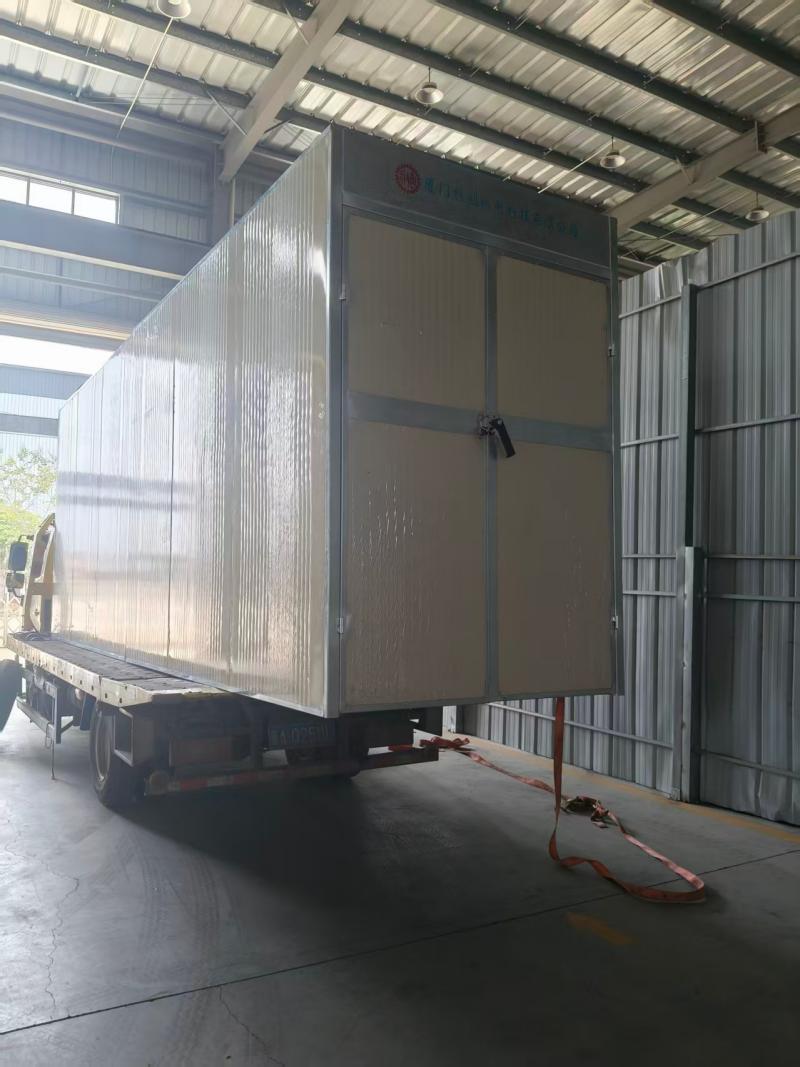

Before each electrically movable curing chamber is shipped out of the factory, a standardized packaging process is strictly followed. For the core transmission components, electrical control system, and box structure of the equipment, custom wooden boxes and high-density cushioning materials are used for partitioned fixation. The outer layer is additionally secured with steel bands and treated with moisture-proof film, forming multiple protective barriers. The special reinforcement packaging scheme effectively resists the effects of vibration, collision, and humid environments during long-distance transportation, ensuring that the equipment is delivered to the customer's factory in perfect condition, fulfilling Xiamen Kechuang's commitment to quality delivery.
