Economical Laminating Film Curing Chamber
  • Economical Laminating Film Curing ChamberEconomical Laminating Film Curing Chamber
  • Economical Laminating Film Curing ChamberEconomical Laminating Film Curing Chamber

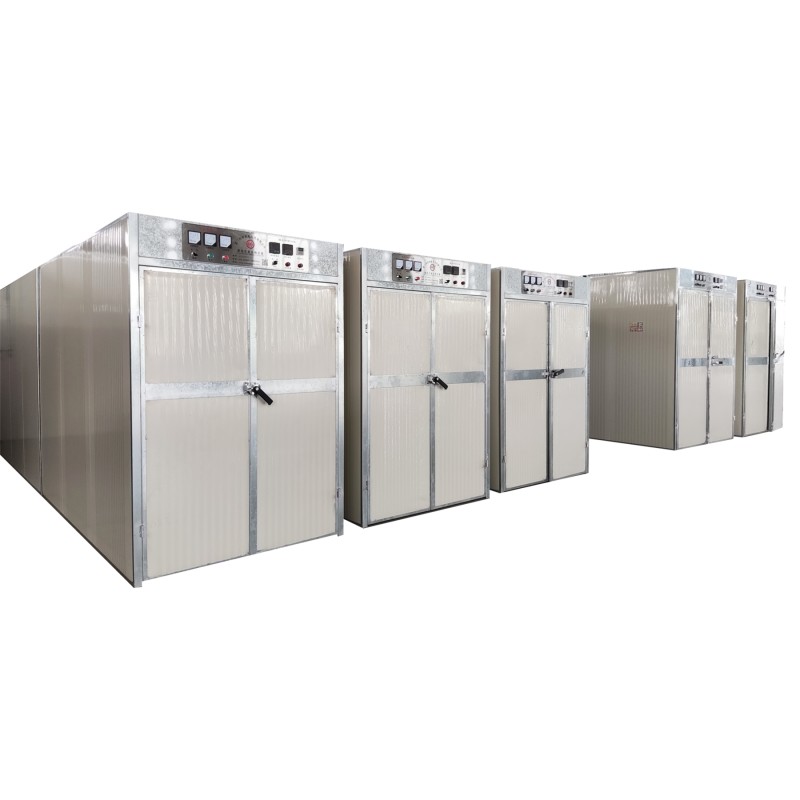

Economical Laminating Film Curing Chamber

You can rest assured to purchase high-quality Economical Laminating Film Curing Chamber from kechuang electromechanical factory.We have more spot, fast delivery, quality after-sales technical support.

If you are looking for a cost-effective Laminating Curing Chamber, then choose Xiamen Kechuang 's Economical laminating Film Curing chamber! It provides a stable and controllable curing environment for medium and small batch composite films, ensuring that the adhesive can complete the basic chemical reaction and meet the performance indicators required by the product. Our company, Xiamen Kechuang Electromechanical Technology Co., LTD., offers this product to meet the demands of start-ups, small factories or specific experimental projects for advanced maturation equipment.

Structure

The Economical Laminating Film Curing Chamber box is usually made of double-sided color steel composite panels, with flame-retardant insulation cotton filled in the middle, providing good insulation performance and controllable cost. The interior layout is simple and is usually equipped with fixed-height shelves or simple material racks. The design of the box door emphasizes sealing and practicality, ensuring basic usage functions without excessive decorative elements.

Core value

Provide a stable environment that meets process requirements at a limited cost. The temperature and humidity control accuracy and uniformity of the Economical Laminating Film Curing Chamber are slightly lower than those of the high-end models, but it can fully meet the Curing requirements of most conventional films. Its design focus is on reliability. Through mature control schemes and stable components, it ensures that the equipment can operate without failure for a long time, creating value for users.

Specification

Effective Internal Dimensions 6000 × 1500 × 2200 mm (customizable length/width)
Temperature Range Room Temp. +40°C to 80°C
Humidity Range 60% to 90% RH (at room temperature)
Temperature Uniformity ≤ ±2°C
Humidity Fluctuation ≤ ±3% RH
Heating Power 18 kW (Stainless steel electric heating tubes)
Circulation Fans 1 x 750W high-temperature resistant centrifugal fans
Insulation Material 50mm high-pressure Rock wool board

Thermal Conductivity: 0.022 W/m·K
Total Power 22 kW, 380V 50/60Hz
Weight Approx. 1 tons (empty chamber)

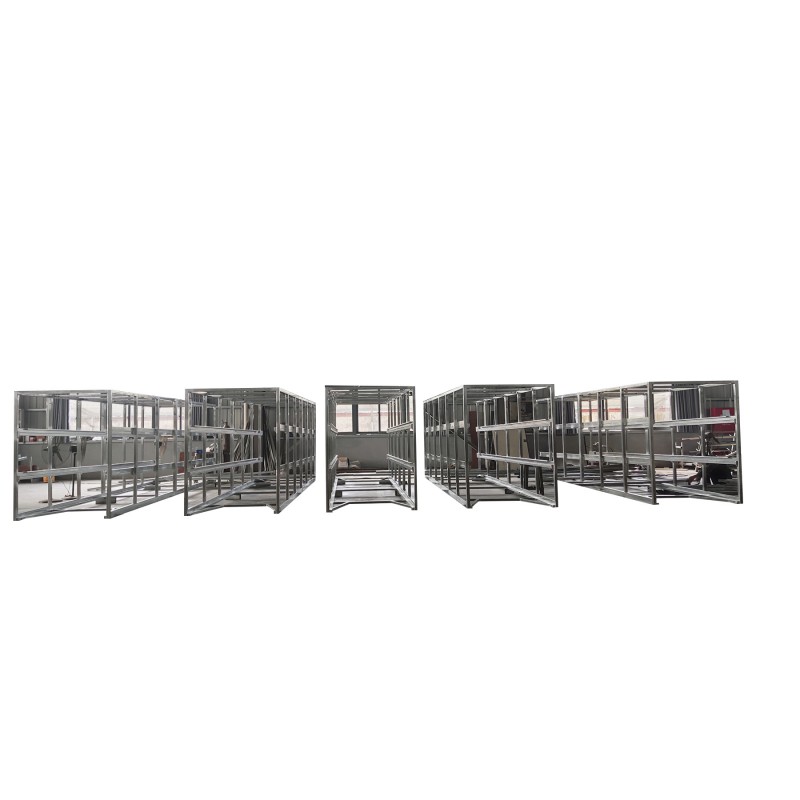

Standard Curing Chamber
