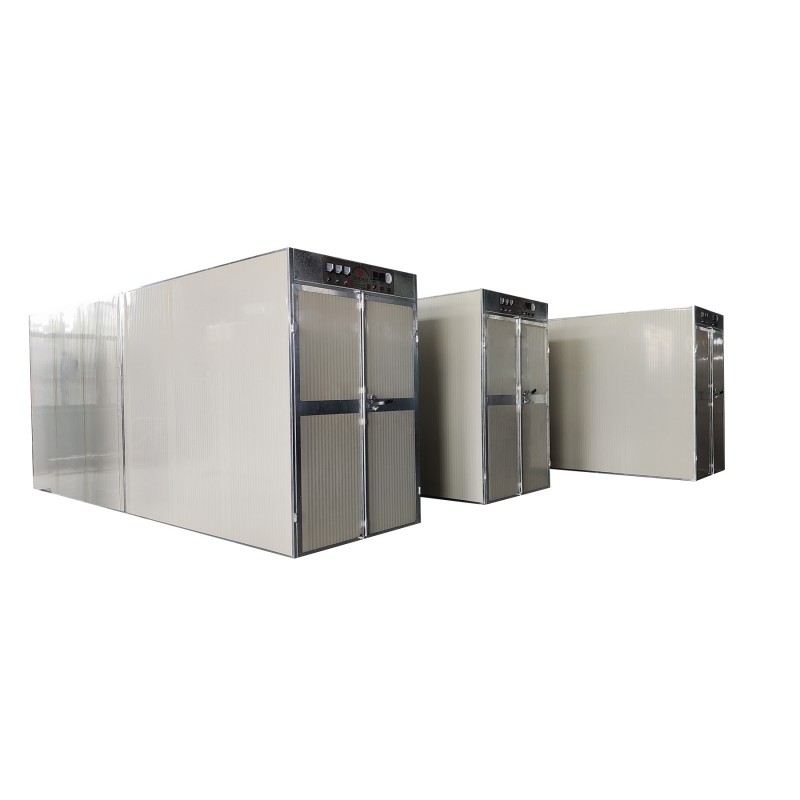

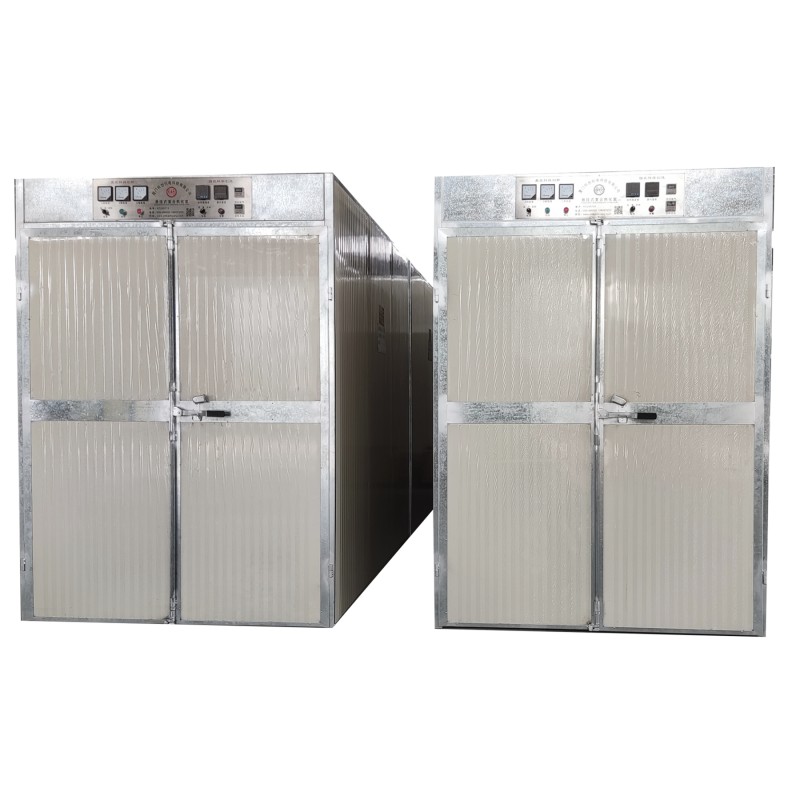

Constant Temperature Humidity Curing Chamber

With "technological innovation" as the driving force, "international first-class" as the goal, with the attitude of "keep improving" and the spirit of "meticulous", we will finally achieve "maximum benefit" and "complete customer satisfaction"! Our Constant Temperature Humidity Curing Chamber is equipped with intelligent thermostat, humidifier and dehumidifier, which can automatically switch working mode according to the actual temperature and humidity of the indoor environment to achieve precise control of temperature and humidity. Constant Temperature Humidity Curing Chamber adopts efficient insulation materials and good sealing design to reduce the impact of the external environment on the indoor environment, improve the stability and energy efficiency of the system, and ensure the precise control of indoor temperature and humidity. Perfect safety protection functions: over-temperature protection, leakage protection, overload protection, timed exhaust, timed shutdown, etc., to ensure the safety of equipment and personnel.

1. Constant humidity mode: humidifier, dehumidifier
2. Heating mode: electric heating 1 set, multi-tube mode (a total of 12), electric heating 9KW+9KW=18KW, divided into high and low temperature.
3. Operating temperature: 40-80℃ adjustable, temperature error ±2℃.
4. Number of layers: two layers, C-type heavy-duty track, the lowest film roll center is 650mm from the ground. Track spacing is 850mm.
5. Circulating air system: 1 550W centrifugal fan, bottom air outlet, top exhaust, return air, heating system is placed on the top of the box.
6. Exhaust system: 1 180W exhaust fan, two sets of time control (arbitrary setting: how long to discharge, how long to stop).
7. The maximum film roll placed: ￠800mm, weight 400kg, width 1200mm.
8. Box support steel: 50*50 and 50*100 galvanized pipes welded together, 480mm interval, heavy fixed mode.
9. Box insulation material: 50mm rock wool color steel sandwich panel.
10. Material entry and exit method: forward and backward, easy to open and close the door. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
11. Electrical control: Schneider low-voltage electrical appliances, ultra-high temperature protection, timed shutdown, timed exhaust, phase loss protection, overload protection.
12. Random accessories: 1. 20 threading rollers (2-inch galvanized pipes, 4 6305 bearings each) 2. 1 bottle of glass glue.
13. Specifications: Appearance: length 5890*width 1500*height 2500mm, indoor: length 5700*width 1200*height 2200mm. (Customized size according to customer needs)
14. Total power: 19KW (380V, three-phase five-wire, using national standard cable: 3*10+2*4, must be reliably grounded).

Constant Temperature Humidity Curing Chamber is suitable for the curing treatment of plastic composite packaging films, so that the main agent and curing agent of the polyurethane adhesive can fully react and cross-link, improve the strength of the composite film, and remove the residual solvent with low boiling point to ensure the quality and performance of the packaging material.

How to ensure the uniformity of Drying Chamber Curing Chamber?
The uniformity of Constant Temperature Humidity Curing Chamber is not a simple indicator, but a reflection of its core value. Including the design of the box structure and the performance of thermal insulation materials, the design of airflow organization, the selection and layout of heating, humidification and dehumidification systems, the selection of components with fast response speed and high precision, and ensuring that their power and capacity match the size of the space and the heat and humidity load, can provide strong "hardware" support for uniformity.

What are the processes in the design and manufacturing process?
The rock wool color steel sandwich panel with a higher grade of thermal insulation material is used, and a centrifugal fan is configured: downward air outlet, upper exhaust air, and return air to promote uniform air flow. 180W exhaust fan, two sets of time control can be set arbitrarily. At the same time, the equipment is equipped with 1 set of electric heating (multi-tube mode), humidifier, dehumidifier and other core equipment, and combined with advanced control algorithms, it can achieve precise adjustment and control of temperature and humidity.
