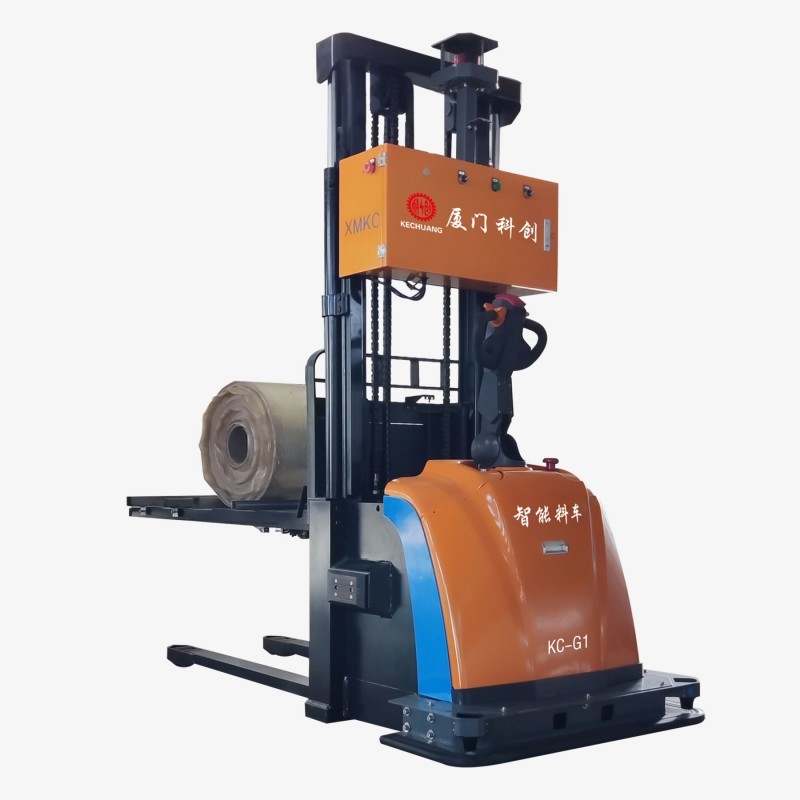

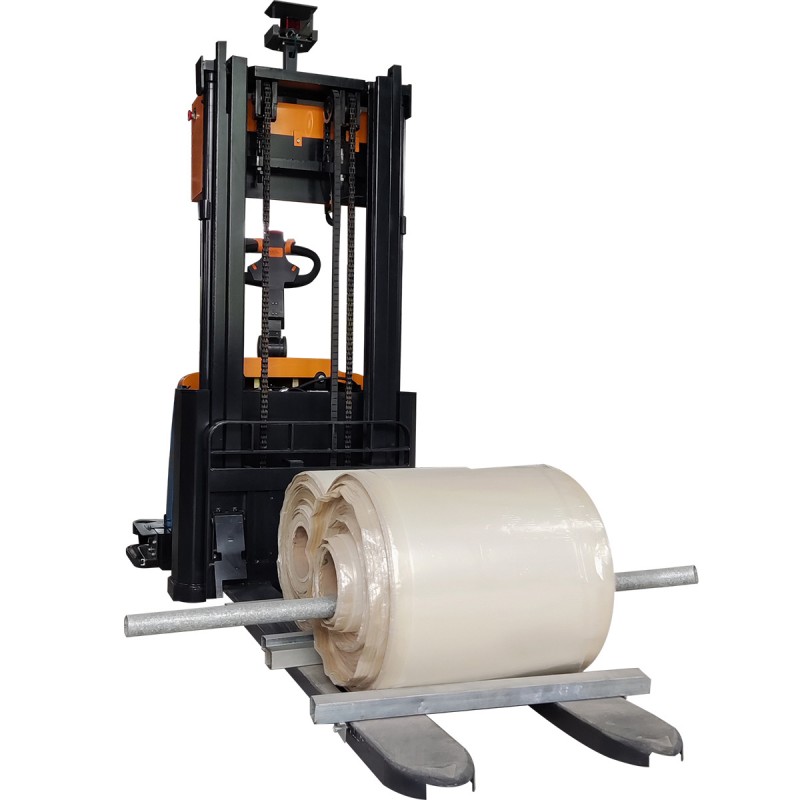

AGV Autonomous Forklift

AGV Autonomous Forklift combines with MES system management, and can intelligently interact with printing machines, compound machines, curing rooms, slitting machines, warehouses, etc. to complete tasks such as handling, loading and unloading, and weighing. Through sensors and laser navigation technology, it can adapt to complex environments, reduce manual intervention, and improve work efficiency. The unmanned forklift is equipped with multiple obstacle avoidance functions, which can identify and avoid obstacles to ensure safety and efficiency during operation.

In factories, AGV Autonomous Forklift is used for the handling of raw materials, distribution of parts and finished product loading and unloading, seamlessly connected with the production line, to achieve timely supply of materials and reduce production costs. In intensive shelf warehouses, AGV unmanned forklifts can realize automatic storage, handling and stacking of goods, improving storage efficiency.

Navigation mode: laser navigation Contour lights: 4
Laser obstacle avoidance: left and right obstacle avoidance laser radar
Fork obstacle avoidance: fork photoelectric obstacle avoidance
Collision bar detection: rear rubber collision bar detection
Emergency stop button: left / right emergency stop button
Rated operating speed (no load) (mm/s): 1200
Stop angle accuracy (°): ± 1
Stop position accuracy (mm): ± 10
Battery type: lithium iron phosphate battery
Battery voltage: 24V
Working time under rated conditions (h): 8
Charging time (h): 2.5 hours
Overall dimensions L*W*H (mm): 2887*1120*2330
Rotation radius (mm): 2650 Lifting height (mm): 3000
Chassis ground clearance (mm): 40
Fork width (mm): 680
Lifting and rotation method: electric hydraulic
Deadweight (Kg): 1400 Rated load (Kg): 1600
