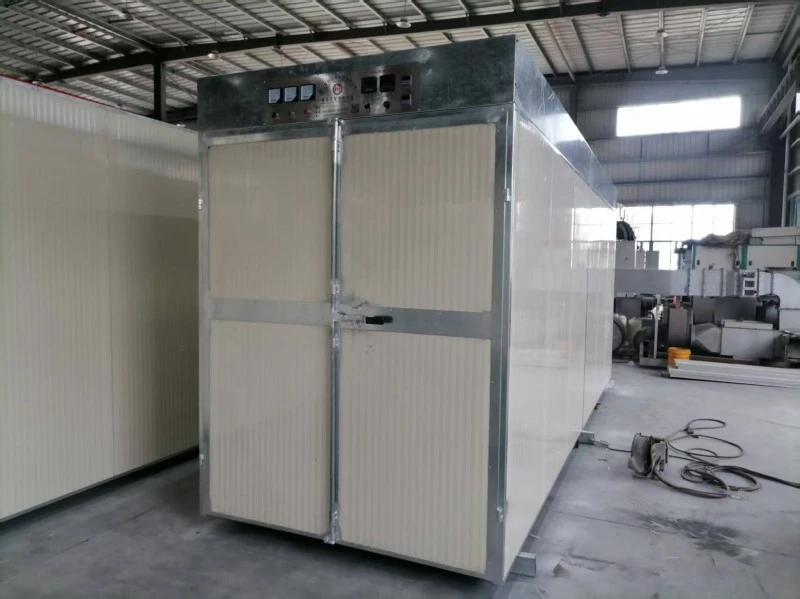

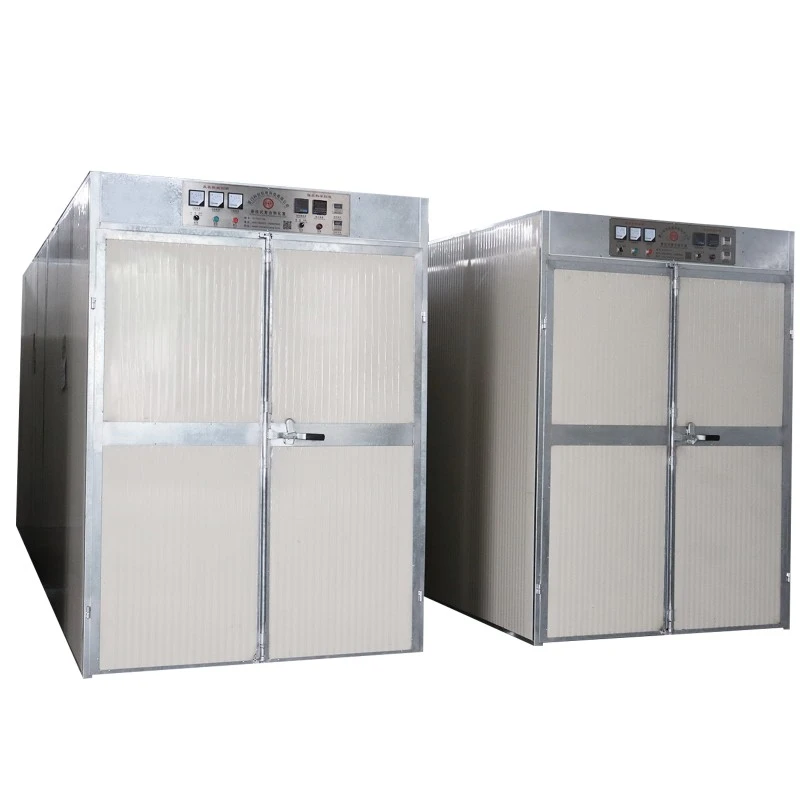

Water Heating Curing Room

Kechuang Water Heating Curing Room is a customized energy-saving curing system designed for factories equipped with RTO waste heat recovery conditions. Unlike conventional electric heating curing equipment, it utilizes recovered hot water as the main heat source and transfers thermal energy through a professional heat exchange system.
The hot water enters the heat exchanger, where thermal energy is transferred to the circulating water. The heated water then continuously circulates through the pipeline system, delivering heat evenly into the curing chamber.
A high-precision temperature controller continuously collects internal temperature data and automatically controls the electromagnetic valve opening and closing to regulate hot water flow. This closed-loop temperature adjustment system helps maintain the required curing temperature with fast response and reduced temperature fluctuations.
The curing chamber creates a stable and uniform temperature environment, ensuring consistent material curing performance.

RTO Waste Heat Recovery for Energy-Efficient Operation

One of the key advantages of Kechuang Water Heating Curing Room is its ability to reuse available RTO waste heat.
By utilizing recovered hot water as the heating source, the system:
•Reduces dependence on traditional electric heating
•Improves waste heat utilization efficiency
•Lowers overall energy consumption
•Supports environmentally friendly production
The closed-loop heating process minimizes unnecessary heat loss and helps manufacturers reduce long-term operating costs.

Dual Heating Mode for Flexible Production Conditions

To adapt to different factory environments, Kechuang Water Heating Curing Room supports both water heating and electric heating modes.
The dual heating configuration allows:
•Waste heat recovery operation when hot water is available
•Electric heating operation when additional heating is required
•Flexible temperature maintenance under different production conditions
This design improves equipment adaptability for various industrial production scenarios.

Insulated Chamber and Uniform Air Circulation Design

The curing chamber body uses 50mm rock wool color steel sandwich panels with excellent thermal insulation performance.
The insulated structure helps:
•Reduce heat loss
•Maintain stable internal temperature
•Improve overall energy efficiency
For airflow circulation, the equipment adopts a 1100W centrifugal fan with a bottom air supply, top air extraction, and return air circulation structure.
This optimized airflow design ensures uniform hot air distribution inside the chamber and helps prevent uneven curing caused by temperature differences.

Stable Heavy-Duty Structure for Industrial Applications

The equipment adopts a reinforced galvanized steel frame structure designed for continuous industrial operation.
Structural features include:
•50×50mm and 50×100mm galvanized pipe welded frame
•480mm structural spacing
•Heavy-duty three-section fixed water heating structure
•C-type heavy-duty track system
•Two-layer storage design
The curing room supports large material rolls up to 800mm in diameter and 400kg in weight, meeting the requirements of high-volume production.

Technical Specifications

Application Areas

Flexible Packaging and Composite Film Industry

Kechuang Water Heating Curing Room is suitable for curing processes involving:
•Flexible packaging films
•Composite films
•Laminated materials
•Plastic film products
The stable temperature environment helps promote adhesive curing reactions, improve bonding performance, and maintain consistent product quality.

Industrial Waste Heat Recovery Applications

The equipment is especially suitable for factories equipped with RTO waste heat recovery systems.
By converting recovered hot water into usable curing energy, the system helps enterprises improve energy efficiency and support sustainable manufacturing practices.

Safety and Control System

Kechuang Water Heating Curing Room is equipped with multiple electrical protection functions, including:
•Over-temperature protection
•Timed shutdown
•Timed exhaust
•Phase-loss protection
•Overload protection
The intelligent control system helps maintain safe and stable equipment operation during continuous production.

FAQ

1. What is the main heat source of the Water Heating Curing Room?
The primary heat source is recovered hot water from an RTO waste heat recovery system. The hot water transfers heat through a heat exchanger and circulating pipeline system.

2. Can the equipment operate without an RTO hot water source?
Yes. The curing room supports electric heating mode as an alternative heating method for different production conditions.

3. How does the system control curing temperature?
The temperature controller collects chamber temperature data in real time and controls the electromagnetic valve to regulate hot water flow, maintaining stable curing conditions.

4. What materials can be processed in this curing room?
The equipment is mainly designed for composite films, flexible packaging materials, laminated materials, and other products requiring controlled curing environments.

5. Can Kechuang customize the curing room size?
Yes. Kechuang provides customized dimensions according to customer production requirements and workshop layout.
