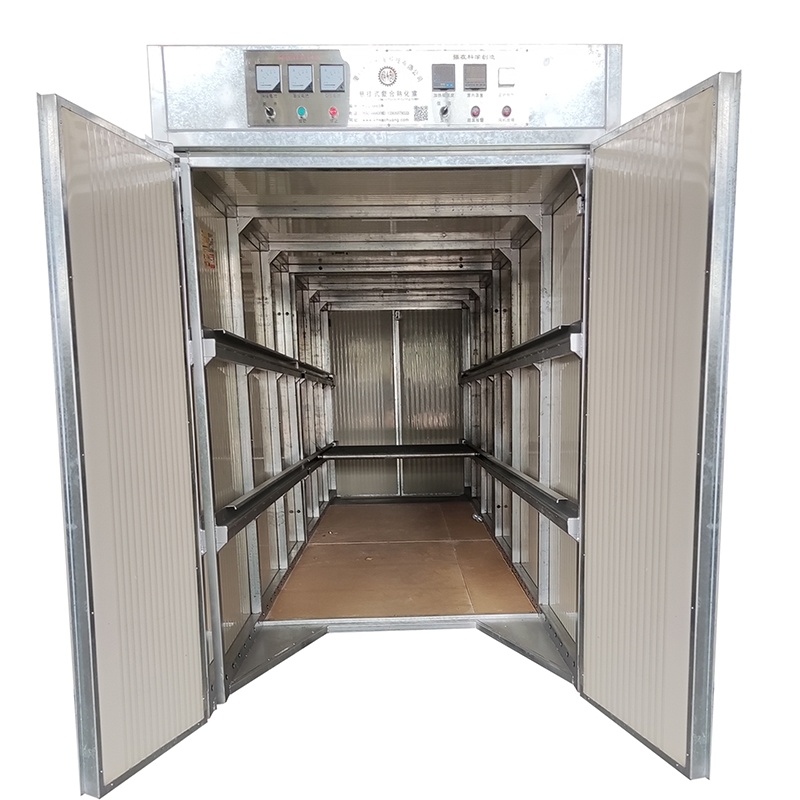

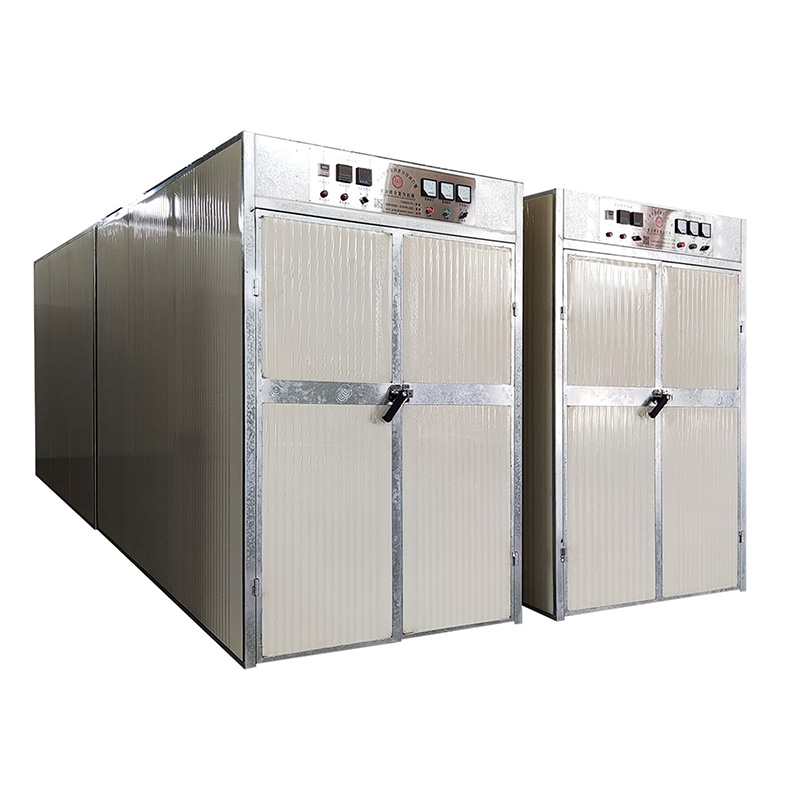

Standard Fixed Curing Chamber
Kechuang Standard Fixed Curing Chamber is an energy-saving composite curing chamber that relies on a precise temperature-time control system to provide a stable curing environment for composite materials. Through the curing process, it effectively improves the flexibility and barrier properties of composite films, preventing product delamination defects. At the same time, it accelerates ink drying and curing, enhances the color fastness of printed packaging materials, and reduces production defects.
With a well-designed ventilation and control system, the Standard Fixed Curing Chamber minimizes energy consumption while meeting curing process requirements, improving energy utilization efficiency. The chamber insulation uses 50mm rock wool color steel sandwich panels, offering excellent thermal insulation, reducing heat loss and energy waste, and saving electricity. The internal circulation air duct design ensures uniform temperature distribution, adjustable from 40-80°C with a tolerance of ±2°C, avoiding localized overheating or overcooling. The curing chamber is equipped with over-temperature protection, leakage protection, and fan overload protection to ensure safe operation. When the temperature exceeds the set upper limit, a leakage occurs, or the fan overloads, the equipment automatically cuts off the power and emits an alarm signal to alert operators for timely intervention. The Standard Fixed Curing Chamber features simple loading, front-in rear-out material flow, and convenient door operation, making it suitable for various production scales.
Parameters
| Item | Specification |
|---|---|
| Electrical control | Delixi low-voltage electrical components, over-temperature protection, timed exhaust, phase-loss protection, overload protection |
| Heating method | Electric heating, 1 set, multi-tube mode (12 tubes total), 9KW+9KW=18KW, separate high/low temperature. Heating system placed on top of the chamber. |
| Operating temperature | 40-80°C adjustable, temperature tolerance ±2°C |
| Number of layers | 2 layers |
| Max film roll – Standard model | φ600mm, weight 200kg, width 1200mm |
| Max film roll – Heavy-Duty model | φ800mm, weight 400kg, width 1200mm |
| Total power | 19KW, 380V, three-phase five-wire |
| Power cable | National standard 3×10+2×4, must be reliably grounded |
| Circulating air system | 550W centrifugal fan, 1 unit, air out from bottom, air return from top |
| Exhaust system | 60W exhaust fan, 1 unit, dual-mode timer (adjustable run time and stop time) |
| Chamber insulation material | 50mm rock wool color steel sandwich panel |
| Door frame | Galvanized sheet 2.0mm |
| Door panel | Color steel sandwich panel |
| Material loading/unloading | Front in, rear out; door operation convenient |
| Rail | C-type rail |
| Dimensions | Customizable according to customer requirements |
Application:
The Standard Fixed Curing Chamber is widely used in flexible packaging material factories, packaging printing plants, plastic color printing factories, and other industries. Through constant temperature curing, it enables the base agent and curing agent of polyurethane adhesives in composite films to fully react and cross-link, enhancing the bonding strength of composite materials while removing low-boiling-point residual solvents such as ethyl acetate.
