Fully Disassembly Curing Room for Packaging Industry
In 2014, Xiamen Kechuang Electromechanical Technology Co., Ltd., leveraging deep industry experience and keen market insight, successfully developed and launched the Fully Disassembly Curing Room for Packaging Industry. Designed for cross border export, it easily passes through narrow elevators and hallways. This product provides an efficient, economical, and flexible transport solution for flexible packaging, composite film production, and related fields, and has been well received by domestic and international customers for many years.
Traditional one piece curing rooms are bulky and non separable, causing significant practical difficulties. For export, oversized dimensions lead to low container space utilization and high sea freight costs, severely compressing profit margins. Moreover, the equipment is difficult to move as a whole – narrow elevators, low door frames, and complex passageways often prevent installation, sometimes even requiring wall removal at extra cost. The Fully Disassembly Curing Room for Packaging Industry from Kechuang was created precisely to solve these problems, addressing the three core challenges of transport, installation, and relocation from the root, while balancing practicality and economy. It directly targets industry pain points such as high export freight costs, limited workshop layouts, and narrow elevator passages. With its modular, detachable design, it breaks the deadlock and hits the core needs of the industry.
FAQ
Q: What components are included?
A: The Fully Disassembly Curing Room for Packaging Industry adopts a standardized modular structure, including base plates, wall panels, roof panels, enclosure panels, doors, electrical cabinet, heating box, fans, and other components.
Q: Is installation complicated?
A: We provide an instruction manual and installation video that are easy to follow. Simply fasten the components with bolts – no complex welding required, greatly reducing on site installation difficulty.
Q: How to load the container to save space?
A: For export, all components can be tightly stacked, increasing space utilization by more than 50% and directly reducing sea freight costs by 30% 40%.
Parameters
| Item | Specification |
| Total power | 19KW, 380V, three phase five wire |
| Power cable | National standard 3*10+2*4, must be reliably grounded |
| Heating method | Electric heating, 1 set, multi tube mode (12 tubes total), 9KW+9KW=18KW, separate high/low temperature. Heating system placed on top of the chamber. |
| Operating temperature | 40 80°C adjustable, temperature tolerance ±2°C |
| Circulating air system | 550W centrifugal fan, 1 unit, air out from bottom, air return from top |
| Chamber insulation material | 50mm rock wool color steel sandwich panel |
| Door frame | Galvanized sheet 2.0mm |
| Door panel | Color steel sandwich panel |
| Material loading/unloading | Front in, rear out; door operation convenient |
| Rail | C type rail |
| Number of layers | Two layers |
| Dimensions | Customizable according to customer requirements |
Main Differences Between Standard and Heavy Duty Models
| Configuration | Standard Model | Heavy Duty Model |
| Exhaust system | 60W exhaust fan, 1 unit, dual mode timer (adjustable run time and stop time) | 180W exhaust fan, 1 unit, dual mode timer (adjustable run time and stop time) |
| Electrical control | Delixi low voltage electrical components, over temperature protection, timed exhaust, phase loss protection, overload protection | Schneider low voltage electrical components, over temperature protection, timed shutdown, timed exhaust, phase loss protection, overload protection |
| Frame steel material | 50*50mm and 50*100mm galvanized steel pipe welded, spacing 960mm | 50*50mm and 50*100mm galvanized steel pipe welded, spacing 480mm |
| Max film roll size | φ600mm, weight 200kg, width 1200mm | φ800mm, weight 400kg, width 1200mm |
| Minimum distance from roll center to floor | 550mm | 650mm |
| Rail spacing | 650mm | 850mm |
Shipping

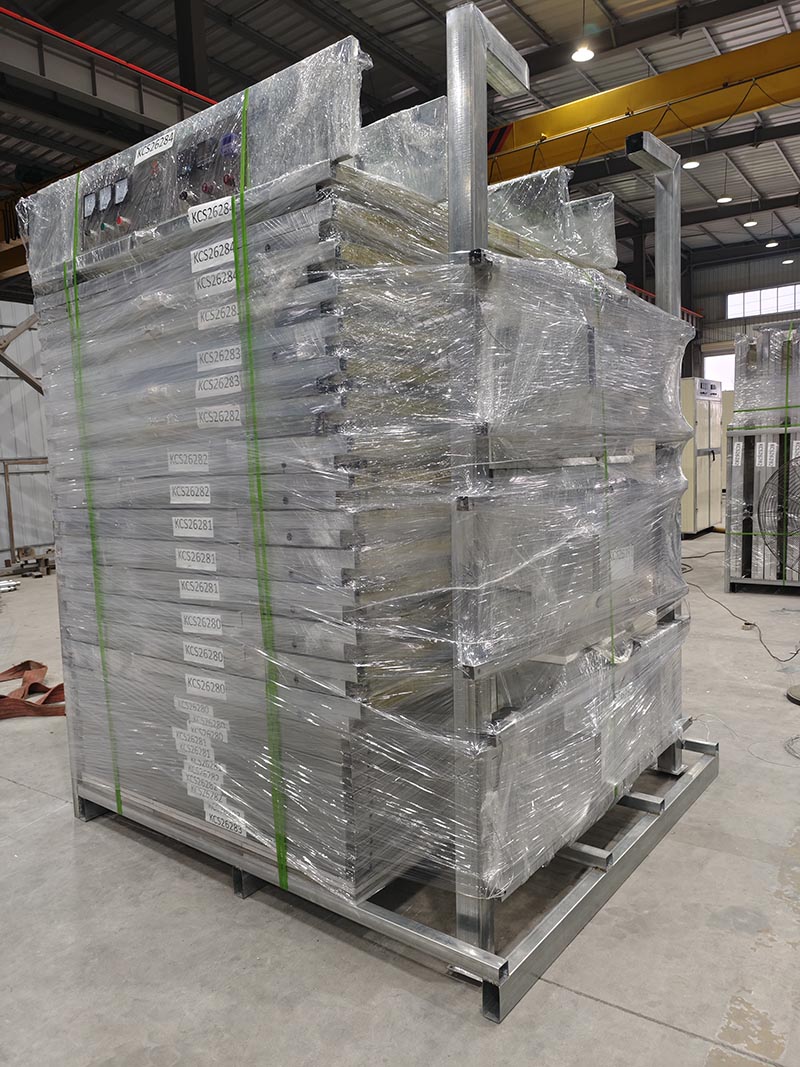

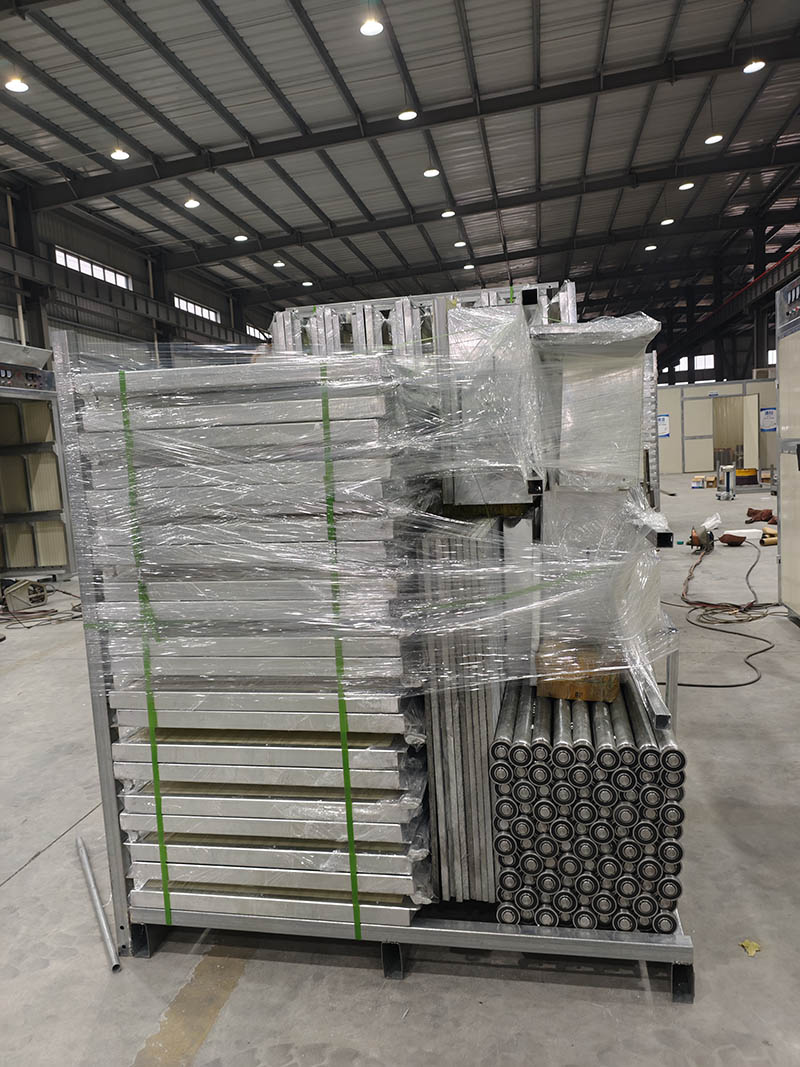

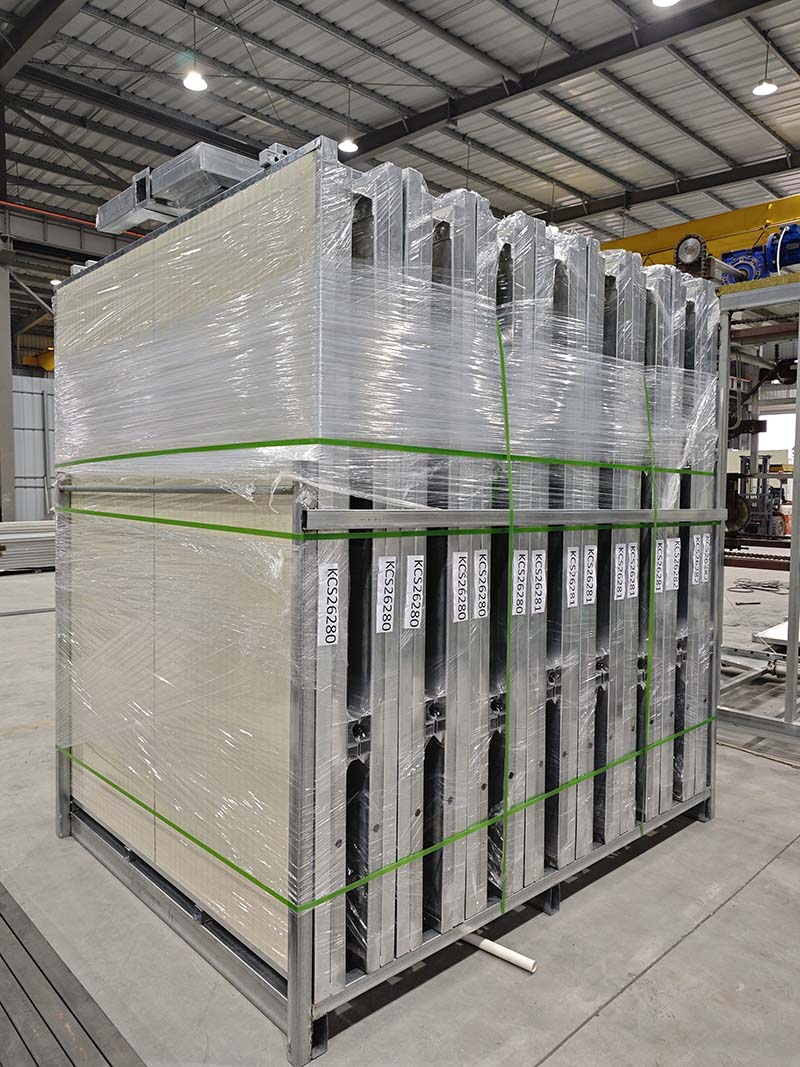

The Fully Disassembly Curing Room for Packaging Industry leaves our factory in compact, disassembled form.

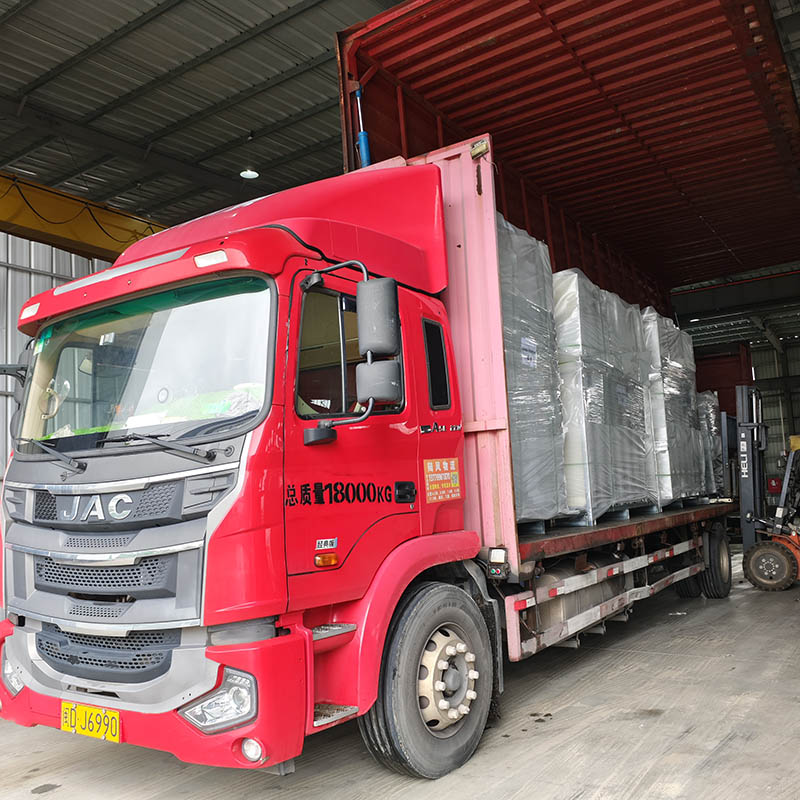

In this on-site shot, our team is loading precisely packed modules – wall panels, frames, and ducting – onto a flatbed truck. Each component is labeled and stacked according to the container loading plan. Whether you are shipping overseas or moving to a new workshop, the disassembled configuration ensures smooth transport and quick reassembly at your destination. Kechuang delivers not just equipment, but worry‑free logistics.
