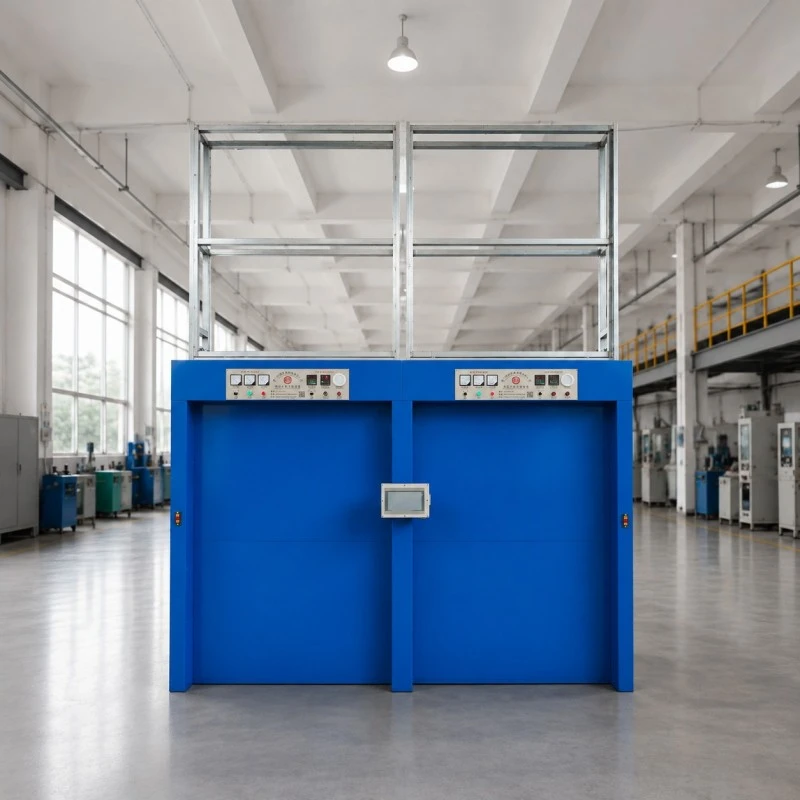

Fully Automatic Heavy Duty Curing Room

Kechuang Fully Automatic Heavy Duty Curing Room is an advanced industrial curing system integrating automation, digital management, and intelligent control. Equipped with a PLC and touchscreen control system, it enables precise monitoring and management throughout the entire curing process.
Designed for various film and material curing applications, this automated curing room upgrades traditional manual curing operations by integrating automatic material transfer, intelligent monitoring, and process control, helping manufacturers improve production efficiency and consistency.

Product Introduction

Kechuang Fully Automatic Heavy Duty Curing Room is developed for factories requiring efficient, traceable, and automated curing processes.
The equipment integrates a high-precision intelligent temperature control module that maintains curing conditions according to preset parameters. Through the visual monitoring interface, operators can track the real-time curing temperature and accumulated curing time of each material batch, ensuring every curing cycle is accurately managed.
When the preset curing time is completed, the system automatically activates sound and light alarms and performs automatic door opening and material transfer operations. The cured materials can be smoothly moved to the cooling rack without manual handling, creating a continuous connection between curing and cooling processes.
This fully automated workflow reduces manual operation errors, lowers labor intensity, and improves production efficiency for large-scale manufacturing.

Intelligent Digital Management System

Kechuang Fully Automatic Heavy Duty Curing Room is equipped with an ERP management system featuring Delta PLC and touchscreen control technology.
The system provides:
•Real-time curing and cooling quantity statistics
•Equipment operating status monitoring
•Production data visualization
•Digital process traceability
Supporting full communication operation, the equipment can connect with MES production management systems for real-time data interaction.
Multiple curing rooms can also be centrally controlled through communication functions, while remote monitoring, parameter adjustment, and equipment management are available for intelligent production lines.

Automated Material Handling for Higher Efficiency

Different from conventional curing rooms that require manual loading and unloading, Kechuang automatic curing room integrates multiple motorized systems:
•Automatic Translation System
Driven by motor and chain transmission structure, the system automatically transfers heavy material rolls with safety protection functions.
•Automatic Door Opening System
The electric door system enables automatic opening and closing operations, improving production convenience.
•Automatic Loading and Unloading System
The motor-driven chain transmission system allows materials to move smoothly between curing and cooling processes.
This integrated automation design helps reduce manual intervention and supports continuous production workflows.

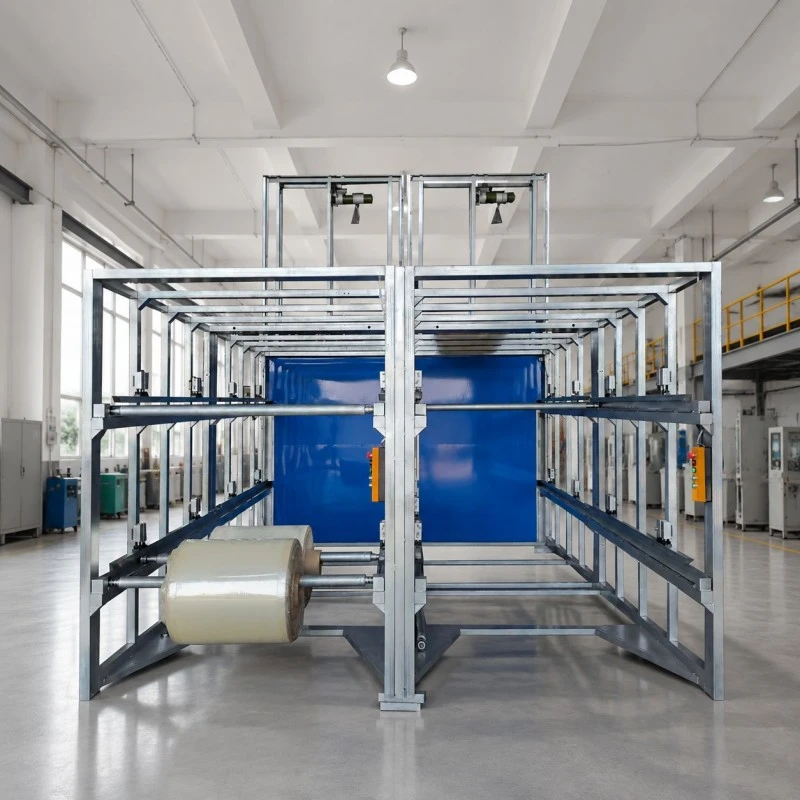

Heavy Duty Structure for Large-Scale Production

The curing room adopts a reinforced heavy-duty structure suitable for large material rolls and high-volume production.
Key structural features include:
•Heavy-duty chain translation track
•Four-layer material storage design
•50×50mm and 50×100mm galvanized steel pipe frame
•50mm rock wool color steel sandwich panel insulation
The equipment supports film rolls up to 800mm in diameter and 400kg in weight, providing stable support for demanding industrial curing applications.

Safety Protection and Intelligent Alarm System

Kechuang Fully Automatic Heavy Duty Curing Room integrates multiple safety protection functions to improve equipment reliability.
The system includes:
•Over-temperature protection
•Timed shutdown
•Timed exhaust
•Phase-loss protection
•Overload protection
•Intelligent alarm reminders
The alarm system provides real-time warnings for abnormal conditions such as temperature exceeding limits or process failures, helping operators identify issues quickly and maintain safe production.

Technical Specifications

Application Areas

Flexible Packaging and Composite Film Industry

Kechuang Fully Automatic Heavy Duty Curing Room is suitable for curing processes involving:
•Composite films
•Laminated materials
•Flexible packaging materials
•Industrial film products
The automated curing process helps improve production consistency and supports continuous large-scale manufacturing.

Intelligent Manufacturing Production Lines

With ERP management, MES communication compatibility, and remote monitoring capabilities, the equipment is suitable for factories upgrading toward:
•Automated production
•Digital process management
•Data-based manufacturing control

FAQ

1.What makes the Fully Automatic Heavy Duty Curing Room different from a standard curing room?
The main difference is the integrated automation system. The equipment can automatically control curing, open doors, transfer materials, and connect with cooling processes, reducing manual handling requirements.
2.Can the curing process be monitored in real time?
Yes. The PLC and touchscreen system allow operators to monitor curing temperature, curing time, equipment status, and production data in real time.
3.Does the equipment support MES integration?
Yes. The system supports full communication operation and can connect with MES production management systems for digital data exchange and traceability.
4.What is the maximum material roll capacity?
The equipment supports film rolls with a maximum diameter of 800mm, weight of 400kg, and width of 1300mm.
5.Can Kechuang customize the equipment size?
Yes. Kechuang provides customized dimensions according to customer production requirements and factory layout.
