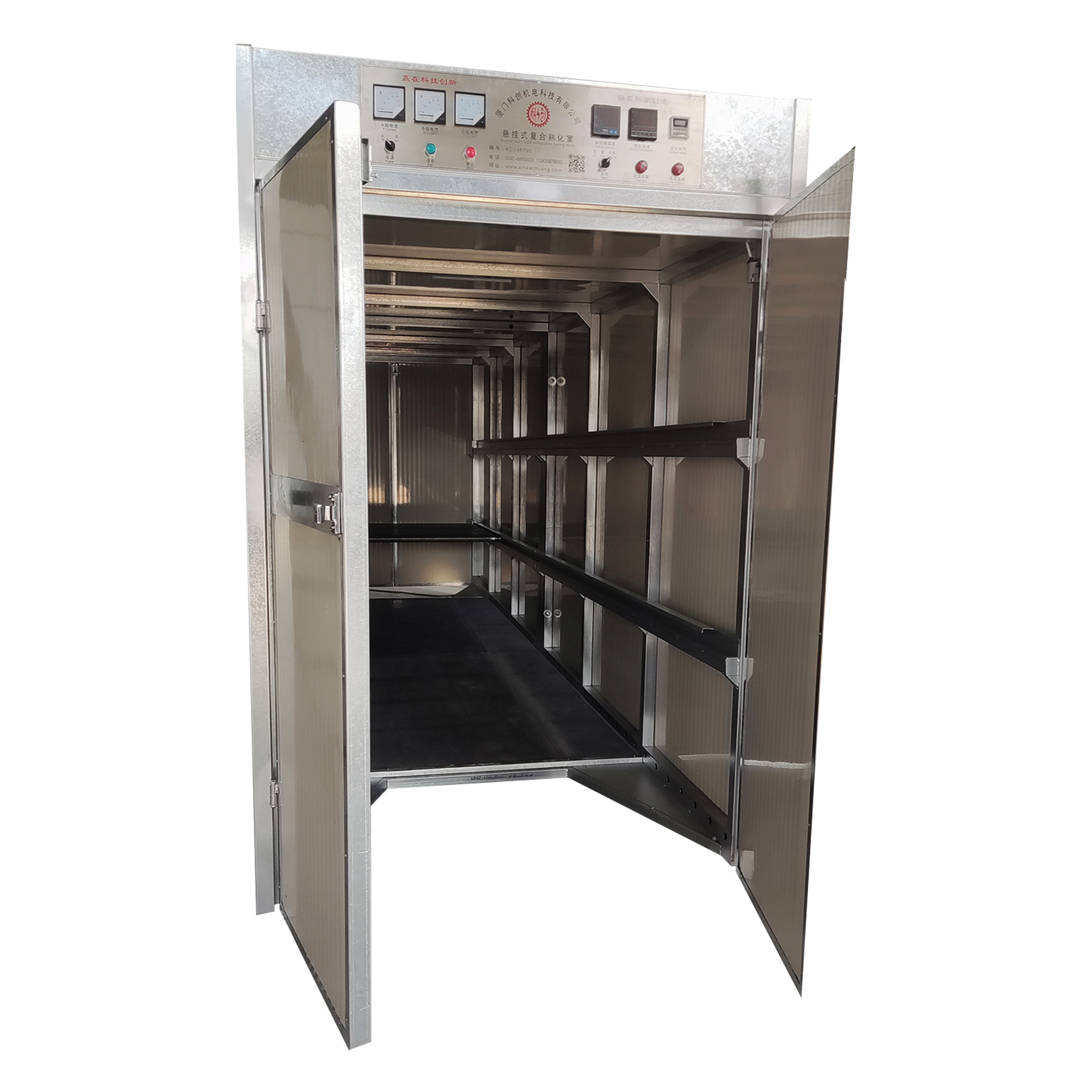

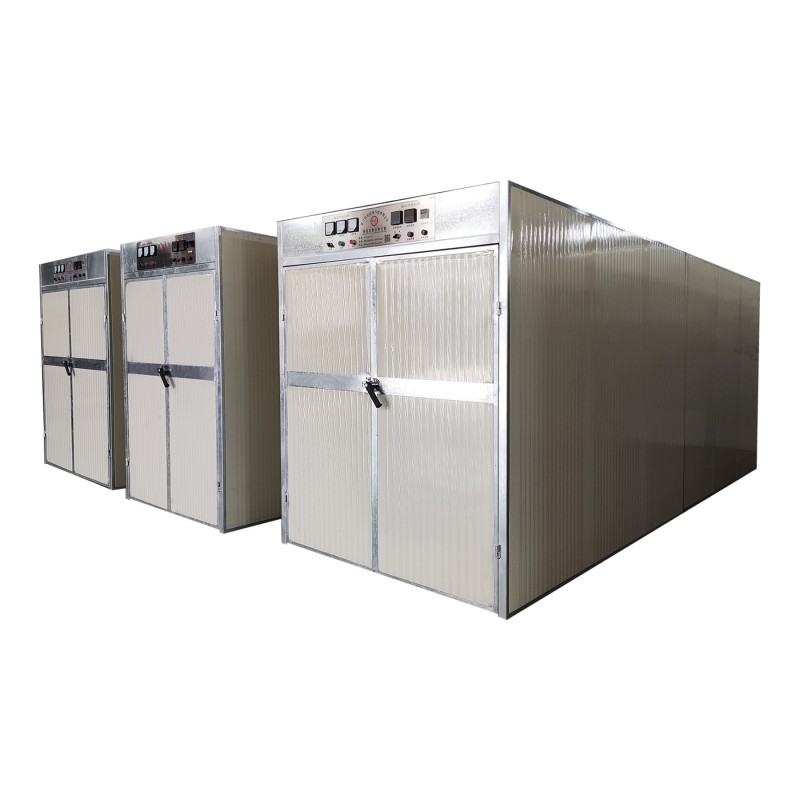

Economic Curing Chamber
The Economic Curing Chamber provides stable temperature control, offering a constant-temperature static curing environment for composite films. It effectively promotes the adhesion and curing of film composite layers, thoroughly resolving common issues such as wrinkling, delamination, and poor adhesion after film lamination, while significantly improving product composite quality. The equipment features a simple structure and convenient operation, requiring no complex commissioning and enabling standardized production right from the start.
Compared with high-end curing equipment, the Economic Curing Chamber fulfills basic curing functions while utilizing appropriate materials and components to reduce manufacturing costs, making it particularly suitable for small and medium-sized enterprises. The control system interface is clear and intuitive, allowing operators to master the operation methods after simple training and easily perform routine production tasks. Through the curing process in the Economic Curing Chamber, a strong bond is formed between the adhesive and the plastic film, improving the peel strength of the composite material and preventing delamination or glue failure during subsequent processing and use, thereby ensuring packaging integrity and product quality safety.
Technical Parameters
| Item | Specification |
|---|---|
| Max film roll size | φ600mm, weight 200kg, width 1200mm |
| Total power | 19KW, 380V, three-phase five-wire |
| Power cable | National standard 3×10+2×4, must be reliably grounded |
| Heating method | Electric heating, 1 set, multi-tube mode (12 tubes total), 9KW+9KW=18KW, separate high/low temperature. Heating system placed on top of the chamber. |
| Number of layers | 2 layers |
| Operating temperature | 40-80°C adjustable, temperature tolerance ±2°C |
| Circulating air system | 550W centrifugal fan, 1 unit, air out from bottom, air return from top |
| Chamber insulation material | 50mm rock wool color steel sandwich panel |
| Door frame | Galvanized sheet 2.0mm |
| Door panel | Color steel sandwich panel |
| Material loading/unloading | Front in, rear out; door operation convenient |
| Rail | C-type rail |
| Dimensions | Customizable according to customer requirements |
Application
The Economic Curing Chamber is primarily suitable for the curing treatment of plastic composite products, such as composite films used in food packaging, daily necessities packaging, pharmaceutical packaging, and other related fields.
FAQ
Q1: What are the main features?
A: The Economic Curing Chamber demonstrates ingenuity in cost control, effectively reducing operating costs through energy-efficient design while utilizing high-quality insulation materials to minimize heat loss. Paired with an intuitive PLC intelligent control system, users can easily complete settings and operations without complex training, further enhancing convenience and cost-effectiveness.
Q2: How does it save energy?
A: The Economic Curing Chamber adopts high-quality insulation panels such as rock wool color steel sandwich panels. Meanwhile, its built-in hot air circulation system ensures uniform heat distribution, effectively reducing heat loss and enabling precise temperature adjustment according to actual needs, thus avoiding unnecessary energy waste.
Q3: What maintenance precautions should be taken?
A: The equipment should be cleaned regularly, and the accuracy of the temperature control system should be checked to ensure normal operation. Additionally, the insulation performance should be inspected periodically.
Q4: What is the price of this simple-function plastic composite curing chamber?
A: Please contact Kechuang directly, and we will provide a reasonable price based on your required configuration.

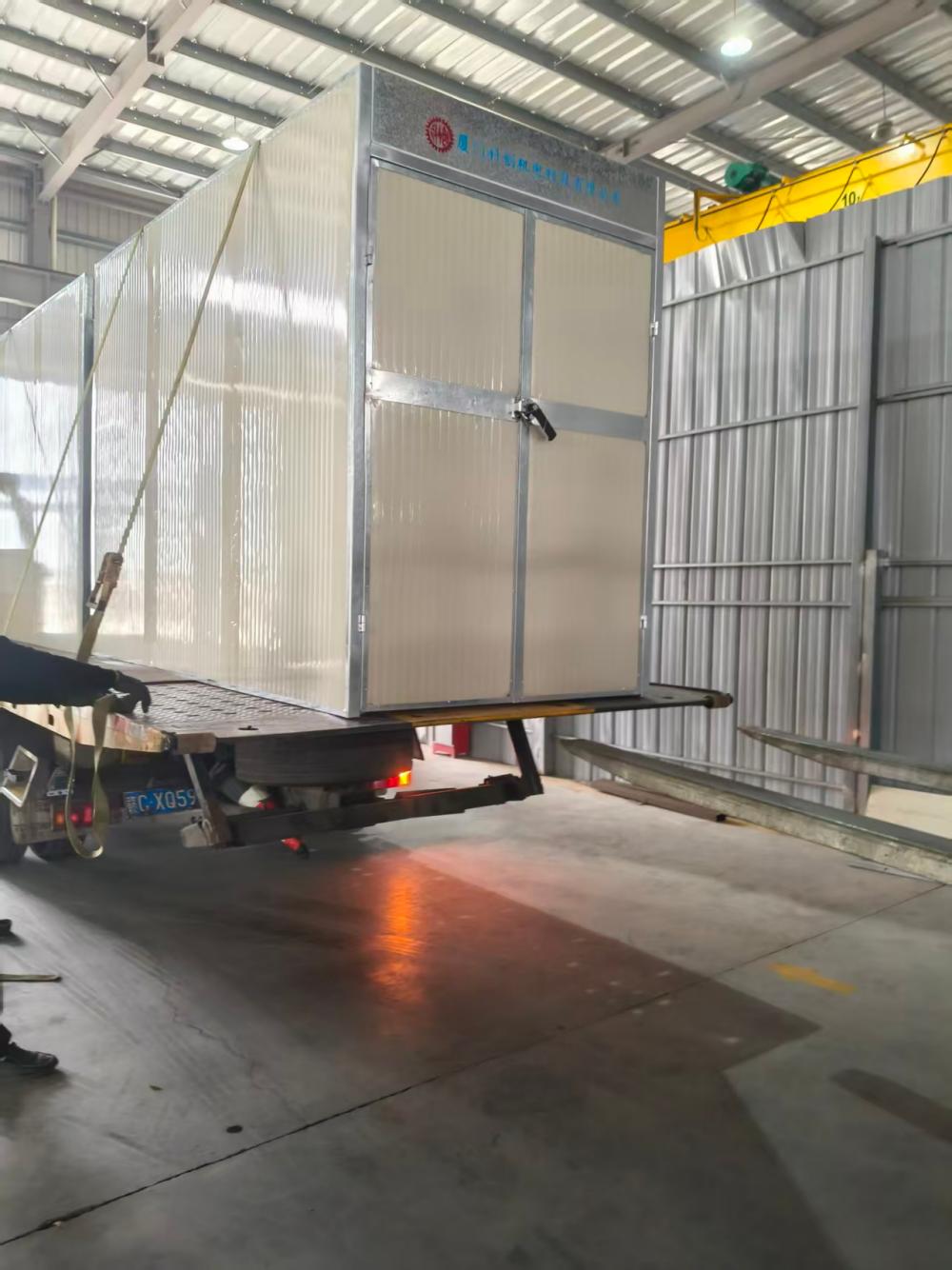

Onsite Shipment
After completing the final factory inspection process, this Economic Curing Chamber immediately entered the packaging operation stage. On the site, the main equipment was sequentially lifted onto heavy wooden supports, and the packaging personnel simultaneously carried out anti-collision corner installation, steel strip binding fixation, and moisture-proof film application operations. The special reinforcement packaging plan was carried out in an orderly manner throughout the process. With the completion of the loading of the last equipment, this batch of economic type curing rooms officially departed for the customer's production base. From the offline inspection to the loading and shipping, each link was closely connected and operated efficiently.
