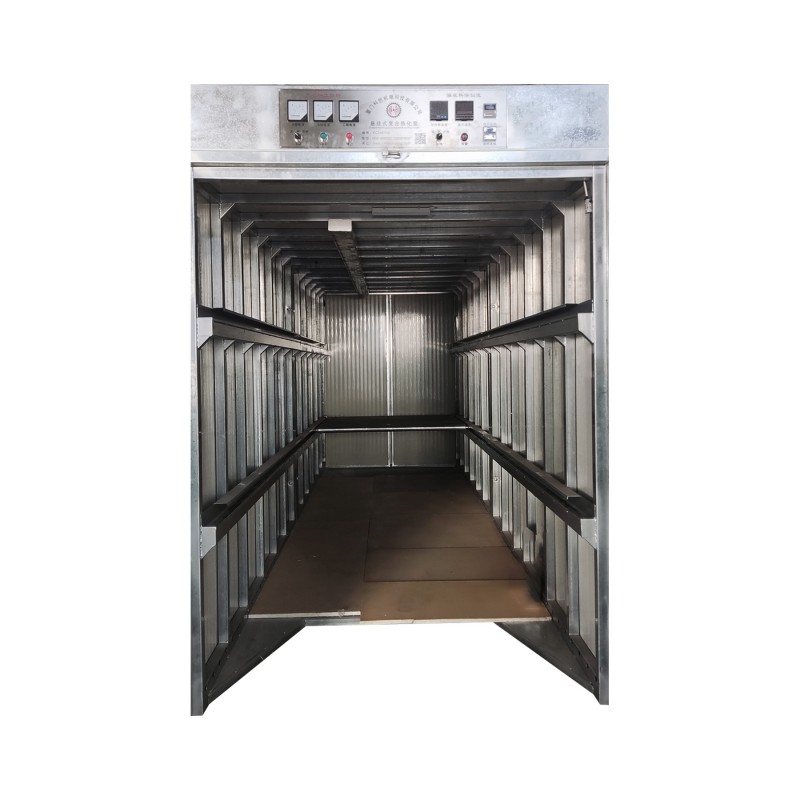

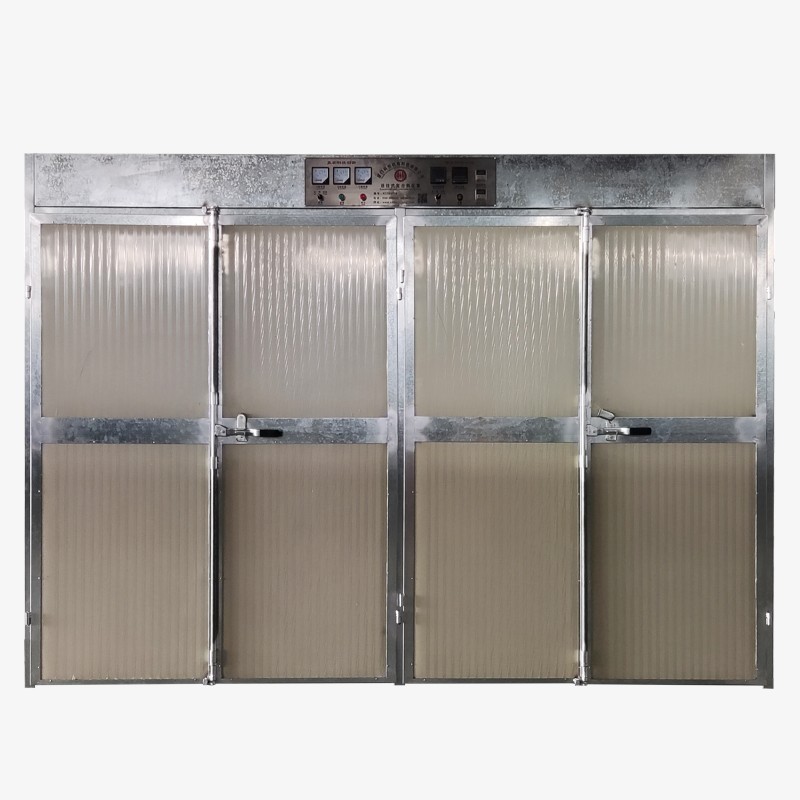

Dual Channel Single System Curing Chamber

It is a device specially used for curing composite films in the process of plastic composite production. This device precisely controls the temperature and time to make the adhesive main agent and curing agent in the composite film fully react, and removes the low-boiling residual solvent, ultimately improving the peel strength, heat sealing performance and chemical resistance of the composite film. Dual Channel Single System Curing Chamber integrates the functions of two single-channel curing chambers into one system, thereby achieving higher space utilization. It adopts a three-dimensional shelf design to make full use of space and increase material storage capacity. It is equipped with tracks and galvanized pipe threading shafts inside to facilitate the placement and transportation of materials such as film rolls.

1. Save space
Compact structure: Dual Channel Single System Curing Chamber integrates two curing channels into one device by sharing a control and operation system, saving site space.
2. Cost saving
Compared with purchasing two independent single-channel curing chambers, the dual-channel single system only needs one control system and one box, and the equipment cost is significantly reduced.
3. Reduce maintenance costs
Since the equipment shares a core operating system, daily maintenance and troubleshooting are simpler, reducing the manpower and time costs of maintenance.
4. Higher energy efficiency
It can handle two batches of maturation tasks at the same time, thereby reducing the energy consumption per unit product.
5. Improve cost-effectiveness
It can complete more maturation tasks in a shorter time, improve production efficiency, and accelerate the return on investment.

Circulation system: 1 1100W centrifugal fan, bottom air outlet, top exhaust, return air, heating system placed on the top of the box.
Exhaust system: 1 180W exhaust fan, two sets of time control (arbitrary setting: how long to exhaust, how long to stop).
Heating method: 1 set of electric heating, multi-tube mode (a total of 15 lines), electric heating 9KW+15KW=24KW, divided into high and low temperatures.
Electrical control: Schneider low-voltage electrical appliances, ultra-high temperature protection, timed shutdown, timed exhaust, phase loss protection, overload protection.
Maximum film roll placed: ￠800mm, weight 400kg, width 1180mm.
Specifications: Appearance: length 5890*width 2950*height 2500mm, indoor: length 5700*width 1180x2*2200mm. (Customizable according to customer needs)
Total power: 25KW (380V, three-phase five-wire, using national standard cable: 3*16+2*10, must be reliably grounded).
Box support steel: 50*50 and 50*100 galvanized pipes welded together, 480mm interval, double-channel single system heavy-duty semi-disassembly mode.
Box insulation material: 50mm rock wool color steel sandwich panel.
Material entry and exit method: forward and backward, easy to open and close the door. Door frame: made of galvanized sheet 2.0. Color steel sandwich panel door.
Random accessories: 1. 40 threading rollers (2-inch galvanized pipes, 4 6305 bearings each) 2. 1 bottle of glass glue.
Number of layers: two layers, C-type heavy-duty track, the lowest film roll center is 650mm from the ground. Track spacing is 850mm.
Using temperature: 40-80℃ adjustable, temperature error ±2℃.

Through the optimized design and integrated technology of Kechuang, Dual Channel Single System Curing Chamber not only saves space and cost, but also significantly improves the cost performance and production efficiency of the equipment. It is suitable for packaging composites in a variety of industries and is an important tool for improving the level of composite film curing process in modern industry.
According to the needs of different industries and customers, the Kechuang technical team has developed various curing chambers with different functions to provide customers with more customized options to meet diverse production needs.
