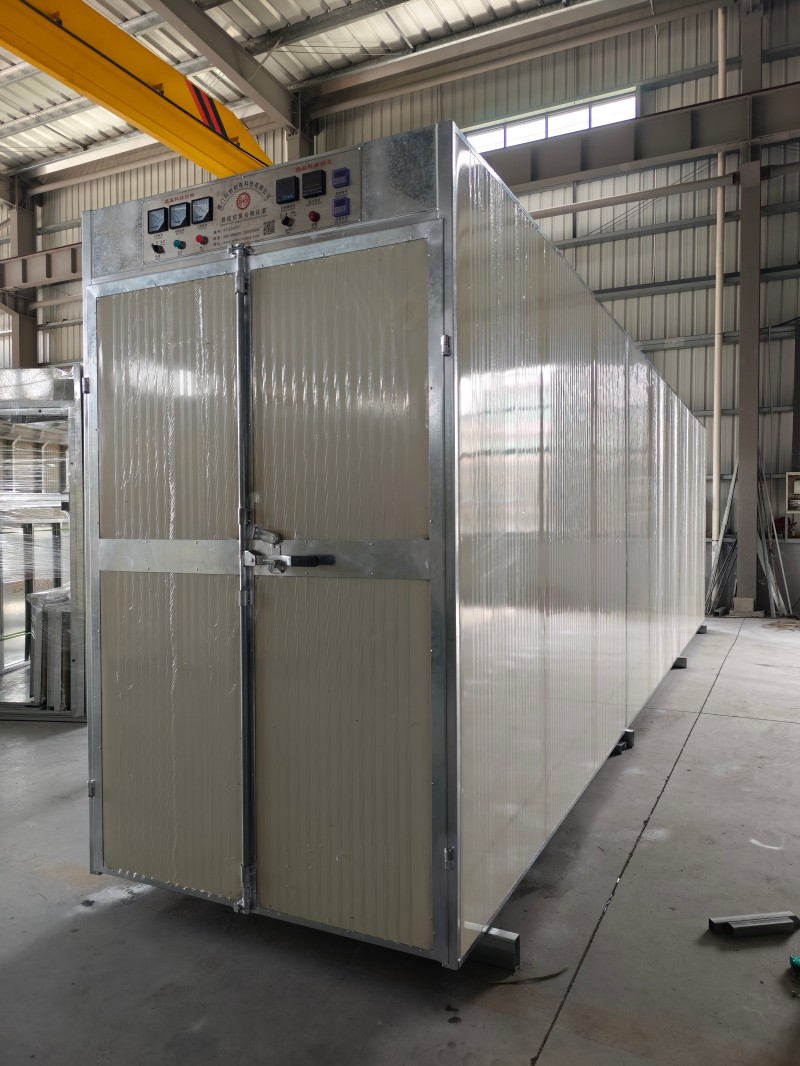

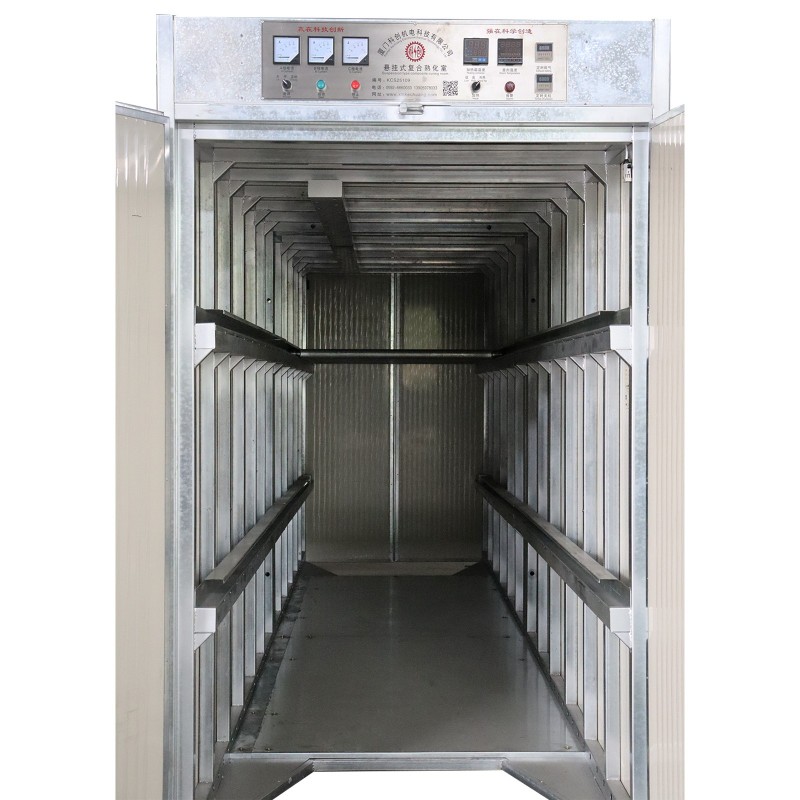

Constant Temperature Humidity Curing Room for Composite Film
Self-developed and manufactured by Kechuang from Xiamen, China, the Constant Temperature Humidity Curing Room for Composite Film features precise dual control of both temperature and humidity. It accurately locks the core parameters of internal temperature and humidity, ensuring a stable and controllable curing process, and has become a key supporting equipment for high quality production in the packaging industry.
The Kechuang Constant Temperature Humidity Curing Room for Composite Film creates a precise environmental regulation that fully promotes the cross linking reaction between the base agent and curing agent of polyurethane adhesives inside the composite film, and completely removes low boiling point residual solvents. It comprehensively improves the peel strength, heat seal performance, and chemical resistance of packaging composite bags. At the same time, it fundamentally avoids quality defects such as film cracking and poor adhesion caused by temperature and humidity fluctuations, ensuring consistent quality and reliability for batch production.
This curing room is equipped with a comprehensive safety protection system, covering electrical safety, operational safety, and structural safety, building a solid safety line for the entire curing process. It includes over temperature protection (real time temperature monitoring, automatic shutdown and alarm upon over temperature), over current protection, leakage protection, over voltage protection, and phase loss protection – fully covering electrical risks and preventing hazards from circuit faults. It also supports timed shutdown and timed exhaust intelligent control, automatically starting/stopping and orderly exhausting according to the process, avoiding misoperation and gas accumulation. A special anti drop protection structure is designed to be stable and reliable, preventing accidental material fall off and ensuring equipment and personal safety. With multiple protections and intelligent interlocking, the Constant Temperature Humidity Curing Room for Composite Film makes curing production safer, more stable, and more reliable.
What’s the Application Scenarios of the Constant Temperature Humidity Curing Room for Composite Film?
The Constant Temperature Humidity Curing Room for Composite Film has a wide range of applications. It is not only suitable for fields with extremely high hygiene standards and process precision, such as food packaging and pharmaceutical packaging – meeting the requirements of food packaging for boiling resistance and bacterial resistance, and pharmaceutical packaging for oxidation resistance and moisture resistance – but also precisely matches the production of various packaging composite bags that have special requirements for temperature and humidity. It adapts to the curing needs of composite films of different materials and specifications, providing flexible solutions for diverse packaging production. To meet the needs of domestic and international customers, Xiamen Kechuang has also developed refrigerated curing rooms and high temperature curing rooms, helping enterprises expand product categories and enhance product competitiveness.
Parameters
| Item | Specification |
| Operating temperature | 40 80°C adjustable, temperature tolerance ±2°C |
| Humidity control method | Humidifier + dehumidifier |
| Heating method | Electric heating, 1 set, multi tube mode (12 tubes total), 9KW + 9KW = 18KW, separate high/low temperature |
| Rail | C type rail |
| Number of layers | Two layers |
| Max film roll size | φ800mm, weight 400kg, width 1200mm |
| Box insulation material | 50mm rock wool color steel sandwich panel |
| Box frame steel | 50*50 and 50*100 galvanized steel pipe welded |
| Circuit protection | Over temperature protection, phase loss protection, overload protection |
| Electrical control | Schneider low voltage electrical components, timed shutdown, timed exhaust |
| Total power | 19KW, 380V, three phase five wire |
| Power cable | National standard 3*10+2*4, must be reliably grounded |
SOn-Site Shipping Real Shooting
>
A fully assembled curing room unit is being loaded onto a truck at our factory. Each component is securely fastened, and our team ensures that every shipment meets the highest quality standards. With reliable packaging and professional logistics support, your curing room will arrive safely and promptly – ready to enhance your production line.
